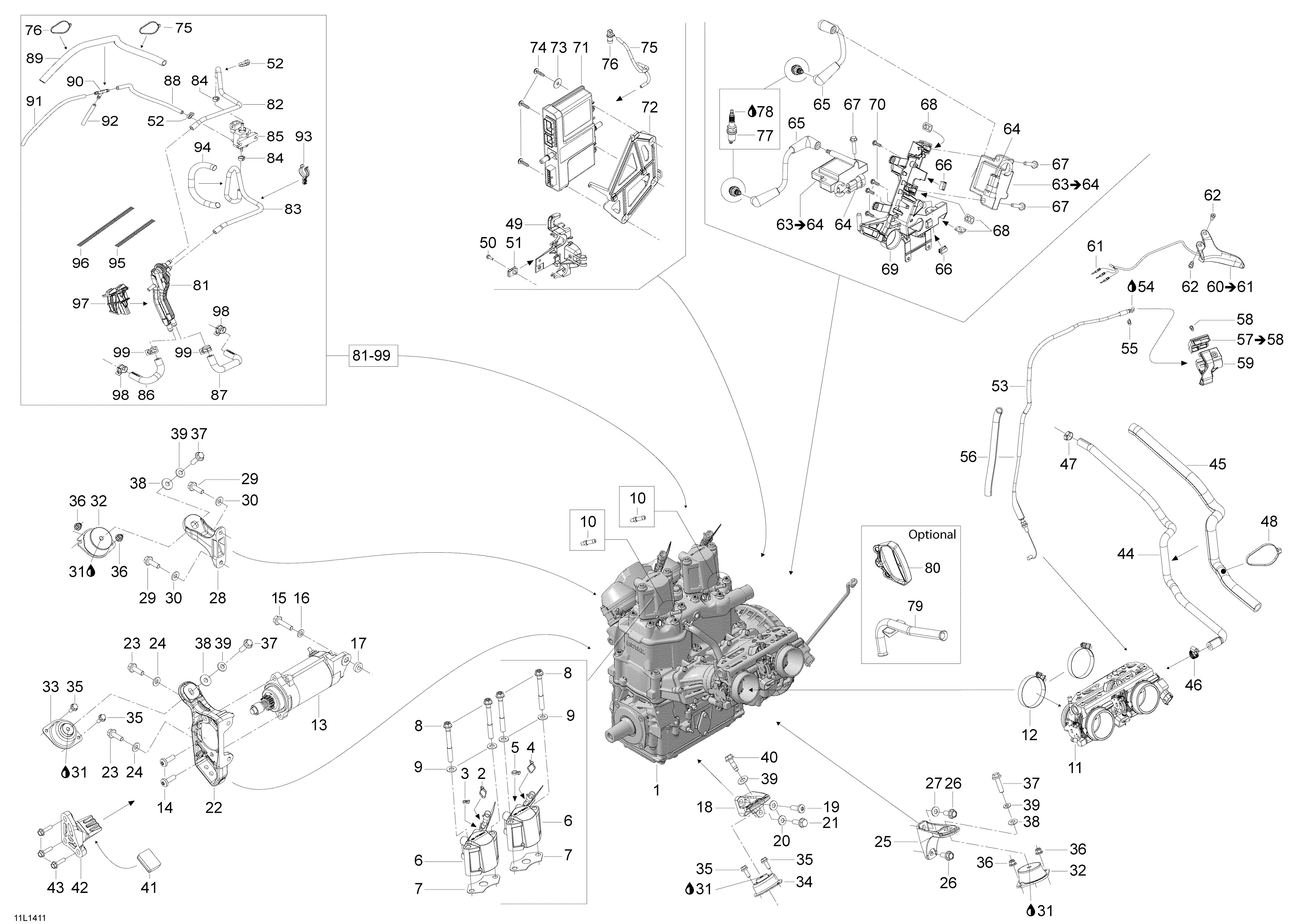

01- Engine And Engine Support для BRP Lynx Xtrim Commander 800 E-TEC - 2014
-
№АртикулНазвание
-
2293750002 Tie-Rap 142mmTie-Rap 142mm
-
3293750002 Tie-Rap 142mmTie-Rap 142mm
-
4293750002 Tie-Rap 142mmTie-Rap 142mm
-
5293750002 Tie-Rap 142mmTie-Rap 142mm
-
6512060795 Fuel Injector Ass'yFuel Injector Ass'y
-
7420430930 GasketGasket
-
8420441187 Flanged Torx Screw M10 x 90Flanged Torx Screw M10 x 90
-
9234001410 Flat Washer 10mmFlat Washer 10mm
-
10420924724 Hose NippleHose Nipple
-
11420889199 Throttle BodyThrottle Body
-
12512060943 ClampClamp
-
13515177389 Electric StarterElectric Starter
-
14250000248 Pan Screw M8 x 25Pan Screw M8 x 25
-
15207583544 Screw M8 x 35Screw M8 x 35
-
16250200008 Flat WasherFlat Washer
-
18512060478 Rear Support, PTORear Support, PTO
-
19250000248 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
22512060714 Front Support PTOFront Support PTO
-
23207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060559 Rear Support MAGRear Support MAG
-
26207582044 Hex. Flanged Screw M8 x 20, Scotch GripHex. Flanged Screw M8 x 20, Scotch Grip
-
27234281474 Conical Spring Washer M8Conical Spring Washer M8
-
28512060469 Front MAG SupportFront MAG Support
-
29207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
30234281474 Conical Spring Washer M8Conical Spring Washer M8
-
32512060729 Rubber MountRubber Mount
-
33512060387 Rubber MountRubber Mount
-
34512060448 Rubber MountRubber Mount
-
35207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
38503183200 Washer, YellowWasher, Yellow
-
39234281474 Conical Spring Washer M8Conical Spring Washer M8
-
40250000570 Hex. Screw M8Hex. Screw M8
-
41512060627 StopperStopper
-
42512060576 Stopper SupportStopper Support
-
43207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
44509000793 Formed Hose Output TBFormed Hose Output TB
-
45415080000 TubingTubing
-
46293650172 ClampClamp
-
47293650047 ClampClamp
-
48293750008 Tie-Rap 368mmTie-Rap 368mm
-
49512060298 Solenoid SupportSolenoid Support
-
50207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
51250000079 Extruded Panel Nut M5 x 0.8Extruded Panel Nut M5 x 0.8
-
52293750001 Tie Rap 94mmTie Rap 94mm
-
53512060633 Throttle CableThrottle Cable
-
54619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
55414274500 CirclipCirclip
-
56409901700 Tubing 9 mmTubing 9 mm
-
57512060859 Upper Housing. Includes 57 To 58Upper Housing. Includes 57 To 58
-
58414440800 Set Screw M8 x 10Set Screw M8 x 10
-
59512060860 Lower HousingLower Housing
-
60512060616 Throttle Handle Ass'y. Includes 60 To 62Throttle Handle Ass'y. Includes 60 To 62
-
61515175232 Male TerminalMale Terminal
-
62732601143 Flanged ScrewFlanged Screw
-
63512060877 Ignition Coil. Includes 63 To 64Ignition Coil. Includes 63 To 64
-
64710000568 HousingHousing
-
65512060094 Ignition Cable, 177mmIgnition Cable, 177mm
-
66710000992 ClipClip
-
67250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
68293100003 NutNut
-
69512060888 SupportSupport
-
70241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
71512060914 Calibrated Module E-TECCalibrated Module E-TEC
-
72512060858 Calibrated Module SupportCalibrated Module Support
-
73250200040 Flat WasherFlat Washer
-
74250000297 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
75415080100 LineLine
-
76414814100 Male ConnectorMale Connector
-
77415129484 Spark Plug (PFR7AB)Spark Plug (PFR7AB)
-
78619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
79512060828 Guide Tube Weld (Optional)Guide Tube Weld (Optional)
-
80512060136 Starter Grip (Optional)Starter Grip (Optional)
-
81512060692 ManifoldManifold
-
82415080200 Polyurethane Hose, 310 mmPolyurethane Hose, 310 mm
-
83415080200 Polyurethane Hose, 425 mmPolyurethane Hose, 425 mm
-
84293650043 ClampClamp
-
85512060950 Solenoid ValveSolenoid Valve
-
86512060695 HoseHose
-
87512060694 HoseHose
-
88270000374 Hose 4.3 mm, 220 mmHose 4.3 mm, 220 mm
-
89409901700 Tubing 9 mmTubing 9 mm
-
90293710068 T-FittingT-Fitting
-
91270000374 Hose 4.3 mm, 180 mmHose 4.3 mm, 180 mm
-
92270000374 Hose 4.3 mm, 50 mmHose 4.3 mm, 50 mm
-
93512060762 Clip Ass?yClip Ass?y
-
94415079900 Protector Tube, 175 mmProtector Tube, 175 mm
-
95512060814 Spring, 295 mmSpring, 295 mm
-
96512060807 Spring, 410 mmSpring, 410 mm
-
97512060822 SupportSupport
-
98293650214 Spring ClampSpring Clamp
-
99293650047 Crimp ClampCrimp Clamp
