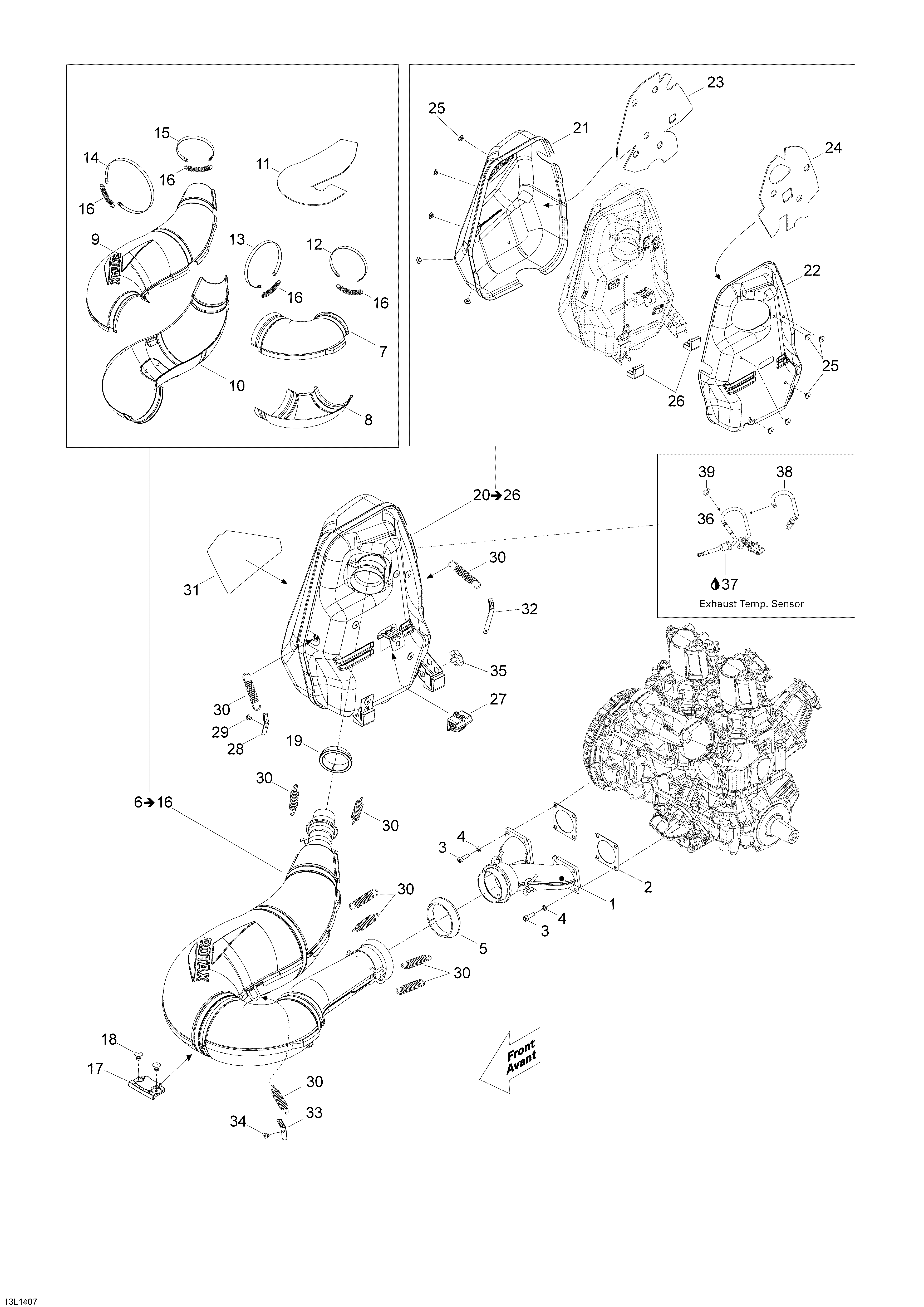

01- Exhaust System для BRP Lynx Xtrim Commander 600 E-TEC - 2014
-
№АртикулНазвание
-
1420673420 Exhaust ManifoldExhaust Manifold
-
1420673420 Exhaust ManifoldExhaust Manifold
-
1420673420 Exhaust ManifoldExhaust Manifold
-
1420673420 Exhaust ManifoldExhaust Manifold
-
2420850552 GasketGasket
-
2420850552 GasketGasket
-
2420850552 GasketGasket
-
2420850552 GasketGasket
-
3514054626 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
3514054626 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
3514054626 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
3514054626 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
4514053953 WasherWasher
-
4514053953 WasherWasher
-
4514053953 WasherWasher
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
5514053487 Exhaust GasketExhaust Gasket
-
5514053487 Exhaust GasketExhaust Gasket
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055027 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
6514055027 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
6514055027 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
6514055027 Tuned Pipe Ass'y. Includes 6 to 16Tuned Pipe Ass'y. Includes 6 to 16
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
9514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
9514054039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
9514054039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
9514054039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
11514054487 Insulating WoolInsulating Wool
-
11514054487 Insulating WoolInsulating Wool
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
12514054408 Retaining StrapRetaining Strap
-
12514054408 Retaining StrapRetaining Strap
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
16514053643 SpringSpring
-
16514053643 SpringSpring
-
16514053643 SpringSpring
-
17514054275 BumperBumper
-
17514054275 BumperBumper
-
17514054275 BumperBumper
-
17514054275 BumperBumper
-
18293150103 Pop RivetPop Rivet
-
18293150103 Pop RivetPop Rivet
-
18293150103 Pop RivetPop Rivet
-
18293150103 Pop RivetPop Rivet
-
19514054174 Exhaust GasketExhaust Gasket
-
19514054174 Exhaust GasketExhaust Gasket
-
19514054174 Exhaust GasketExhaust Gasket
-
19514054174 Exhaust GasketExhaust Gasket
-
20514055025 Muffler Ass'y. Includes 20 to 26Muffler Ass'y. Includes 20 to 26
-
20514055025 Muffler Ass'y. Includes 20 to 26Muffler Ass'y. Includes 20 to 26
-
20514055025 Muffler Ass'y. Includes 20 to 26Muffler Ass'y. Includes 20 to 26
-
20514055025 Muffler Ass'y. Includes 20 to 26Muffler Ass'y. Includes 20 to 26
-
21514054985 RH DeflectorRH Deflector
-
21514054985 RH DeflectorRH Deflector
-
21514054985 RH DeflectorRH Deflector
-
21514054985 RH DeflectorRH Deflector
-
22514054528 LH DeflectorLH Deflector
-
22514054528 LH DeflectorLH Deflector
-
22514054528 LH DeflectorLH Deflector
-
22514054528 LH DeflectorLH Deflector
-
23514054298 RH Insulating WoolRH Insulating Wool
-
23514054298 RH Insulating WoolRH Insulating Wool
-
23514054298 RH Insulating WoolRH Insulating Wool
-
23514054298 RH Insulating WoolRH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
25390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
25390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
25390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
25390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
26514054529 Lower StopperLower Stopper
-
26514054529 Lower StopperLower Stopper
-
26514054529 Lower StopperLower Stopper
-
26514054529 Lower StopperLower Stopper
-
27514054606 Upper StopperUpper Stopper
-
27514054606 Upper StopperUpper Stopper
-
27514054606 Upper StopperUpper Stopper
-
27514054606 Upper StopperUpper Stopper
-
28514054974 Spring BracketSpring Bracket
-
28514054974 Spring BracketSpring Bracket
-
28514054974 Spring BracketSpring Bracket
-
28514054974 Spring BracketSpring Bracket
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30415107100 SpringSpring
-
30415107100 SpringSpring
-
30415107100 SpringSpring
-
30415107100 SpringSpring
-
31514054488 Reflective SheetReflective Sheet
-
31514054488 Reflective SheetReflective Sheet
-
31514054488 Reflective SheetReflective Sheet
-
31514054488 Reflective SheetReflective Sheet
-
32514054616 Spring BracketSpring Bracket
-
32514054616 Spring BracketSpring Bracket
-
32514054616 Spring BracketSpring Bracket
-
32514054616 Spring BracketSpring Bracket
-
33514054975 Spring BracketSpring Bracket
-
33514054975 Spring BracketSpring Bracket
-
33514054975 Spring BracketSpring Bracket
-
33514054975 Spring BracketSpring Bracket
-
34293150147 RivetRivet
-
34293150147 RivetRivet
-
34293150147 RivetRivet
-
34293150147 RivetRivet
-
35514053654 Bumper rubberBumper rubber
-
35514053654 Bumper rubberBumper rubber
-
35514053654 Bumper rubberBumper rubber
-
35514053654 Bumper rubberBumper rubber
-
36514054856 Temp SensorTemp Sensor
-
36514054856 Temp SensorTemp Sensor
-
36514054856 Temp SensorTemp Sensor
-
36514054856 Temp SensorTemp Sensor
-
37619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
37619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
37619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
37619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
38515175442 Protector TubeProtector Tube
-
38515175442 Protector TubeProtector Tube
-
38515175442 Protector TubeProtector Tube
-
38515175442 Protector TubeProtector Tube
-
39293750001 Tie Rap 94mmTie Rap 94mm
-
39293750001 Tie Rap 94mmTie Rap 94mm
-
39293750001 Tie Rap 94mmTie Rap 94mm
-
39293750001 Tie Rap 94mmTie Rap 94mm
