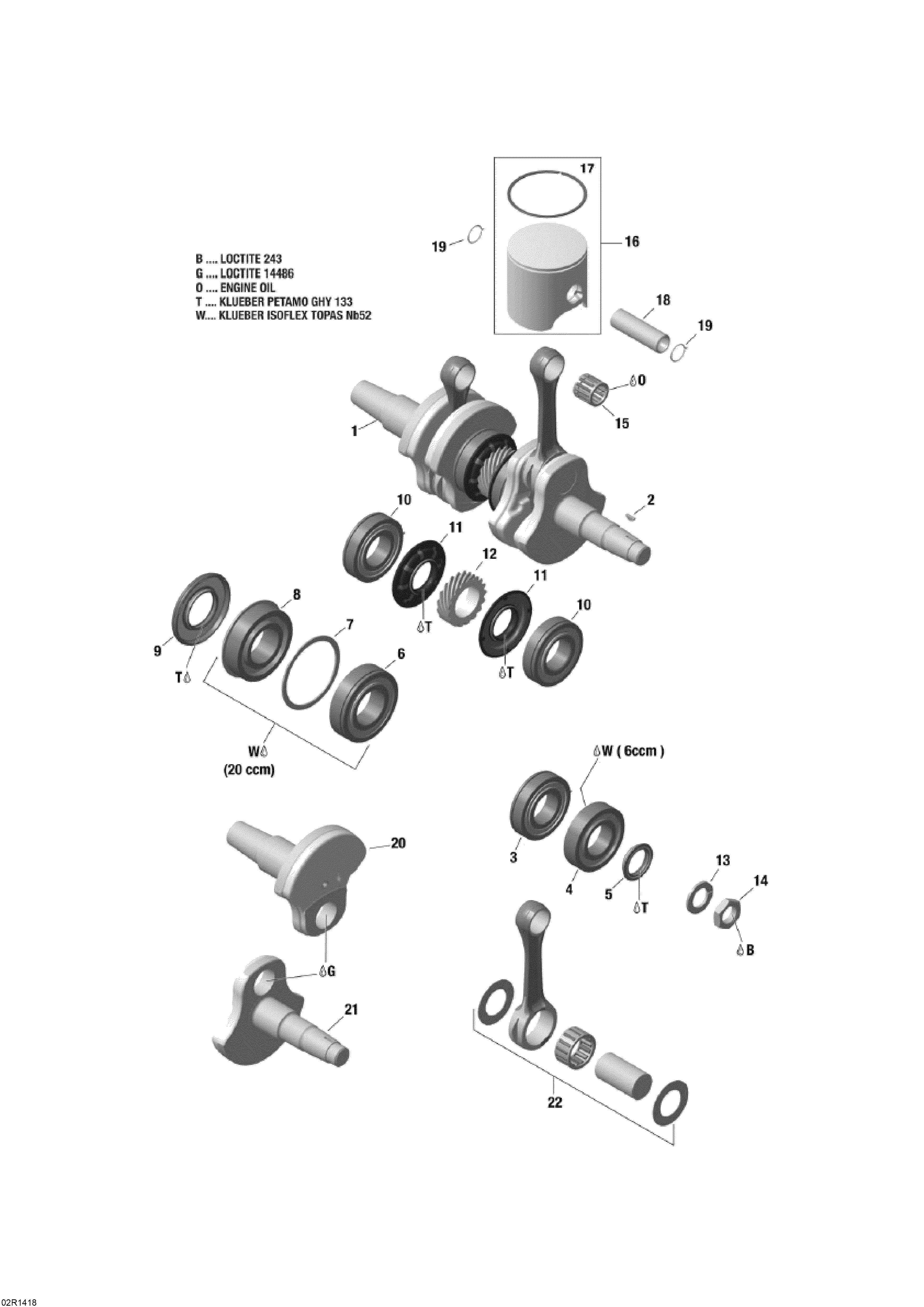

01- Crankshaft And Pistons для BRP Lynx Rave RE 800R E-TEC - 2014

  • №
    Артикул
    Название
  • 1
    420893480 Crankshaft Ass?y. Includes 1 To 12
    Crankshaft Ass?y. Includes 1 To 12
  • 2
    420246015 Woodruff Key
    Woodruff Key
  • 3
    420832175 Ball Bearing
    Ball Bearing
  • 4
    420832575 Ball Bearing
    Ball Bearing
  • 5
    420931795 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 6
    420832602 Ball Bearing
    Ball Bearing
  • 7
    420926190 Washer
    Washer
  • 8
    420832702 Ball Bearing
    Ball Bearing
  • 9
    420931284 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 10
    420832175 Ball Bearing
    Ball Bearing
  • 11
    420931455 Oil Seal. Included In Gasket Kit
    Oil Seal. Included In Gasket Kit
  • 12
    420834565 Central Gear
    Central Gear
  • 13
    420945759 Lock Washer, 22 mm
    Lock Washer, 22 mm
  • 14
    420842239 Hex. Nut, M22 X 1.5. Tightening Torque 120-130 Nm
    Hex. Nut, M22 X 1.5. Tightening Torque 120-130 Nm
  • 15
    420832030 Needle Bearing
    Needle Bearing
  • 16
    420893436 Piston Ass'y, 81.852 mm. Includes 16 To 17
    Piston Ass'y, 81.852 mm. Includes 16 To 17
  • 17
    420815416 Semi-Trapez Ring
    Semi-Trapez Ring
  • 18
    420916480 Piston Pin
    Piston Pin
  • 19
    420845467 Piston Circlip. Included In Gasket Kit
    Piston Circlip. Included In Gasket Kit
  • 22
    420892568 Rod Repair Kit, MAG Side
    Rod Repair Kit, MAG Side
  • 22
    420892569 Rod Repair Kit, PTO Side
    Rod Repair Kit, PTO Side
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • G
    619600012 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • T
    619600023 Grease, 400g
    Grease, 400g
  • W
    619600026 Isoflex Grease, 400g
    Isoflex Grease, 400g
