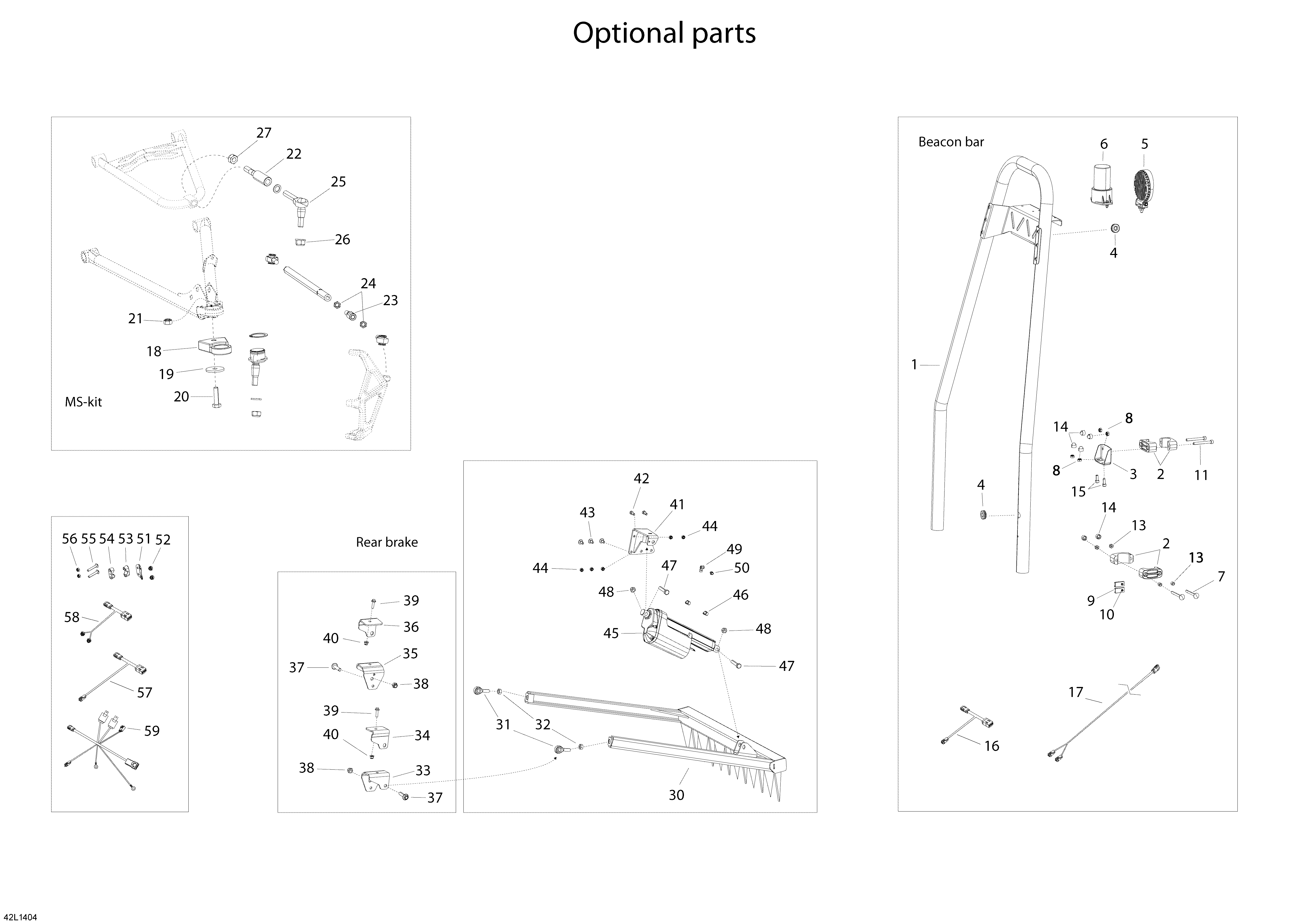

11- Optional для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2014

  • №
    Артикул
    Название
  • 1
    520001337 BEACON BAR PREASSEMBLY
    BEACON BAR PREASSEMBLY
  • 2
    520001141 BEACON BAR HALF FASTENER
    BEACON BAR HALF FASTENER
  • 3
    520001202 BEACON BAR FASTENING PLATE
    BEACON BAR FASTENING PLATE
  • 4
    517303756 GROMMET
    GROMMET
  • 5
    520001293 WORKING LIGHT LED
    WORKING LIGHT LED
  • 6
    520001294 BEACON LIGHT ORANGE LED
    BEACON LIGHT ORANGE LED
  • 7
    207652044 SCREW-HEX.FLANGE DIN.6921
    SCREW-HEX.FLANGE DIN.6921
  • 8
    233251414 NUT-FLANGE ELASTIC DIN.6926
    NUT-FLANGE ELASTIC DIN.6926
  • 9
    270000141 CLIP
    CLIP
  • 10
    293150144 RIVET STAVEX *STAVEX RIVET
    RIVET STAVEX *STAVEX RIVET
  • 11
    207788044 BOLT-CARRIAGE DIN.603
    BOLT-CARRIAGE DIN.603
  • 12
    510005735 SLEEVE 8,6 MM
    SLEEVE 8,6 MM
  • 13
    232581434 NUT-STOP ELASTIC DIN.985
    NUT-STOP ELASTIC DIN.985
  • 14
    28056 COVER
    COVER
  • 15
    205082044 SCREW-SOCKET HD.DIN.912
    SCREW-SOCKET HD.DIN.912
  • 16
    515177364 ACCESSORY HARNESS
    ACCESSORY HARNESS
  • 17
    515177455 LIGHT / BEACON HARNESS
    LIGHT / BEACON HARNESS
  • 18
    505073304 LOWER ARM EXTENSION
    LOWER ARM EXTENSION
  • 19
    505073305 WASHER
    WASHER
  • 20
    207004044 SCREW-HEX.CAP DIN.931
    SCREW-HEX.CAP DIN.931
  • 21
    232500416 NUT-STOP ELASTIC THIN DIN.985
    NUT-STOP ELASTIC THIN DIN.985
  • 22
    505073306 UPPER ARM EXTENSION
    UPPER ARM EXTENSION
  • 23
    506152609 TIEROD EXTENSION
    TIEROD EXTENSION
  • 24
    732610010 NUT-JAM HEXAGONAL RH.
    NUT-JAM HEXAGONAL RH.
  • 25
    505073308 BALL JOINT
    BALL JOINT
  • 26
    250100089 NUT M12
    NUT M12
  • 27
    250100088 NUT M10
    NUT M10
  • 28
    232500416 NUT-STOP ELASTIC THIN DIN.985
    NUT-STOP ELASTIC THIN DIN.985
  • 29
    233201414 NUT-FLANGE ELASTIC DIN.6926
    NUT-FLANGE ELASTIC DIN.6926
  • 30
    520001166 REAR BRAKE ASSEMBLY
    REAR BRAKE ASSEMBLY
  • 31
    520001200 Rod end
    Rod end
  • 32
    250100045 Nut
    Nut
  • 33
    520001198 BRAKE FASTENING BRACKET LH
    BRAKE FASTENING BRACKET LH
  • 34
    520001320 BRAKE FASTENING BRACKET SUPPORT LH
    BRAKE FASTENING BRACKET SUPPORT LH
  • 35
    520001199 BRAKE FASTENING BRACKET RH
    BRAKE FASTENING BRACKET RH
  • 36
    520001321 BRAKE FASTENING BRACKET SUPPORT RH
    BRAKE FASTENING BRACKET SUPPORT RH
  • 37
    207624544 SCREW-HEX.FLANGE DIN.6921
    SCREW-HEX.FLANGE DIN.6921
  • 38
    232521414 NUT-STOP ELASTIC DIN.985
    NUT-STOP ELASTIC DIN.985
  • 39
    207683034 SCREW-HEX.FLANGE DIN.6921
    SCREW-HEX.FLANGE DIN.6921
  • 40
    233281434 NUT-FLANGE ELASTIC DIN.6926
    NUT-FLANGE ELASTIC DIN.6926
  • 41
    520001177 ENGINE UPPER BRACKET PAINTED
    ENGINE UPPER BRACKET PAINTED
  • 42
    207182034 SCREW-HEX.CAP DIN.933
    SCREW-HEX.CAP DIN.933
  • 43
    207782044 BOLT-CARRIAGE DIN.603
    BOLT-CARRIAGE DIN.603
  • 44
    232581434 NUT-STOP ELASTIC DIN.985
    NUT-STOP ELASTIC DIN.985
  • 45
    520001201 LINEAR ACTUATOR
    LINEAR ACTUATOR
  • 46
    520001235 CABLE HOLDER
    CABLE HOLDER
  • 47
    207125534 SCREW-HEX.CAP DIN.933
    SCREW-HEX.CAP DIN.933
  • 48
    232521414 NUT-STOP ELASTIC DIN.985
    NUT-STOP ELASTIC DIN.985
  • 49
    705600459 CLAMP
    CLAMP
  • 50
    210261040 SCREW-FORMING HEX.HD.FL.DIN.7500D
    SCREW-FORMING HEX.HD.FL.DIN.7500D
  • 51
    520001197 SWITCH BRACKET
    SWITCH BRACKET
  • 52
    515177436 RUBBER COVER FOR PUSH BUTTON
    RUBBER COVER FOR PUSH BUTTON
  • 53
    506152395 SUPPORT GUIDON *STEERING SUPPORT
    SUPPORT GUIDON *STEERING SUPPORT
  • 54
    506152610 STEERING BAR SUPPORT MACHINED
    STEERING BAR SUPPORT MACHINED
  • 55
    250000298 TORX TRUSS M/S M8 X 50
    TORX TRUSS M/S M8 X 50
  • 56
    232581434 NUT-STOP ELASTIC DIN.985
    NUT-STOP ELASTIC DIN.985
  • 57
    520001291 CABLE FOR LINEAR ACTUATOR
    CABLE FOR LINEAR ACTUATOR
  • 58
    515177489 ACCESSORY HARNESS SLOPE CONTROL
    ACCESSORY HARNESS SLOPE CONTROL
  • 59
    515177365 ACCESSORY HARNESS
    ACCESSORY HARNESS
