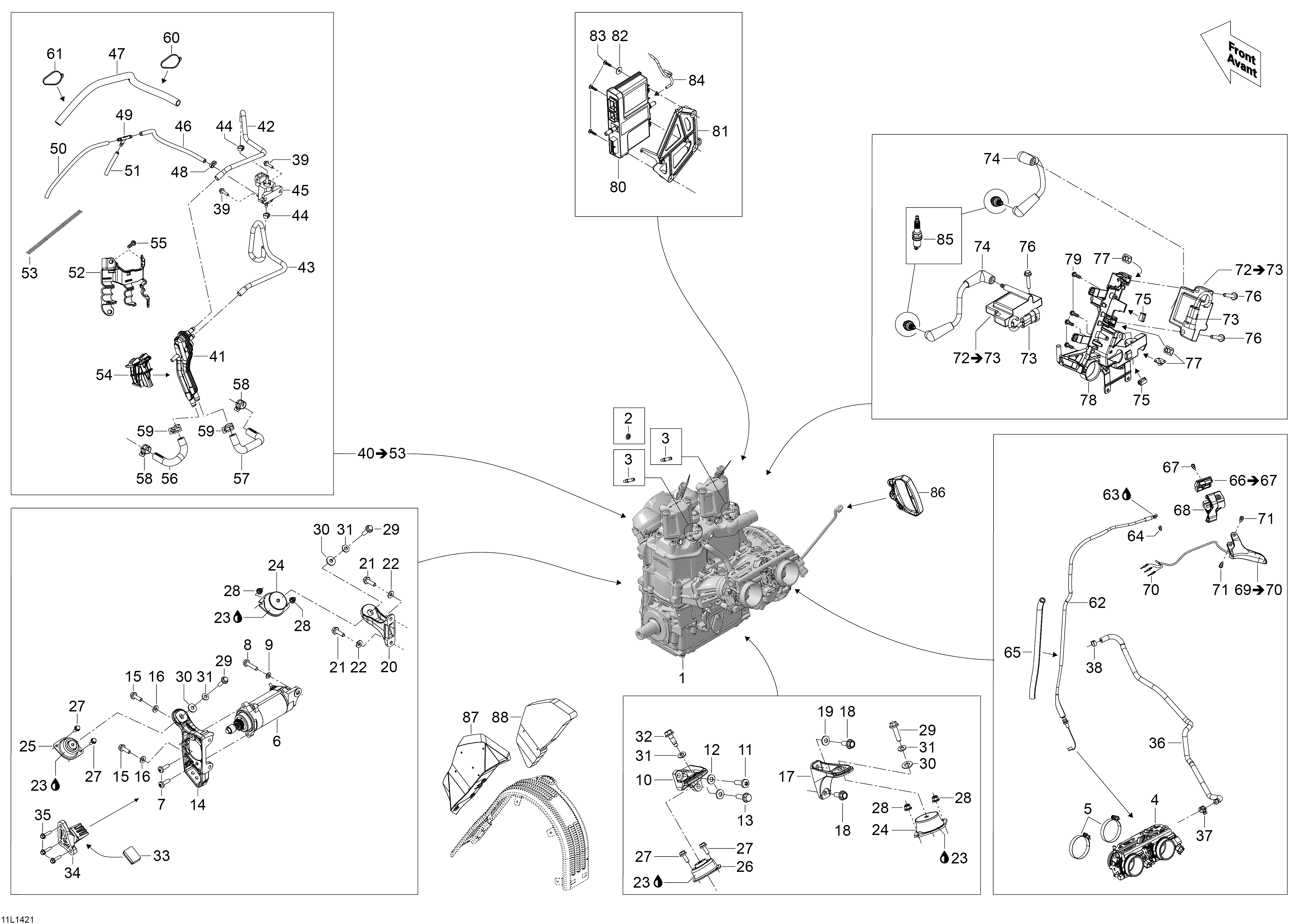

01- Engine And Engine Support для BRP Lynx BoonDocker 800R E-TEC - 2014

  • №
    Артикул
    Название
  • 2
    732610072 Push Nut
    Push Nut
  • 3
    420924724 Hose Nipple
    Hose Nipple
  • 4
    420889199 Throttle Body
    Throttle Body
  • 5
    512060943 Clamp
    Clamp
  • 6
    515177389 Electric Starter. (Electrical Start)
    Electric Starter. (Electrical Start)
  • 7
    250000248 Pan HD. Torx Screw M8 x 25. (Electrical Start)
    Pan HD. Torx Screw M8 x 25. (Electrical Start)
  • 8
    207583544 Hex. Flange Screw M8 x 35. (Electrical Start)
    Hex. Flange Screw M8 x 35. (Electrical Start)
  • 9
    250200008 Flat Washer M8. (Electrical Start)
    Flat Washer M8. (Electrical Start)
  • 10
    512060478 Rear Support PTO
    Rear Support PTO
  • 11
    250000248 Torx Screw M8 x 25, Scotch Grip
    Torx Screw M8 x 25, Scotch Grip
  • 12
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 13
    207582586 Hex. Flanged Screw M8 x 25, Scotch Grip
    Hex. Flanged Screw M8 x 25, Scotch Grip
  • 14
    512060714 Front Support PTO
    Front Support PTO
  • 15
    207582586 Hex. Flanged Screw M8 x 25, Scotch Grip
    Hex. Flanged Screw M8 x 25, Scotch Grip
  • 16
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 17
    512060559 Rear Support MAG
    Rear Support MAG
  • 18
    207582044 Hex. Flanged Screw M8 x 20, Scotch Grip
    Hex. Flanged Screw M8 x 20, Scotch Grip
  • 19
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 20
    512060469 Front Support MAG
    Front Support MAG
  • 21
    207582586 Hex. Flanged Screw M8 x 25, Scotch Grip
    Hex. Flanged Screw M8 x 25, Scotch Grip
  • 22
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 24
    512060729 Rubber Mount
    Rubber Mount
  • 25
    512060387 Rubber Mount
    Rubber Mount
  • 26
    512060448 Rubber Mount
    Rubber Mount
  • 27
    207561644 Hex. Flanged Screw M6 x 16, Scotch Grip
    Hex. Flanged Screw M6 x 16, Scotch Grip
  • 28
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 29
    207683044 Hex. Flanged Screw M8 x 30
    Hex. Flanged Screw M8 x 30
  • 30
    503183200 Washer, Yellow
    Washer, Yellow
  • 31
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 32
    250000570 Hex. Screw M8
    Hex. Screw M8
  • 33
    512060766 Stopper
    Stopper
  • 34
    512060576 Stopper Support
    Stopper Support
  • 35
    207562544 Hex. Flanged Screw M6 x 25, Scotch Grip
    Hex. Flanged Screw M6 x 25, Scotch Grip
  • 36
    512060944 Formed Hose
    Formed Hose
  • 37
    293650172 Clamp
    Clamp
  • 38
    293650046 Crimp Clamp
    Crimp Clamp
  • 39
    241151640 Hex. Flanged Screw K50 x 16
    Hex. Flanged Screw K50 x 16
  • 41
    512060692 Manifold
    Manifold
  • 42
    415080200 Hose
    Hose
  • 43
    415080200 Hose
    Hose
  • 44
    293650234 Clamp
    Clamp
  • 45
    512060774 Solenoid Valve
    Solenoid Valve
  • 46
    270000374 Hose
    Hose
  • 47
    409901700 Tubing
    Tubing
  • 48
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 49
    293710068 T-Fitting
    T-Fitting
  • 50
    270000374 Hose
    Hose
  • 51
    270000374 Hose
    Hose
  • 52
    512060827 Hose Support
    Hose Support
  • 53
    512060930 Spring
    Spring
  • 54
    512060822 Manifold Support
    Manifold Support
  • 55
    210251180 Forming Screw M5 x 11
    Forming Screw M5 x 11
  • 56
    512060695 Hose
    Hose
  • 57
    512060694 Hose
    Hose
  • 58
    293650214 Spring Clamp
    Spring Clamp
  • 59
    293650047 Crimp Clamp
    Crimp Clamp
  • 60
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 61
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 62
    512060633 Throttle Cable
    Throttle Cable
  • 63
    619600021 Dielectric Grease, 75ml
    Dielectric Grease, 75ml
  • 64
    414274500 Circlip
    Circlip
  • 65
    409901700 Tubing
    Tubing
  • 66
    512060859 Upper Housing. Includes 66 To 67
    Upper Housing. Includes 66 To 67
  • 67
    414440800 Set Screw M8 x 10
    Set Screw M8 x 10
  • 68
    512060860 Lower Housing
    Lower Housing
  • 69
    512060815 Throttle Handle Ass'y. Includes 69 To 70
    Throttle Handle Ass'y. Includes 69 To 70
  • 70
    515175232 Male Terminal
    Male Terminal
  • 71
    732601143 Shoulder Screw
    Shoulder Screw
  • 72
    512060877 Ignition Coil. Includes 72 To 73
    Ignition Coil. Includes 72 To 73
  • 73
    710000568 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 73
    409012900 Male Terminal
    Male Terminal
  • 74
    512060094 Ignition Cable, 177 mm
    Ignition Cable, 177 mm
  • 75
    710000992 Clip
    Clip
  • 76
    250000253 Hex. Flange Screw M6 x 30
    Hex. Flange Screw M6 x 30
  • 77
    293100003 Nut M6
    Nut M6
  • 78
    512060888 Support
    Support
  • 79
    241151640 Hex. Flanged Screw K50 x 16
    Hex. Flanged Screw K50 x 16
  • 80
    512060914 Calibrated Module E-TEC
    Calibrated Module E-TEC
  • 81
    512060858 Calibrated Module Support
    Calibrated Module Support
  • 82
    250200040 Flat Washer
    Flat Washer
  • 83
    250000297 Truss Head Torx Screw K50 x 20
    Truss Head Torx Screw K50 x 20
  • 84
    415080100 Hose
    Hose
  • 85
    415129484 Spark Plug (PFR7AB)
    Spark Plug (PFR7AB)
  • 86
    512060136 Starter Handle. (Manual Start)
    Starter Handle. (Manual Start)
  • 87
    512060847 Noise Shield
    Noise Shield
  • 88
    512060958 Noise Foam
    Noise Foam
