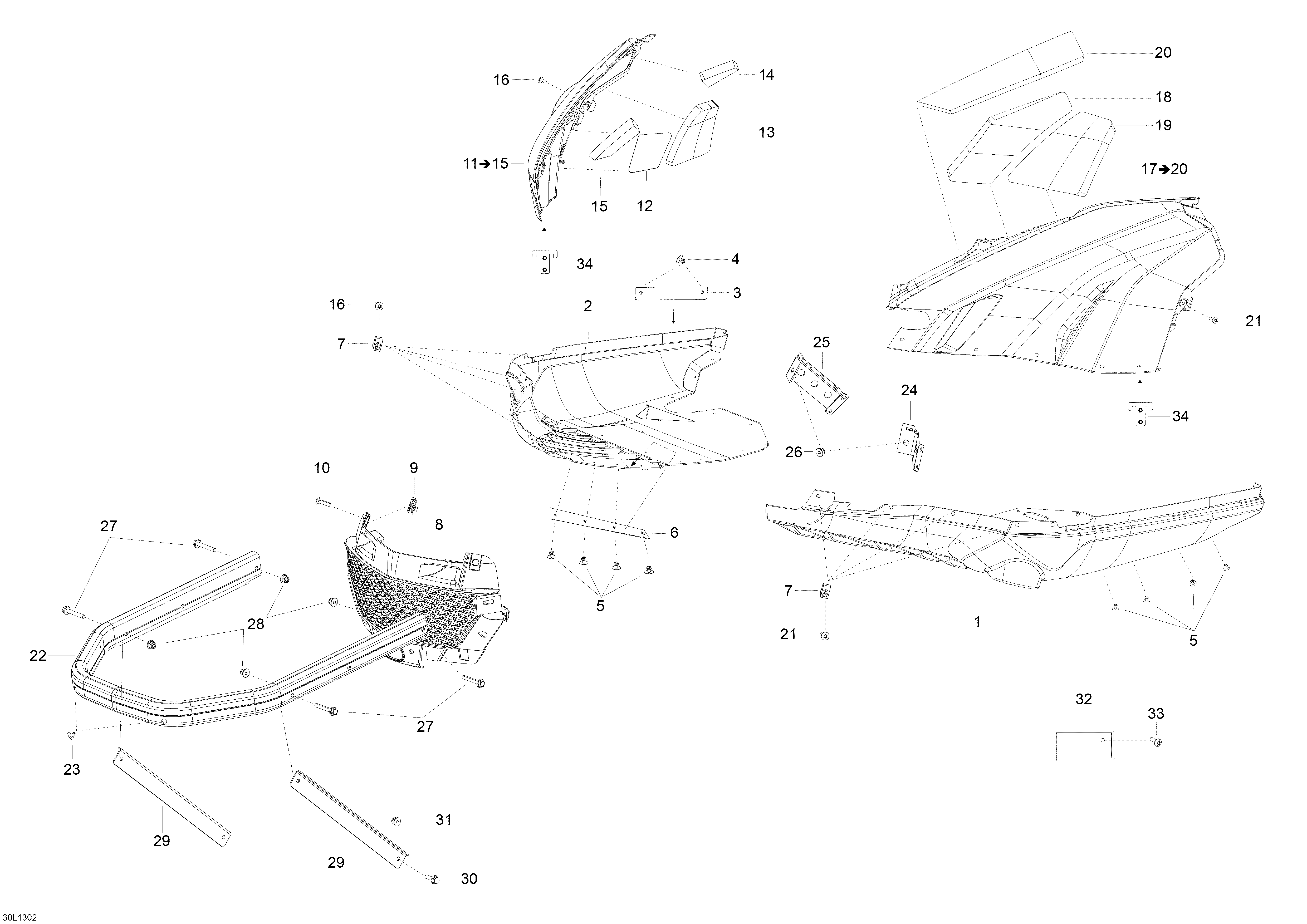

09- Bottom Pan для BRP Lynx 59 YETI 600 ACE - 2013

  • №
    Артикул
    Название
  • 1
    502007046 Lower Bottom Pan LH
    Lower Bottom Pan LH
  • 2
    502006917 Lower Bottom Pan RH
    Lower Bottom Pan RH
  • 3
    502007255 Heat Insulation Plate
    Heat Insulation Plate
  • 4
    36005 Rivet 4.8 x 12 Black
    Rivet 4.8 x 12 Black
  • 5
    293150104 Pop Rivet 3/16
    Pop Rivet 3/16
  • 6
    502007226 Support Plate
    Support Plate
  • 7
    250100113 Extruded Panel Nut M6 x 1.0
    Extruded Panel Nut M6 x 1.0
  • 8
    502007140 Front Grill
    Front Grill
  • 9
    250100113 Extruded Panel Nut M6 x 1.0
    Extruded Panel Nut M6 x 1.0
  • 10
    250000128 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 11
    502007292 Bottom Pan Ass'y RH. Includes 11 To 15
    Bottom Pan Ass'y RH. Includes 11 To 15
  • 12
    502007133 Insulator
    Insulator
  • 13
    502007132 Insulator
    Insulator
  • 14
    502007008 Insulator
    Insulator
  • 15
    502007009 Insulator
    Insulator
  • 16
    250000128 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 17
    502007294 Bottom Pan Ass'y LH. Includes 17 To 20
    Bottom Pan Ass'y LH. Includes 17 To 20
  • 18
    502007088 Insulator
    Insulator
  • 19
    502007131 Insulator
    Insulator
  • 20
    502007185 Insulator
    Insulator
  • 21
    250000128 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 22
    502007170 Bumper
    Bumper
  • 23
    293730041 Dart 8mm
    Dart 8mm
  • 24
    502007137 Bottom Pan Fastener LH
    Bottom Pan Fastener LH
  • 25
    502007138 Bottom Pan Fastener RH
    Bottom Pan Fastener RH
  • 26
    605636003 Clinch Nut Hexsert M6
    Clinch Nut Hexsert M6
  • 27
    207664044 Hex.Flange Screw M6 x 40
    Hex.Flange Screw M6 x 40
  • 28
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 29
    502006927 Bumper Support
    Bumper Support
  • 30
    207662044 Hex. Flange Screw M6 x 20
    Hex. Flange Screw M6 x 20
  • 31
    233261414 Elastic Flange Nut M6
    Elastic Flange Nut M6
  • 32
    502007186 Drain Hole Cover
    Drain Hole Cover
  • 33
    250000128 Torx Truss Screw M6 x 20
    Torx Truss Screw M6 x 20
  • 34
    502007303 Mounting Plate
    Mounting Plate
