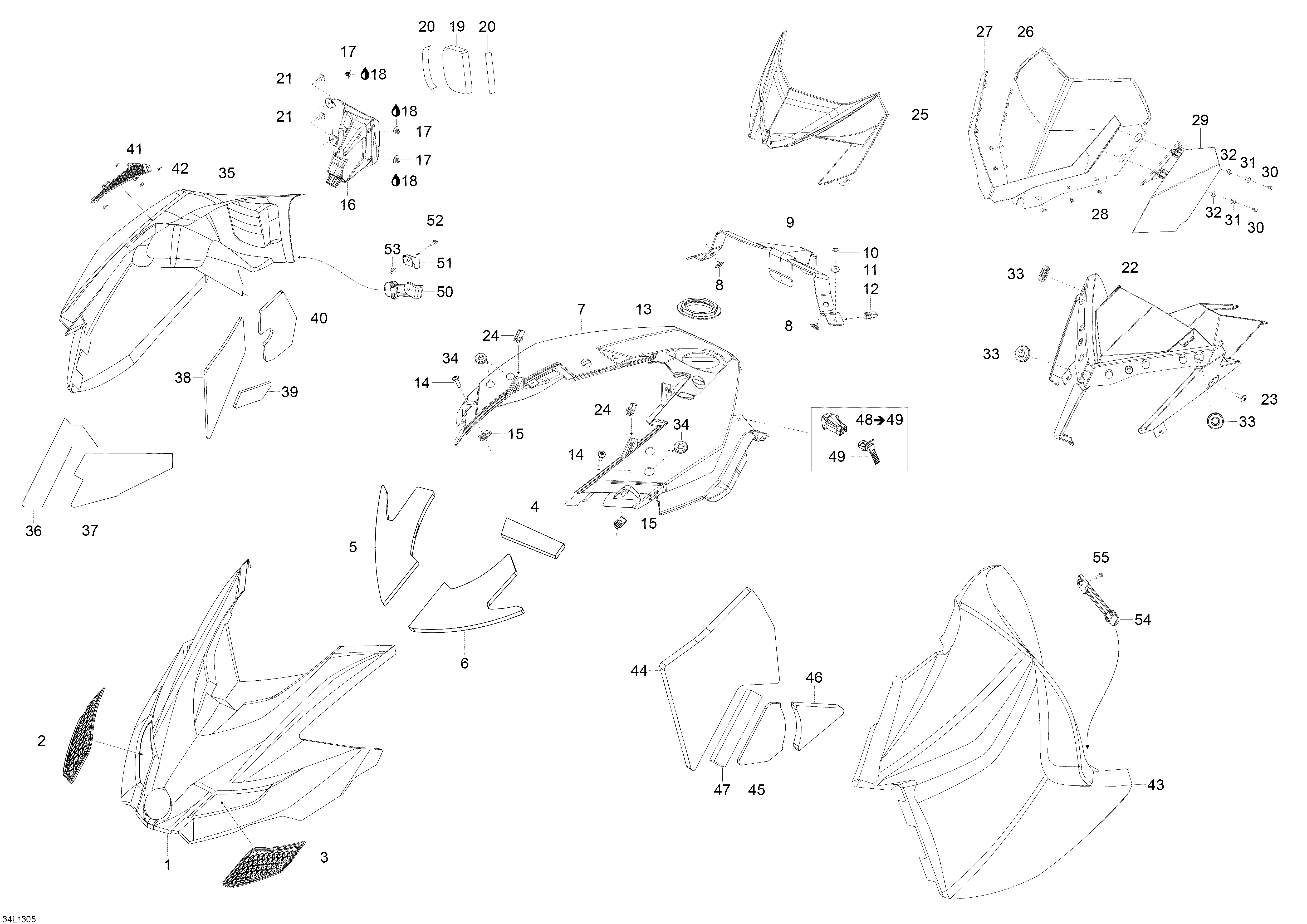

09- Hood для BRP Lynx Xtrim SC 600 E-TEC - 2013

-
№АртикулНазвание
-
1517303962 HoodHood
-
2517304141 Hood Grill RHHood Grill RH
-
3517304008 Hood Grill LHHood Grill LH
-
4517304266 FoamFoam
-
5517304263 FoamFoam
-
6517304321 FoamFoam
-
7517304645 ConsoleConsole
-
8605452114 Rubber PlugRubber Plug
-
9517305363 Console Support, BlackConsole Support, Black
-
10250000130 Torx Truss M5 x 20Torx Truss M5 x 20
-
11517124300 WasherWasher
-
12250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
13517304518 Console NutConsole Nut
-
14250000128 Torx Truss M5 x 20Torx Truss M5 x 20
-
15250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
16517304322 Console RHConsole RH
-
17275500241 Cap PlugCap Plug
-
18619600020 Loctite 480, 20gLoctite 480, 20g
-
19517304398 CoverCover
-
20415110900 Velcro TapeVelcro Tape
-
21250000113 Screw M4 x 16Screw M4 x 16
-
22517304576 Indicator SupportIndicator Support
-
23250000128 Torx Truss M6 x 20Torx Truss M6 x 20
-
24250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
25517303979 ShroudShroud
-
26517303608 WindshieldWindshield
-
27517303607 SupportSupport
-
28732610072 Push NutPush Nut
-
29517303604 Air Deflector RHAir Deflector RH
-
29517303605 Air Deflector LHAir Deflector LH
-
30250000146 Torx Truss K50 x 16Torx Truss K50 x 16
-
31250200025 Washer M5Washer M5
-
32250200024 Rubber Washer M5Rubber Washer M5
-
33517303756 GrommetGrommet
-
34517303756 GrommetGrommet
-
35517304981 Side Panel RHSide Panel RH
-
36517304264 Aluminium FoilAluminium Foil
-
37517304265 Aluminium FoilAluminium Foil
-
38517304220 FoamFoam
-
39517304306 FoamFoam
-
40517304339 FoamFoam
-
41517304007 GrillGrill
-
42517302785 ClipClip
-
43517304990 Side Panel LHSide Panel LH
-
44517304219 FoamFoam
-
45517304305 FoamFoam
-
46517304340 FoamFoam
-
47517305108 FoamFoam
-
48860200239 Latch Ass?y. Includes 48 To 49Latch Ass?y. Includes 48 To 49
-
49517303981 Latch PanelLatch Panel
-
50517303612 Latch PanelLatch Panel
-
51517304221 Latch SupportLatch Support
-
52207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
53233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
54517303808 Latch Panel LH lowerLatch Panel LH lower
-
55250000128 Torx Truss M6 x 20Torx Truss M6 x 20
