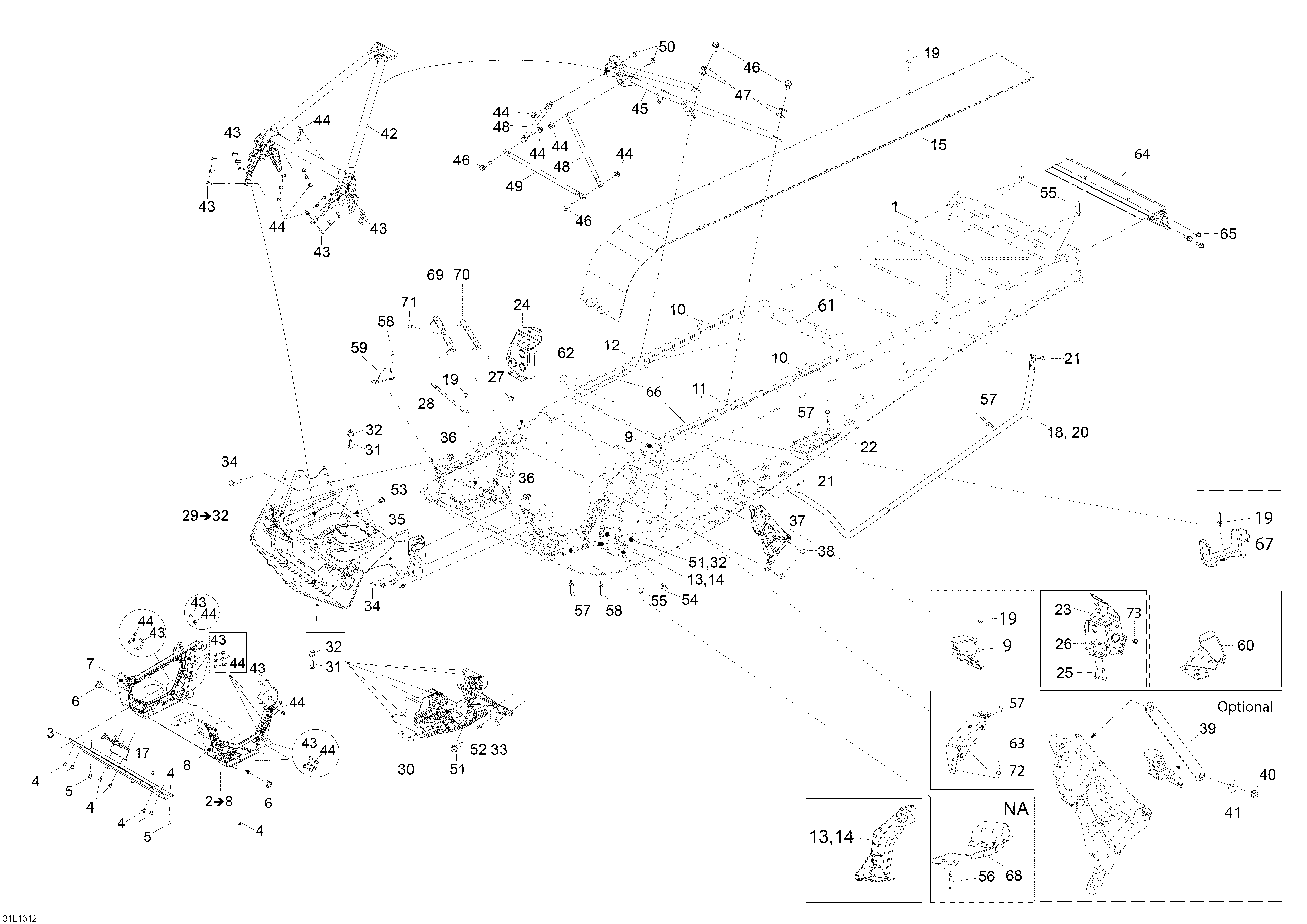

09- Frame для BRP Lynx Xtrim Commander 600 E-TEC - 2013

  • №
    Артикул
    Название
  • 1
    518326981 Frame XU E-TEC PPS Alu
    Frame XU E-TEC PPS Alu
  • 1
    518327227 Frame XU E-TEC PPS White. LTD Models
    Frame XU E-TEC PPS White. LTD Models
  • 2
    518326660 Module E
    Module E
  • 3
    518326198 Front member
    Front member
  • 4
    293150119 Rivet hucklok
    Rivet hucklok
  • 5
    293150120 Rivet hucklok
    Rivet hucklok
  • 6
    505072690 Cushion
    Cushion
  • 7
    518326795 R.H. Member
    R.H. Member
  • 8
    518326796 L.H. Member
    L.H. Member
  • 9
    605355235 Fastening bracket
    Fastening bracket
  • 10
    518325987 Seat box bracket
    Seat box bracket
  • 11
    518326109 Bracket L.H.
    Bracket L.H.
  • 12
    518326110 Bracket R.H.
    Bracket R.H.
  • 13
    518325524 Frame corner L.H.
    Frame corner L.H.
  • 14
    518325526 Frame corner R.H.
    Frame corner R.H.
  • 15
    509000626 Radiator
    Radiator
  • 17
    518325943 MAG Support
    MAG Support
  • 18
    518326963 Footrest support tube L.H.
    Footrest support tube L.H.
  • 19
    390909200 Rivet Avex 10mm.
    Rivet Avex 10mm.
  • 20
    518326964 Footrest support tube R.H.
    Footrest support tube R.H.
  • 21
    207662086 Screw-hex. Flange M6 x 20
    Screw-hex. Flange M6 x 20
  • 22
    520001208 Footrest black. LTD Models
    Footrest black. LTD Models
  • 23
    518327374 Toe hook L.H. Black
    Toe hook L.H. Black
  • 24
    518327376 Toe hook R.H. Black
    Toe hook R.H. Black
  • 25
    207662086 Hex. Flange screw M6 x 20
    Hex. Flange screw M6 x 20
  • 26
    233261414 Elastic flanged nut M6
    Elastic flanged nut M6
  • 27
    250000128 Torx-Screw M6 x 20
    Torx-Screw M6 x 20
  • 28
    514054616 Brachet spring
    Brachet spring
  • 29
    518326210 Cross member. NTC_AA
    Cross member. NTC_AA
  • 30
    518325925 Support
    Support
  • 31
    207662044 Hex. Flanged Screw M6 X 20 (8.8)
    Hex. Flanged Screw M6 X 20 (8.8)
  • 32
    233261414 Hex. Flanged elastic nut M6
    Hex. Flanged elastic nut M6
  • 33
    233281414 Elastic flanged nut M8
    Elastic flanged nut M8
  • 34
    210262080 Hex. Screw forming M6 x 20
    Hex. Screw forming M6 x 20
  • 35
    250000450 Hex. Flange screw
    Hex. Flange screw
  • 36
    233261414 Flanged elastic nut
    Flanged elastic nut
  • 37
    518327372 Pulley support
    Pulley support
  • 38
    207582586 Hex. Flanged screw M8 x 25
    Hex. Flanged screw M8 x 25
  • 39
    518326449 Draft bar (Optional)
    Draft bar (Optional)
  • 40
    233261414 Elastic flanged nut M6
    Elastic flanged nut M6
  • 41
    234081430 Flat washer
    Flat washer
  • 42
    518326970 Member-front. NTC_AA
    Member-front. NTC_AA
  • 43
    207662044 Hex. Flanged screw M6 x 20 (10.9)
    Hex. Flanged screw M6 x 20 (10.9)
  • 44
    233261414 Elastic flanged nut M6
    Elastic flanged nut M6
  • 45
    518326103 Support tube upper
    Support tube upper
  • 46
    207662086 Hex. Flanged screw M6 x 20
    Hex. Flanged screw M6 x 20
  • 48
    518325114 Support
    Support
  • 49
    518325115 Upper colum
    Upper colum
  • 50
    250000450 Hex. Flanged screw M6 x 25
    Hex. Flanged screw M6 x 25
  • 51
    207561244 Hex. Flanged screw M6 x 12
    Hex. Flanged screw M6 x 12
  • 52
    293150147 Hemlock rivet
    Hemlock rivet
  • 53
    293730042 Dart 5-6
    Dart 5-6
  • 54
    414644300 Dart
    Dart
  • 55
    390909200 Rivet Avex
    Rivet Avex
  • 56
    293150104 Pop Rivet 3/16
    Pop Rivet 3/16
  • 57
    390909100 Rivet avex 12 mm.
    Rivet avex 12 mm.
  • 58
    293150163 Rivet Huckloc 4.8 mm.
    Rivet Huckloc 4.8 mm.
  • 59
    518326642 Muffler support plate
    Muffler support plate
  • 60
    518325626 Brake hose cover
    Brake hose cover
  • 61
    518325986 Battery support plate
    Battery support plate
  • 62
    518325560 Adhesive patch
    Adhesive patch
  • 63
    518326430 Clinch nut plate
    Clinch nut plate
  • 64
    518327194 Rear profile threaded
    Rear profile threaded
  • 65
    207582586 Screw M8x25 10.9
    Screw M8x25 10.9
  • 66
    518326107 Fastening rail
    Fastening rail
  • 67
    515177073 Fuse box support
    Fuse box support
  • 68
    518326566 Pulley cover plate (NA models). NA models
    Pulley cover plate (NA models). NA models
  • 69
    518326123 Gearbox Counter Plate Front
    Gearbox Counter Plate Front
  • 70
    518326124 Gearbox Counter Plate Rear
    Gearbox Counter Plate Rear
  • 71
    390402200 Pop Rivet 3/16
    Pop Rivet 3/16
  • 72
    293150183 Rivet hemlock 19.7 mm.
    Rivet hemlock 19.7 mm.
  • 73
    605636003 Clinch nut Hexsert
    Clinch nut Hexsert
