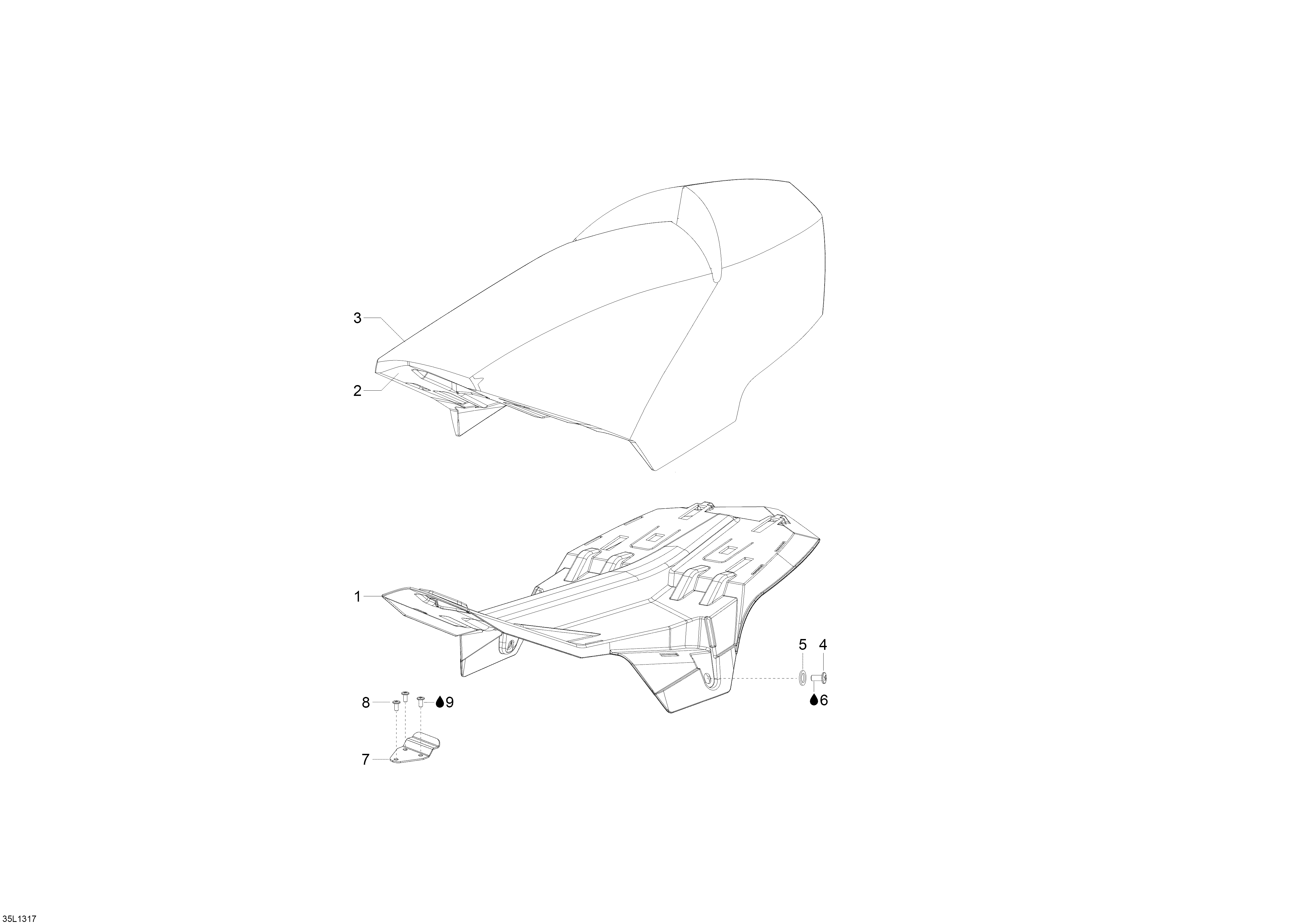

09- Seat для BRP Lynx Rave RE 600 E-TEC - 2013
-
№АртикулНазвание
-
1510004899 Seat BaseSeat Base
-
2510005097 Seat FoamSeat Foam
-
3510005516 Seat CoverSeat Cover
-
4250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
5510005346 WasherWasher
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
7510005129 Seat Front Fastening PlateSeat Front Fastening Plate
-
8205461046 Socket Screw M6 x 10Socket Screw M6 x 10
-
9293800060 Loctite 243, 10mlLoctite 243, 10ml
