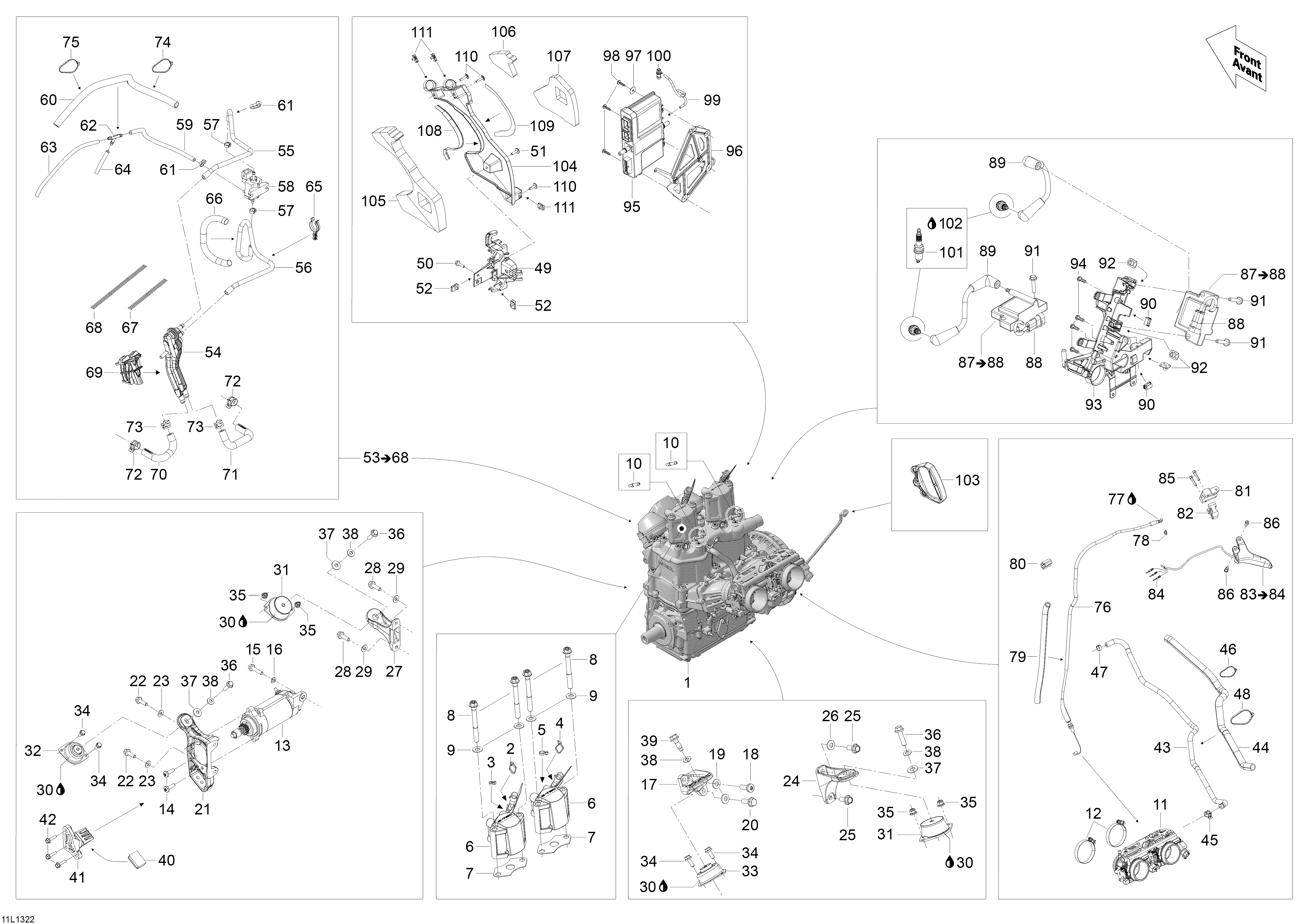

01- Engine And Engine Support для BRP Lynx Rave GLS 800R E-TEC - 2013
-
№АртикулНазвание
-
2293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6512060728 Fuel Injector Ass'yFuel Injector Ass'y
-
7420430930 GasketGasket
-
8420441187 Flanged Torx Screw M10 x 90Flanged Torx Screw M10 x 90
-
9234001410 Flat Washer M10Flat Washer M10
-
10420924724 Hose NippleHose Nipple
-
11420889199 Throttle BodyThrottle Body
-
12508000007 ClampClamp
-
13515177389 Electric Starter. (Electrical Start)Electric Starter. (Electrical Start)
-
14250000248 Pan HD. Torx Screw M8 x 25. (Electrical Start)Pan HD. Torx Screw M8 x 25. (Electrical Start)
-
15207583544 Hex. Flange Screw M8 x 35. (Electrical Start)Hex. Flange Screw M8 x 35. (Electrical Start)
-
16250200008 Flat Washer M8. (Electrical Start)Flat Washer M8. (Electrical Start)
-
17512060478 Rear Support PTORear Support PTO
-
18250000248 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
21512060714 Front Support PTOFront Support PTO
-
22207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060559 Rear Support MAGRear Support MAG
-
25207582044 Hex. Flanged Screw M8 x 20, Scotch GripHex. Flanged Screw M8 x 20, Scotch Grip
-
26234281474 Conical Spring Washer M8Conical Spring Washer M8
-
27512060469 Front Support MAGFront Support MAG
-
28207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
29234281474 Conical Spring Washer M8Conical Spring Washer M8
-
31512060729 Rubber MountRubber Mount
-
32512060387 Rubber MountRubber Mount
-
33512060448 Rubber MountRubber Mount
-
34207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
37503183200 Washer, YellowWasher, Yellow
-
38234281474 Conical Spring Washer M8Conical Spring Washer M8
-
39250000570 Hex. Screw M8Hex. Screw M8
-
40512060766 StopperStopper
-
41512060576 Stopper SupportStopper Support
-
42207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
43512060741 Formed HoseFormed Hose
-
44415080000 Protector TubeProtector Tube
-
45293650172 ClampClamp
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47293650046 Crimp ClampCrimp Clamp
-
48293750008 Tie-Rap 368 mmTie-Rap 368 mm
-
49512060298 Solenoid SupportSolenoid Support
-
50207652044 Flanged Hex. Screw M5 x 20Flanged Hex. Screw M5 x 20
-
51207652044 Flanged Hex. Screw M5 x 20Flanged Hex. Screw M5 x 20
-
52250000079 Panel Nut M5Panel Nut M5
-
54512060692 ManifoldManifold
-
55415080200 HoseHose
-
56415080200 HoseHose
-
57293650043 ClampClamp
-
58512060774 Solenoid ValveSolenoid Valve
-
59270000374 HoseHose
-
60409901700 TubingTubing
-
61293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
62293710068 T-FittingT-Fitting
-
63270000374 HoseHose
-
64270000374 HoseHose
-
65512060762 Hose SupportHose Support
-
66415079900 TubingTubing
-
67512060814 Spring 305 mmSpring 305 mm
-
68512060807 Spring 405 mmSpring 405 mm
-
69512060822 Manifold SupportManifold Support
-
70512060695 HoseHose
-
71512060694 HoseHose
-
72293650214 Spring ClampSpring Clamp
-
73293650047 Crimp ClampCrimp Clamp
-
74293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
75293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
76512060624 Throttle CableThrottle Cable
-
77619600021 Dielectric Grease, 75mlDielectric Grease, 75ml
-
78414274500 CirclipCirclip
-
79409901700 Tubing 9 mmTubing 9 mm
-
80512060313 ProtectorProtector
-
81512060899 Upper HousingUpper Housing
-
82512060900 Lower HousingLower Housing
-
83512060618 Throttle Handle Ass'y. Includes 83 To 84Throttle Handle Ass'y. Includes 83 To 84
-
84515175232 Male TerminalMale Terminal
-
85205052544 Screw Socket M5 x 25Screw Socket M5 x 25
-
86732601143 Shoulder ScrewShoulder Screw
-
87512060810 Ignition Coil. Includes 87 To 88Ignition Coil. Includes 87 To 88
-
88710000568 HousingHousing
-
89512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
90710000992 ClipClip
-
91250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
92293100003 Nut M6Nut M6
-
93512060696 SupportSupport
-
94241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
95512060832 Calibrated Module E-TECCalibrated Module E-TEC
-
96512060858 Calibrated Module SupportCalibrated Module Support
-
97250200040 Flat WasherFlat Washer
-
98250000297 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
99415080100 HoseHose
-
100414814100 Male ConnectorMale Connector
-
101415129484 Spark Plug (PFR7AB)Spark Plug (PFR7AB)
-
102619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
103512060136 Starter Handle. (Manual Start)Starter Handle. (Manual Start)
-
104512060339 Noise ShieldNoise Shield
-
105512060343 Noise FoamNoise Foam
-
106512060344 Noise FoamNoise Foam
-
107512060362 Noise FoamNoise Foam
-
108512060574 Heat ShieldHeat Shield
-
109512060575 Heat ShieldHeat Shield
-
110207652044 Flanged Hex. Screw M5 x 20Flanged Hex. Screw M5 x 20
-
111250000079 Panel Nut M5Panel Nut M5
