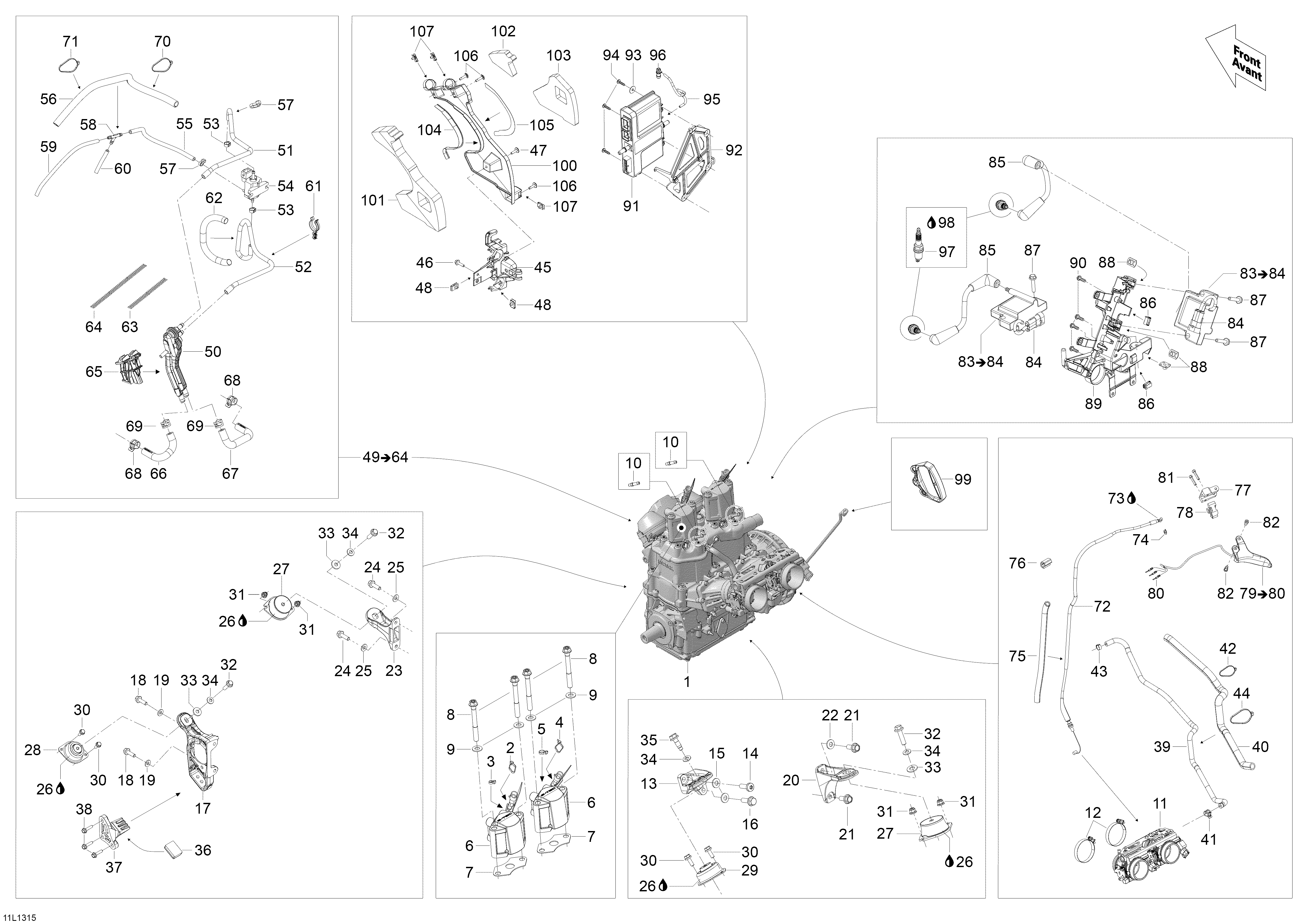

01- Engine And Engine Support для BRP Lynx BoonDocker 600 E-TEC - 2013
‹-+›
-
№АртикулНазвание
-
2293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6512060727 Fuel Injector Ass'yFuel Injector Ass'y
-
7420430930 GasketGasket
-
8420441187 Flanged Torx Screw M10 x 90Flanged Torx Screw M10 x 90
-
9234001410 Flat Washer M10Flat Washer M10
-
10420924724 Hose NippleHose Nipple
-
11420889197 Throttle BodyThrottle Body
-
12293650158 ClampClamp
-
13512060478 Rear Support PTORear Support PTO
-
14250000248 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
17512060712 Front Support PTOFront Support PTO
-
18207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20512060559 Rear Support MAGRear Support MAG
-
21207582044 Hex. Flanged Screw M8 x 20, Scotch GripHex. Flanged Screw M8 x 20, Scotch Grip
-
22234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23512060469 Front Support MAGFront Support MAG
-
24207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
25234281474 Conical Spring Washer M8Conical Spring Washer M8
-
27512060729 Rubber MountRubber Mount
-
28512060387 Rubber MountRubber Mount
-
29512060448 Rubber MountRubber Mount
-
30207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
33503183200 Washer, YellowWasher, Yellow
-
34234281474 Conical Spring Washer M8Conical Spring Washer M8
-
35250000570 Hex. Screw M8Hex. Screw M8
-
36512060627 StopperStopper
-
37512060576 Stopper SupportStopper Support
-
38207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
39512060740 Formed HoseFormed Hose
-
40415080000 Protector TubeProtector Tube
-
41293650172 ClampClamp
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43293650046 Crimp ClampCrimp Clamp
-
44293750008 Tie-Rap 368 mmTie-Rap 368 mm
-
45512060298 Solenoid SupportSolenoid Support
-
46207652044 Flanged Hex. Screw M5 x 20Flanged Hex. Screw M5 x 20
-
47207652044 Flanged Hex. Screw M5 x 20Flanged Hex. Screw M5 x 20
-
48250000079 Panel Nut M5Panel Nut M5
-
50512060692 ManifoldManifold
-
51415080200 HoseHose
-
52415080200 HoseHose
-
53293650043 ClampClamp
-
54512060774 Solenoid ValveSolenoid Valve
-
55270000374 HoseHose
-
56409901700 TubingTubing
-
57293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
58293710068 T-FittingT-Fitting
-
59270000374 HoseHose
-
60270000374 HoseHose
-
61512060762 Hose SupportHose Support
-
62415079900 TubingTubing
-
63512060814 Spring 305 mmSpring 305 mm
-
64512060807 Spring 405 mmSpring 405 mm
-
65512060769 Manifold SupportManifold Support
-
66512060695 HoseHose
-
67512060694 HoseHose
-
68293650214 Spring ClampSpring Clamp
-
69293650047 Crimp ClampCrimp Clamp
-
70293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
71293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
72512060667 Throttle CableThrottle Cable
-
73619600021 Dielectric Grease, 75mlDielectric Grease, 75ml
-
74414274500 CirclipCirclip
-
75409901700 Tubing 9 mmTubing 9 mm
-
76512060313 ProtectorProtector
-
77512059969 Upper HousingUpper Housing
-
78512059537 Lower HousingLower Housing
-
79512060616 Throttle Handle Ass'y. Includes 79 To 80Throttle Handle Ass'y. Includes 79 To 80
-
80515175232 Male TerminalMale Terminal
-
81205052544 Screw Socket M5 x 25Screw Socket M5 x 25
-
82732601143 Shoulder ScrewShoulder Screw
-
83512060810 Ignition Coil. Includes 83 To 84Ignition Coil. Includes 83 To 84
-
84710000568 HousingHousing
-
85512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
86710000992 ClipClip
-
87250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
88293100003 Nut M6Nut M6
-
89512060696 SupportSupport
-
90241151640 Hex. Flanged Screw K50 x 16Hex. Flanged Screw K50 x 16
-
91512060833 Calibrated Module E-TECCalibrated Module E-TEC
-
92512060858 Calibrated Module SupportCalibrated Module Support
-
93250200040 Flat WasherFlat Washer
-
94250000297 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
95415080100 HoseHose
-
96414814100 Male ConnectorMale Connector
-
97415129432 Spark Plug (PZFR6F)Spark Plug (PZFR6F)
-
98293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
99512060136 Starter Handle. (Manual Start)Starter Handle. (Manual Start)
-
100512060339 Noise ShieldNoise Shield
-
101512060343 Noise FoamNoise Foam
-
102512060344 Noise FoamNoise Foam
-
103512060362 Noise FoamNoise Foam
-
104512060574 Heat ShieldHeat Shield
-
105512060575 Heat ShieldHeat Shield
-
106207652044 Flanged Hex. Screw M5 x 20Flanged Hex. Screw M5 x 20
-
107250000079 Panel Nut M5Panel Nut M5
