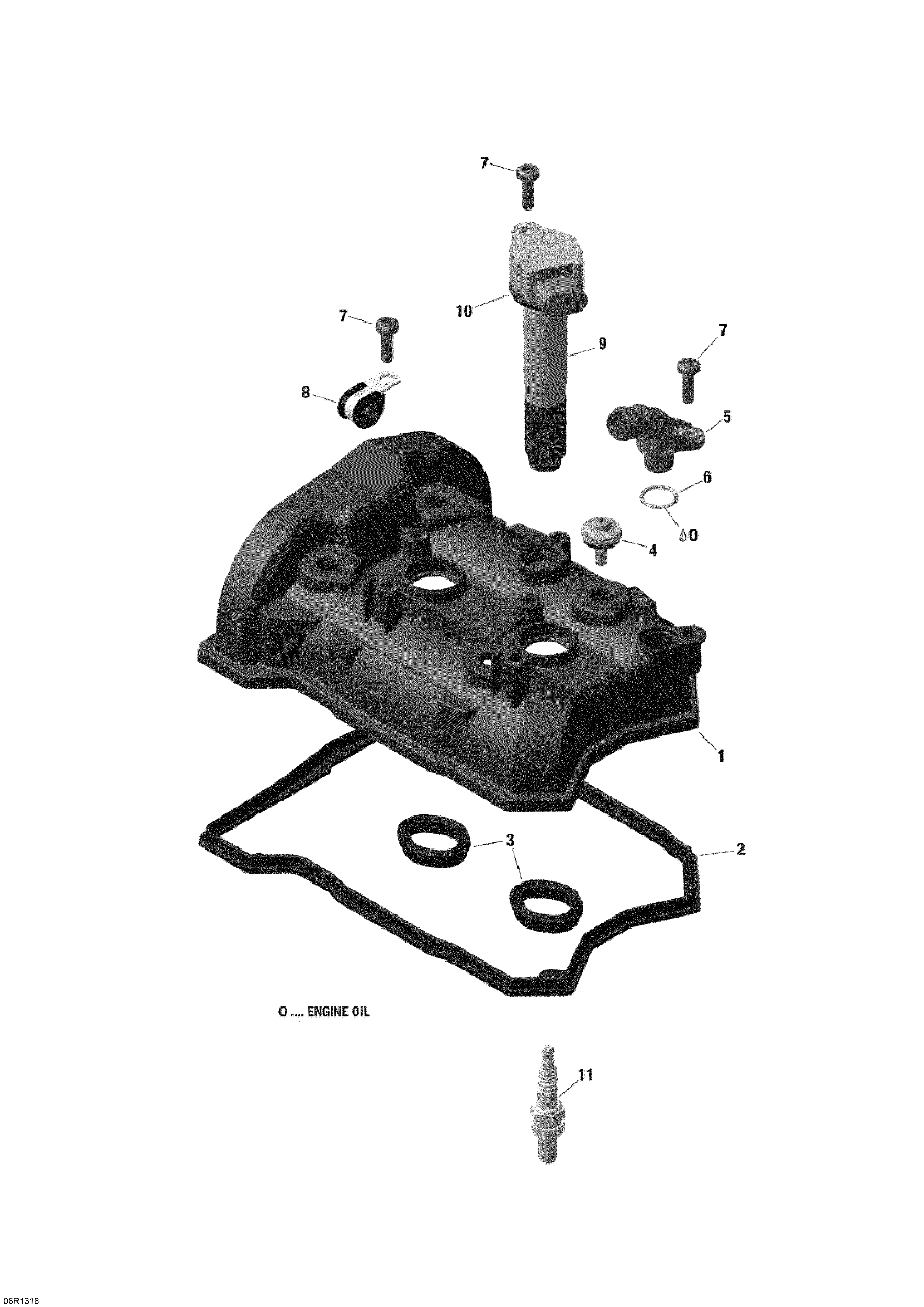

01- Valve Cover для BRP Lynx Adventure LX 600 ACE - 2013

  • №
    Артикул
    Название
  • 1
    420911040 Valve Cover
    Valve Cover
  • 2
    420431620 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 3
    420431750 Gasket. Included In Gasket Kit
    Gasket. Included In Gasket Kit
  • 4
    420440495 Torx Distance Screw Ass'y M6. Tightening Torque 10 Nm +/- 12%
    Torx Distance Screw Ass'y M6. Tightening Torque 10 Nm +/- 12%
  • 5
    420611240 Blow By Connector
    Blow By Connector
  • 6
    420631260 O-Ring. Included In Gasket Kit
    O-Ring. Included In Gasket Kit
  • 7
    420441381 Torx TR Screw M6 x 20. Tightening Torque 10 Nm +/- 12%
    Torx TR Screw M6 x 20. Tightening Torque 10 Nm +/- 12%
  • 8
    420851492 Cable Clamp
    Cable Clamp
  • 9
    420666140 Stick Coil. Includes 9 To 10
    Stick Coil. Includes 9 To 10
  • 10
    420201430 Protection Cap
    Protection Cap
  • 11
    415129670 Spark Plug (MR7BI-8). Tightening Torque 13 Nm +/- 12%
    Spark Plug (MR7BI-8). Tightening Torque 13 Nm +/- 12%
