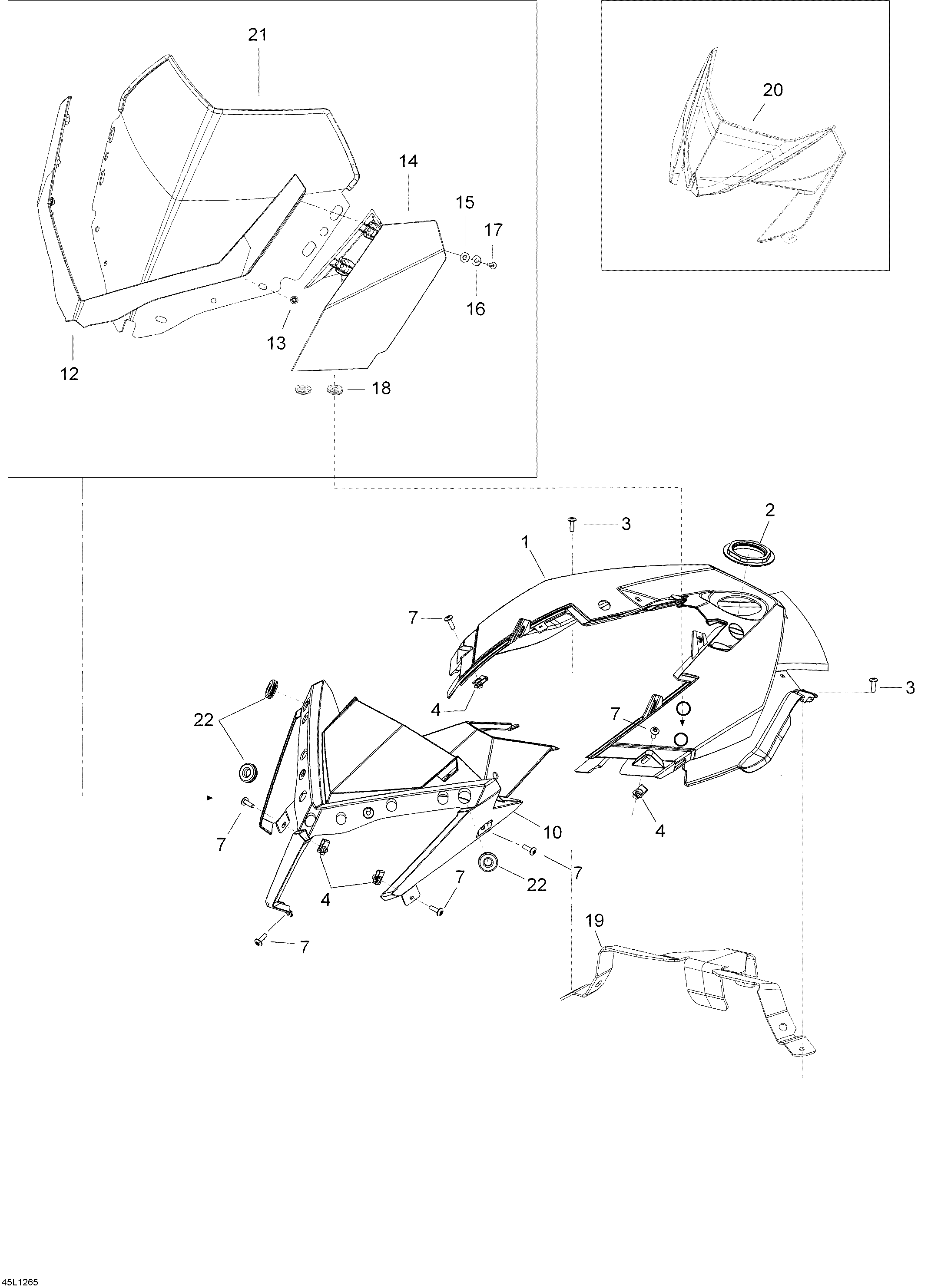

09- Windshield And Console для BRP Lynx Xtrim SC 600 E-TEC - 2012

  • №
    Артикул
    Название
  • 1
    517304645 Console White
    Console White
  • 2
    517302575 Console Nut
    Console Nut
  • 3
    293150108 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 4
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 7
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 10
    517304575 Gauge Support
    Gauge Support
  • 12
    860200091 Windshield Support Assy incl 12-13
    Windshield Support Assy incl 12-13
  • 12
    860200089 Windshield Support Kit
    Windshield Support Kit
  • 13
    732610072 Push Nut
    Push Nut
  • 14
    619560022 Wind deflector Kit RE-X incl. 14-18
    Wind deflector Kit RE-X incl. 14-18
  • 14
    517303604 RH Air Deflector
    RH Air Deflector
  • 14
    517303605 LH Air Deflector
    LH Air Deflector
  • 15
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 16
    250200025 Washer M5
    Washer M5
  • 17
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 18
    517303756 Grommet
    Grommet
  • 19
    517304230 Support plate for console
    Support plate for console
  • 20
    517304648 Headlamp cover
    Headlamp cover
  • 21
    517303608 Medium Windshield
    Medium Windshield
  • 22
    517303756 Grommet
    Grommet
