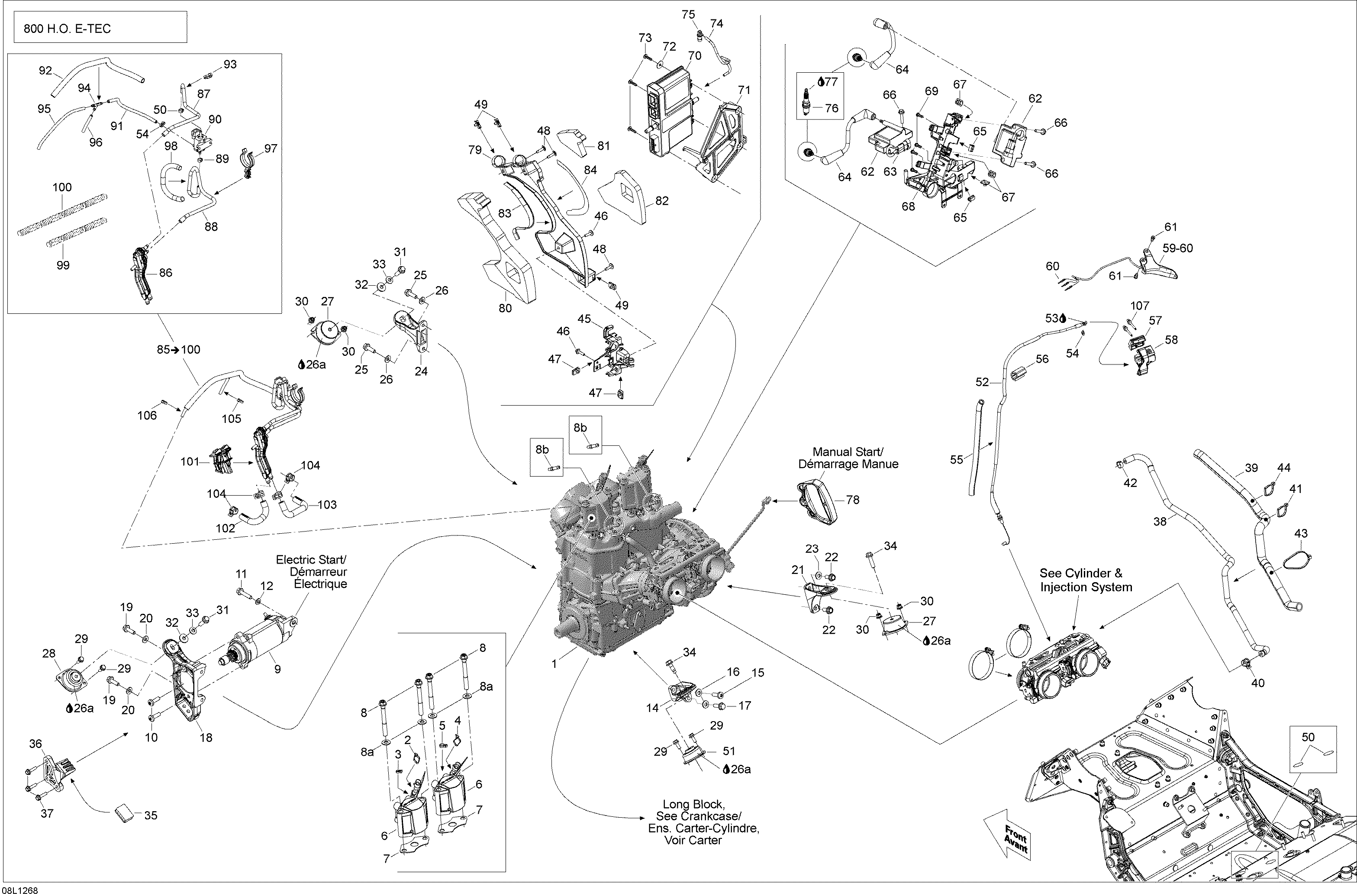

01- Engine And Engine Support для BRP Lynx Xtrim Boondocker 800R E-TEC (E) - 2012

№

Артикул

Название
2

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
3

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm
4

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
5

293750002 Tie-Rap 142 mm

Tie-Rap 142 mm
6

512060728 Fuel Injector

Fuel Injector
7

420430930 Gasket

Gasket
8

420441187 Flanged Torx Screw M10 X 90

Flanged Torx Screw M10 X 90
8a

234001410 Flat Washer 10 mm

Flat Washer 10 mm
8b

420924724 Hose Nipple

Hose Nipple
9

515176858 Starter Ass'y. Electrical Start

Starter Ass'y. Electrical Start
10

250000248 Torx Screw M8 X 25, Scotch Grip. Electrical Start

Torx Screw M8 X 25, Scotch Grip. Electrical Start
11

207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electrical Start

Hex Flanged Screw M8 X 35, Scotch Grip. Electrical Start
12

250200008 Flat Washer With Teflon 8 mm. Electrical Start

Flat Washer With Teflon 8 mm. Electrical Start
14

512060478 Rear Support, PTO

Rear Support, PTO
15

250000248 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip
16

234281474 Conical Spring Washer M8

Conical Spring Washer M8
17

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
18

512060714 Front Support PTO

Front Support PTO
19

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
20

234281474 Conical Spring Washer M8

Conical Spring Washer M8
21

512060559 Rear Support, MAG

Rear Support, MAG
22

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip
23

234281474 Conical Spring Washer M8

Conical Spring Washer M8
24

512060469 Front Support, MAG

Front Support, MAG
25

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
26

234281474 Conical Spring Washer M8

Conical Spring Washer M8
26a

293550033 Suspension Grease, 10 X 400 G

Suspension Grease, 10 X 400 G
27

512060457 Rubber Mount

Rubber Mount
28

512060387 Rubber Mount

Rubber Mount
29

207561644 Hex. Flanged Screw M6 X 16, Scotch Grip

Hex. Flanged Screw M6 X 16, Scotch Grip
30

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
31

207583086 Flanged Hex. Screw M8 X 30, Scotch Grip

Flanged Hex. Screw M8 X 30, Scotch Grip
32

503183200 Washer, Yellow

Washer, Yellow
33

234281474 Conical Spring Washer M8

Conical Spring Washer M8
34

250000361 Hex. Screw M8

Hex. Screw M8
35

512060766 Stopper

Stopper
36

512060576 Stopper Support

Stopper Support
37

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
38

512060741 Formed Hose, Output

Formed Hose, Output
39

415080000 Tubing 16 mm

Tubing 16 mm
40

293650172 Tridon Gear Clamp

Tridon Gear Clamp
41

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
42

293650046 Oetiker Clamp

Oetiker Clamp
43

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
44

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
45

512060298 Solenoid Support

Solenoid Support
46

207652044 Flanged Hex. Screw M5 X 20

Flanged Hex. Screw M5 X 20
47

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
48

207652044 Flanged Hex. Screw M5 X 20

Flanged Hex. Screw M5 X 20
49

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
50

518325560 Adhesive Patch

Adhesive Patch
51

512060448 Rubber Mount

Rubber Mount
52

512060667 Throttle Cable

Throttle Cable
53

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
54

414274500 Circlip

Circlip
55

409901700 Tubing 9 mm

Tubing 9 mm
56

512060313 Protector

Protector
57

512059969 Upper Housing

Upper Housing
58

512059537 Lower Housing

Lower Housing
59

512060616 Throttle Handle. Includes 59 to 60

Throttle Handle. Includes 59 to 60
60

515175232 Male Terminal

Male Terminal
61

732601143 Flanged Screw

Flanged Screw
62

512060711 Ignition Coil. Includes 62 to 63

Ignition Coil. Includes 62 to 63
63

710000568 Housing

Housing
64

512060094 Ignition Cable, 177 mm

Ignition Cable, 177 mm
65

710000992 Clip

Clip
66

250000253 Flanged Hex. Screw M6 X 30

Flanged Hex. Screw M6 X 30
67

293100003 Nut M6

Nut M6
68

512060696 Support Coils

Support Coils
69

241151640 Hex. Flanged Screw K50 X 16

Hex. Flanged Screw K50 X 16
70

512060708 Calibrated Module

Calibrated Module
71

512060297 Calibrated Module Support

Calibrated Module Support
72

250200040 Flat Washer

Flat Washer
73

250000297 Truss Head Torx Screw K50 X 20

Truss Head Torx Screw K50 X 20
74

415080100 Line

Line
75

414814100 Male Connector

Male Connector
76

415129484 Spark Plug, NGK PFR7AB

Spark Plug, NGK PFR7AB
77

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
78

512060136 Starter handle. Manual Start

Starter handle. Manual Start
79

512060339 Noise Shield

Noise Shield
80

512060343 Interior Noise Foam

Interior Noise Foam
81

512060344 Upper Exterior Noise Foam

Upper Exterior Noise Foam
82

512060362 Lower Exterior Noise Foam

Lower Exterior Noise Foam
83

512060574 Heat Shield

Heat Shield
84

512060575 Heat Shield

Heat Shield
85

512060725 Manifold Ass'y

Manifold Ass'y
86

512060692 Manifold

Manifold
87

512060703 Hose

Hose
88

512060764 Hose

Hose
89

293650043 Clip

Clip
90

512060774 Solenoid Valve

Solenoid Valve
91

512060705 Hose

Hose
92

512060767 Tubing

Tubing
93

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
94

293710068 T-Fitting

T-Fitting
95

512060706 Hose

Hose
96

512060707 Hose

Hose
97

512060762 Hose Support

Hose Support
98

513033225 Tubing

Tubing
99

512060806 Spring 280 mm

Spring 280 mm
100

512060807 Spring 405 mm

Spring 405 mm
101

512060693 Manifold Support

Manifold Support
102

512060695 LH Formed Hose

LH Formed Hose
103

512060694 RH Formed Hose

RH Formed Hose
104

293650214 Norma Spring Clamp

Norma Spring Clamp
105

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
106

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
107

205052544 Socket Screw M5 X 25

Socket Screw M5 X 25
