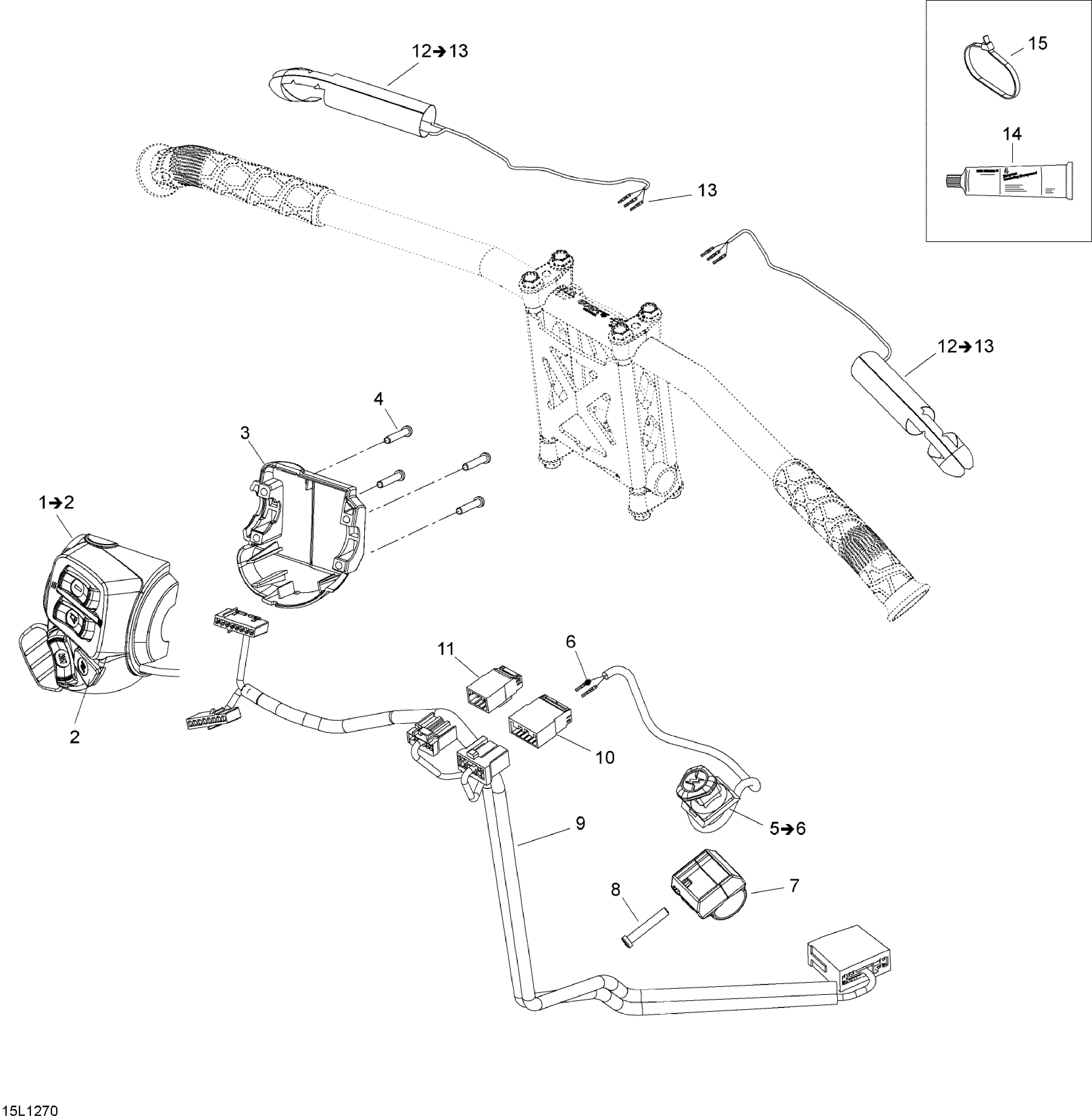

10- Steering Wiring Harness для BRP Lynx Rave RE 800R E-TEC (E) - 2012

  • №
    Артикул
    Название
  • 1
    515177020 LH Housing
    LH Housing
  • 2
    515176088 Start/RER Button
    Start/RER Button
  • 3
    515175926 Housing Switch Plate
    Housing Switch Plate
  • 4
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 5
    515177061 Kill Switch
    Kill Switch
  • 6
    515175768 Male Terminal
    Male Terminal
  • 7
    515176825 Kill Switch Support
    Kill Switch Support
  • 8
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 9
    515176868 Steering Wiring Harness Ass'y
    Steering Wiring Harness Ass'y
  • 10
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 11
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 12
    506152428 Heated Film, 25W
    Heated Film, 25W
  • 13
    515175232 Male Terminal
    Male Terminal
  • 14
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 15
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
