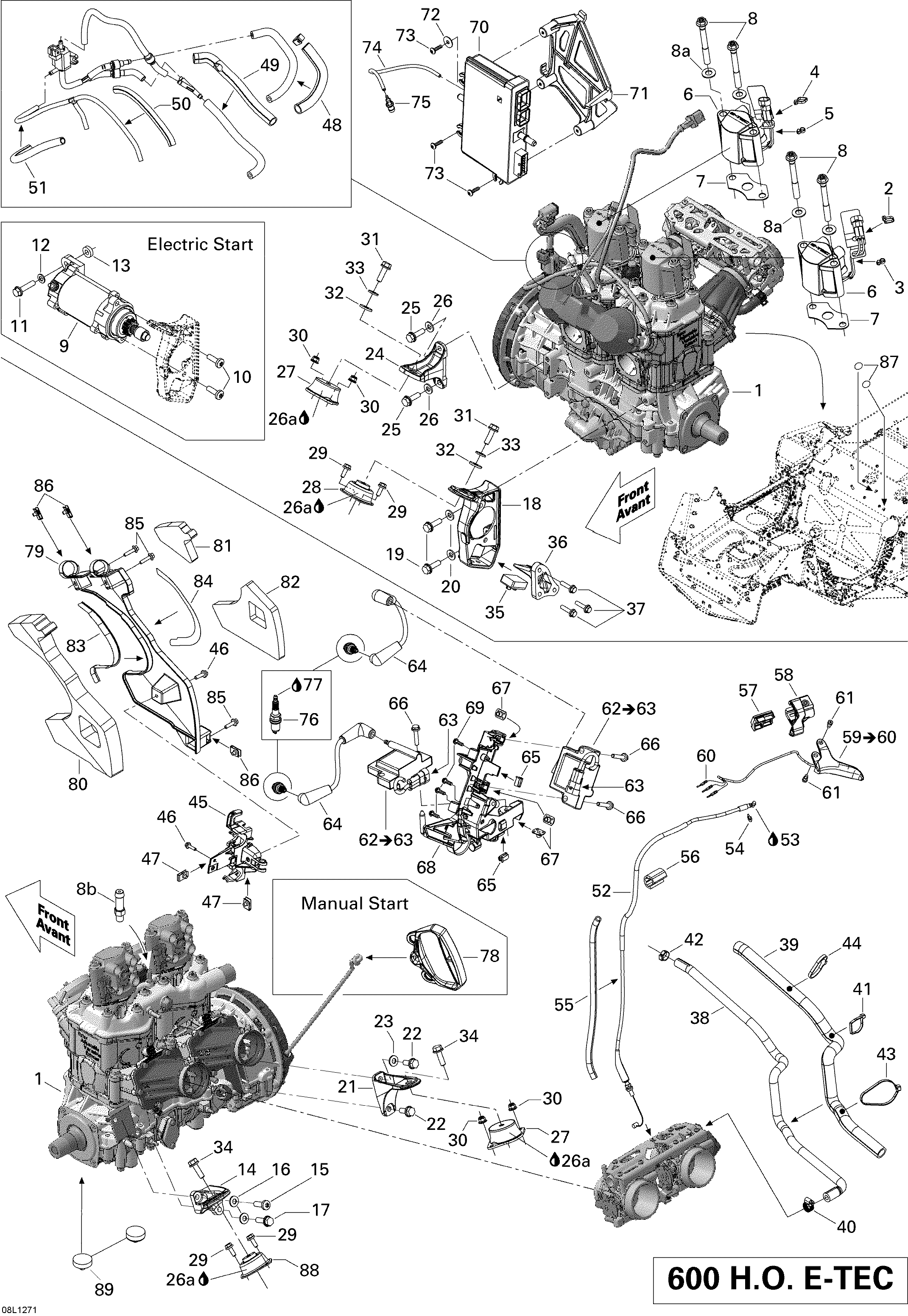

01- Engine And Engine Support для BRP Lynx Rave RE 600 E-TEC - 2012

  • №
    Артикул
    Название
  • 2
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 3
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 4
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 5
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 6
    512060649 Fuel Injector
    Fuel Injector
  • 7
    420430930 Gasket
    Gasket
  • 8
    420441187 Flanged Torx Screw M10 X 90
    Flanged Torx Screw M10 X 90
  • 8a
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 8b
    420924720 Hose Nipple
    Hose Nipple
  • 14
    512060478 Rear Support, PTO
    Rear Support, PTO
  • 15
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 16
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 17
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 18
    512060712 Front Support PTO
    Front Support PTO
  • 19
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 20
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 21
    512060559 Rear Support, MAG
    Rear Support, MAG
  • 22
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 23
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 24
    512060469 Front Support, MAG
    Front Support, MAG
  • 25
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 26
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 26a
    293550033 Suspension Grease, 10 X 400 G
    Suspension Grease, 10 X 400 G
  • 27
    512060457 Rubber Mount
    Rubber Mount
  • 28
    512060387 Rubber Mount
    Rubber Mount
  • 29
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 30
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 31
    207583086 Flanged Hex. Screw M8 X 30, Scotch Grip
    Flanged Hex. Screw M8 X 30, Scotch Grip
  • 32
    503183200 Washer, Yellow
    Washer, Yellow
  • 33
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 34
    250000361 Hex. Screw M8
    Hex. Screw M8
  • 35
    512060627 Stopper
    Stopper
  • 36
    512060576 Stopper Support
    Stopper Support
  • 37
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 38
    512060740 Formed Hose, Output
    Formed Hose, Output
  • 39
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 40
    293650172 Tridon Gear Clamp
    Tridon Gear Clamp
  • 41
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 42
    293650046 Oetiker Clamp
    Oetiker Clamp
  • 43
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 44
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 45
    512060298 Solenoid Support
    Solenoid Support
  • 46
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 47
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 48
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 49
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 50
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 51
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 52
    512060624 Throttle Cable
    Throttle Cable
  • 53
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 54
    414274500 Circlip
    Circlip
  • 55
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 56
    512060313 Protector
    Protector
  • 57
    512060198 Upper Housing Ass'y
    Upper Housing Ass'y
  • 58
    512060430 Lower Housing
    Lower Housing
  • 59
    512060618 Throttle Handle. Includes 59 to 60
    Throttle Handle. Includes 59 to 60
  • 60
    515175232 Male Terminal
    Male Terminal
  • 61
    732601143 Flanged Screw
    Flanged Screw
  • 62
    512060711 Ignition Coil. Includes 62 to 63
    Ignition Coil. Includes 62 to 63
  • 63
    710000568 Housing
    Housing
  • 64
    512060094 Ignition Cable, 177 mm
    Ignition Cable, 177 mm
  • 65
    710000992 Clip
    Clip
  • 66
    250000253 Flanged Hex. Screw M6 X 30
    Flanged Hex. Screw M6 X 30
  • 67
    293100003 Nut M6
    Nut M6
  • 68
    512060696 Support Coils
    Support Coils
  • 69
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 70
    512060786 Calibrated Module
    Calibrated Module
  • 71
    512060297 Calibrated Module Support
    Calibrated Module Support
  • 72
    250200040 Flat Washer
    Flat Washer
  • 73
    250000297 Truss Head Torx Screw K50 X 20
    Truss Head Torx Screw K50 X 20
  • 74
    415080100 Line
    Line
  • 75
    414814100 Male Connector
    Male Connector
  • 76
    415129432 Spark Plug
    Spark Plug
  • 77
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 78
    512060136 Starter Grip. Manual Start
    Starter Grip. Manual Start
  • 79
    512060339 Noise Shield
    Noise Shield
  • 80
    512060343 Interior Noise Foam
    Interior Noise Foam
  • 81
    512060344 Upper Exterior Noise Foam
    Upper Exterior Noise Foam
  • 82
    512060362 Lower Exterior Noise Foam
    Lower Exterior Noise Foam
  • 83
    512060574 Heat Shield
    Heat Shield
  • 84
    512060575 Heat Shield
    Heat Shield
  • 85
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 86
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 87
    518325560 Adhesive Patch
    Adhesive Patch
  • 88
    512060448 Rubber Mount
    Rubber Mount
  • 89
    512059738 Stopper
    Stopper
