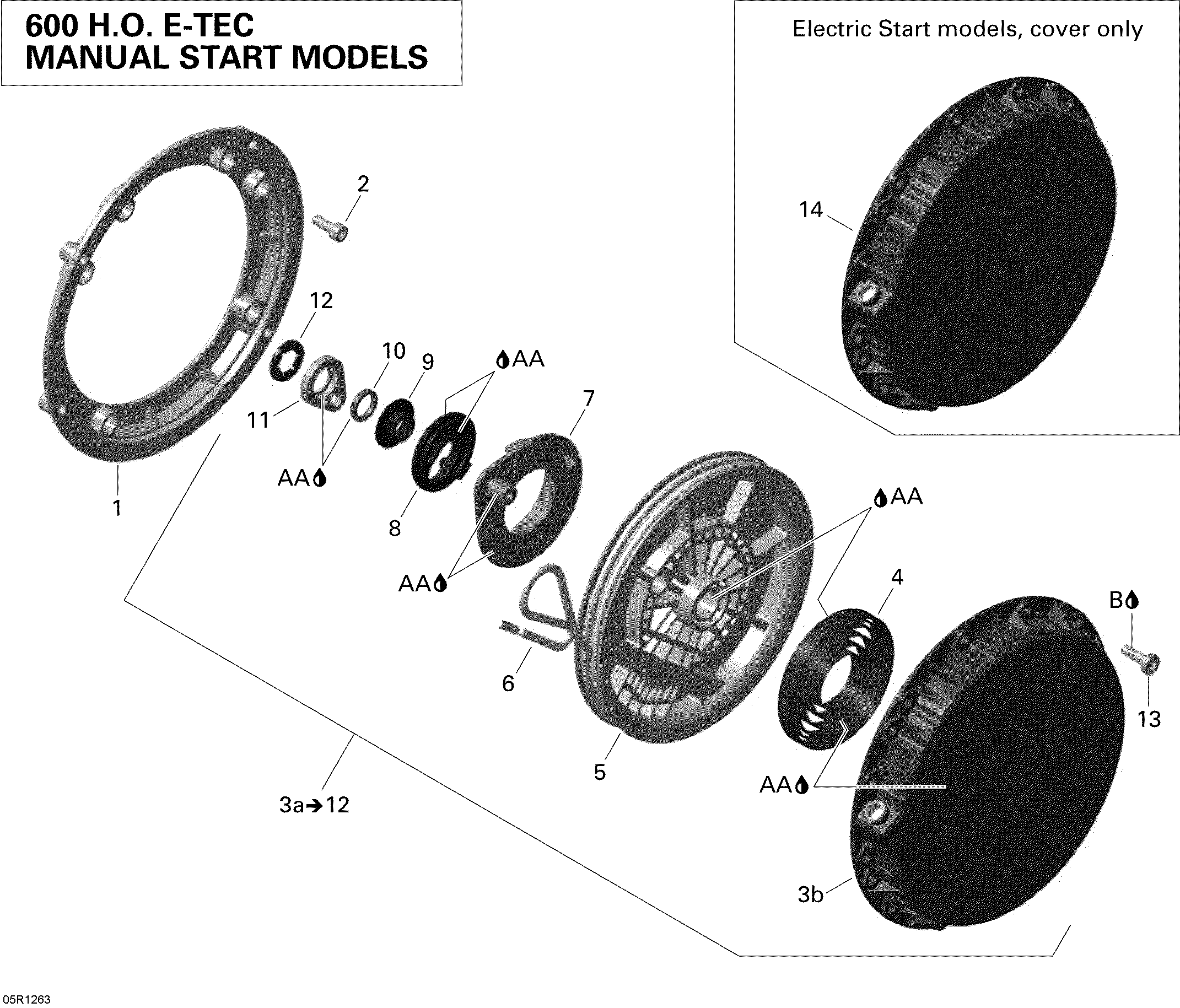

04- Rewind Starter для BRP Lynx 49 Ranger 600 E-TEC - 2012

‹-+›
  • №
    Артикул
    Название
  • 1
    420810868 Flange Connector
    Flange Connector
  • 2
    420241236 Socket Head Screw M6 X 16
    Socket Head Screw M6 X 16
  • 3a
    420892615 Rewind Starter Ass'y. Includes 3a to 12, Manual Start
    Rewind Starter Ass'y. Includes 3a to 12, Manual Start
  • 3b
    420910253 Starter Housing. Manual Start
    Starter Housing. Manual Start
  • 4
    420939115 Rewind Spring. Manual Start
    Rewind Spring. Manual Start
  • 5
    420852288 Rope Sheave. Manual Start
    Rope Sheave. Manual Start
  • 6
    412500200 Starter Rope, Meter. Manual Start
    Starter Rope, Meter. Manual Start
  • 7
    420852292 Pawl. Manual Start
    Pawl. Manual Start
  • 8
    420852308 Pawl Lock. Manual Start
    Pawl Lock. Manual Start
  • 9
    420847926 Stage Sleeve. Manual Start
    Stage Sleeve. Manual Start
  • 10
    420250407 O-Ring. Manual Start
    O-Ring. Manual Start
  • 11
    420852520 Lock Ring. Manual Start
    Lock Ring. Manual Start
  • 12
    420845560 Locking Element. Manual Start
    Locking Element. Manual Start
  • 13
    420941256 Hex. Collar Screw
    Hex. Collar Screw
  • 14
    420910254 Cover. Electrical Start
    Cover. Electrical Start
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • AA
    420899763 Molykote PG 54, 10 g
    Molykote PG 54, 10 g
