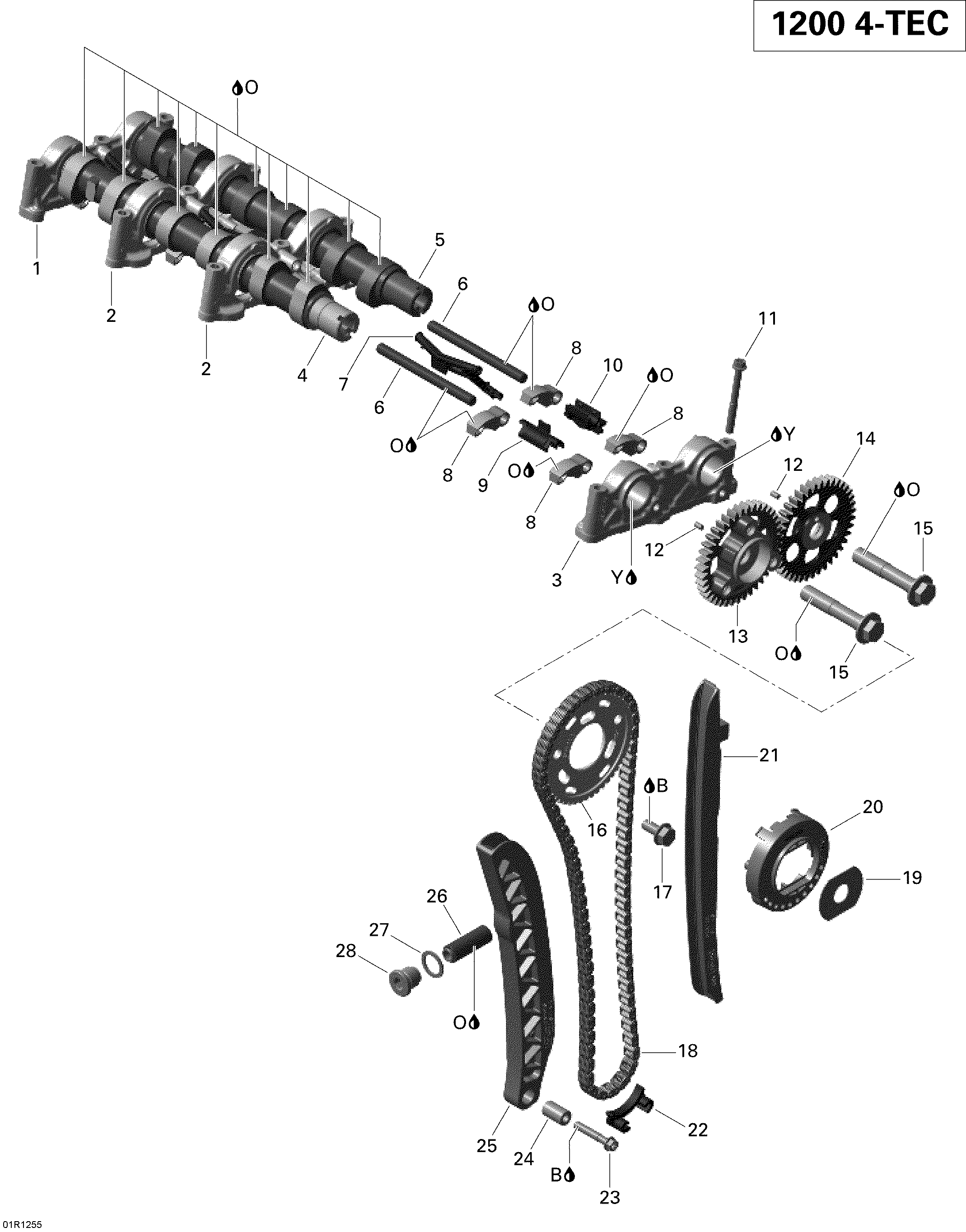

01- Camshafts And Timing Chain для BRP Lynx Adventure GT 1200 4-TEC - 2012

  • №
    Артикул
    Название
  • 1
    420910200 Camshaft Support
    Camshaft Support
  • 2
    420910202 Camshaft Support
    Camshaft Support
  • 3
    420910205 Camshaft Support
    Camshaft Support
  • 4
    420620850 Camshaft, Intake
    Camshaft, Intake
  • 5
    420620840 Camshaft, Exhaust
    Camshaft, Exhaust
  • 6
    420254730 Swing Arm Shaft
    Swing Arm Shaft
  • 7
    420956060 Oil Distribution Device
    Oil Distribution Device
  • 8
    420254722 Finger Follower
    Finger Follower
  • 9
    420460680 Spacer, Interior
    Spacer, Interior
  • 10
    420460685 Spacer, Exterior
    Spacer, Exterior
  • 11
    420440702 Flanged Torx Screw M6 X 55
    Flanged Torx Screw M6 X 55
  • 12
    420929600 Grooved Pin
    Grooved Pin
  • 13
    420834930 Drive Gear, 39 Teeth
    Drive Gear, 39 Teeth
  • 14
    420834935 Mating Gear, 39 Teeth
    Mating Gear, 39 Teeth
  • 15
    420240780 Hex. Collar Screw M12 X 65
    Hex. Collar Screw M12 X 65
  • 16
    420855070 Camshaft Sprocket, 48 Teeth
    Camshaft Sprocket, 48 Teeth
  • 17
    295501043 Magneto Screw Kit
    Magneto Screw Kit
  • 18
    420898530 Camshaft Chain
    Camshaft Chain
  • 19
    420460710 Cover
    Cover
  • 20
    420627494 Thrust Washer
    Thrust Washer
  • 21
    420936430 Chain Guide
    Chain Guide
  • 22
    420236355 Chain Guide
    Chain Guide
  • 23
    420641258 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 24
    420247101 Distance Sleeve
    Distance Sleeve
  • 25
    420936490 Chain Tension Guide
    Chain Tension Guide
  • 26
    415129408 Chain Tensioner
    Chain Tensioner
  • 27
    420430622 O-Ring
    O-Ring
  • 28
    420640455 Plug Screw
    Plug Screw
  • B
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • O
    293600112 Synthetic Oil 4T 12X1 L.
    Synthetic Oil 4T 12X1 L.
  • Y
    420297616 Klueber Paste, 46 MR 401, 60 g
    Klueber Paste, 46 MR 401, 60 g
