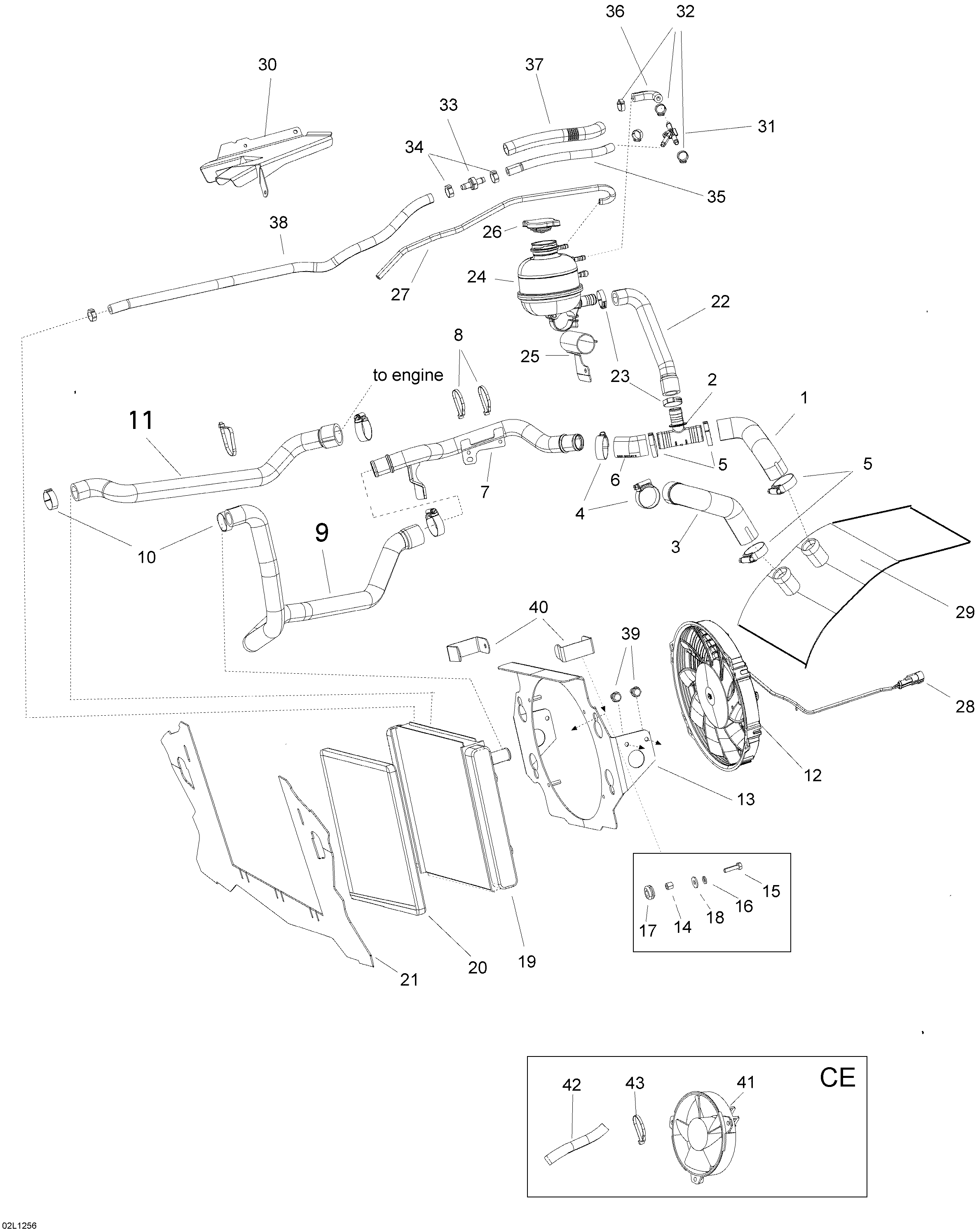

01- Cooling System для BRP Lynx Adventure GT 1200 4-TEC CE - 2012
-
№АртикулНазвание
-
1509000779 Hose, T-Fitting->Front radiatorHose, T-Fitting->Front radiator
-
2509000372 T-FittingT-Fitting
-
3509000592 Hose, Thermostat (Radiator)Hose, Thermostat (Radiator)
-
4509000443 Aba Gear ClampAba Gear Clamp
-
5509000181 Oetiker Gear ClampOetiker Gear Clamp
-
6509000675 Radiator HoseRadiator Hose
-
7509000724 Water Pipe AluminumWater Pipe Aluminum
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9509000780 Hose, Front Radiator ( Air Engine)Hose, Front Radiator ( Air Engine)
-
10293650016 Tridon ClampTridon Clamp
-
11509000781 Hose, Front Radiator (Engine)Hose, Front Radiator (Engine)
-
12509000838 Cooling FanCooling Fan
-
13509000791 Radiator supportRadiator support
-
14605453745 BushingBushing
-
15207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
1620052 Washer-lockWasher-lock
-
17293720053 GrommetGrommet
-
18234062410 Flat Washer 6 mmFlat Washer 6 mm
-
19509000787 RadiatorRadiator
-
20509000718 InsulationInsulation
-
21509000700 Air DeflectorAir Deflector
-
22509000663 Filling HoseFilling Hose
-
23509000442 Gear ClampGear Clamp
-
24509000421 Coolant TankCoolant Tank
-
25509000809 Reservoir SupportReservoir Support
-
26509000180 Pressure CapPressure Cap
-
27276000048 Hose 6 mmHose 6 mm
-
28278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
29509000645 Radiator TunnelRadiator Tunnel
-
30509000751 Heat DeflectorHeat Deflector
-
31293710140 Y-FittingY-Fitting
-
32293650047 Crimp ClampCrimp Clamp
-
33509000153 Check ValveCheck Valve
-
34293650140 Oetiker ClampOetiker Clamp
-
35509000765 HoseHose
-
36509000776 HoseHose
-
37415080000 Tubing 16 mmTubing 16 mm
-
38509000407 Hose 8 mmHose 8 mm
-
3940870 ScrewScrew
-
40509000703 Deflector ClipDeflector Clip
-
41509000796 Cooling FanCooling Fan
-
42503192967 Tubing, CorrugatedTubing, Corrugated
-
43293750002 Tie-Rap 142 mmTie-Rap 142 mm
