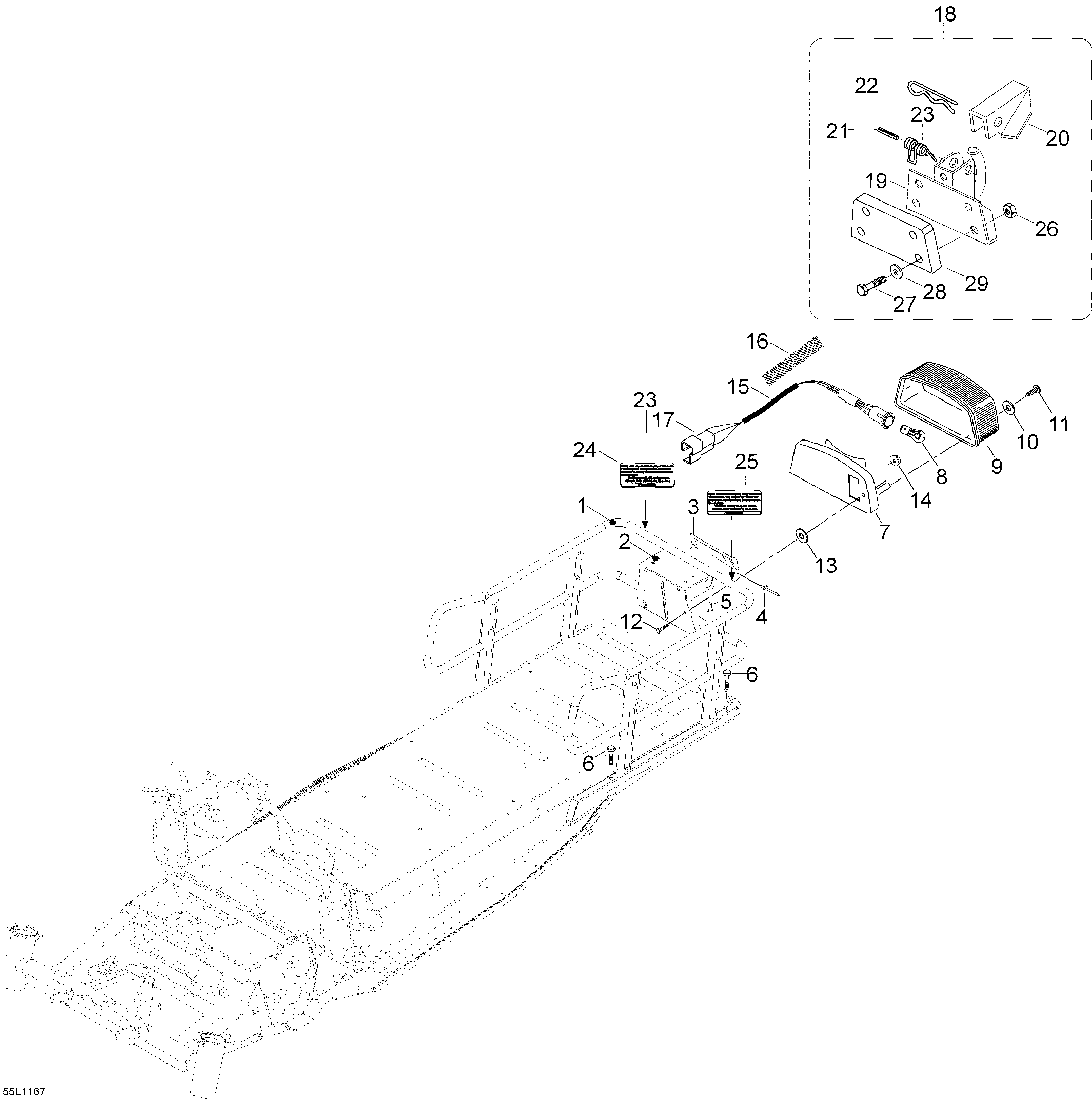

09- Rack для BRP Lynx YETI Pro 550 - 2011

  • №
    Артикул
    Название
  • 1
    605356494 Rack
    Rack
  • 2
    605256018 Bracket, tail lamp
    Bracket, tail lamp
  • 3
    605356019 Protector plate
    Protector plate
  • 4
    36010 Rivet
    Rivet
  • 5
    40332 Socket head screw M6 x 16
    Socket head screw M6 x 16
  • 6
    40316 Hex. screw M8 x 20
    Hex. screw M8 x 20
  • 7
    515175397 Lamp Housing
    Lamp Housing
  • 8
    520000758 Bulb
    Bulb
  • 9
    414513700 Lens
    Lens
  • 10
    414516400 Washer
    Washer
  • 11
    209632540 Phillips Tapping Screw M3.9 X 25
    Phillips Tapping Screw M3.9 X 25
  • 12
    40064 Locking screw M6 x 40
    Locking screw M6 x 40
  • 13
    20077 Washer A8,4
    Washer A8,4
  • 14
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 15
    605354685 Harness ass'y, tail light
    Harness ass'y, tail light
  • 16
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 17
    42269 Connector housing (6 circuit)
    Connector housing (6 circuit)
  • 18
    5344156 Hitch ass'y. Includes 18-23
    Hitch ass'y. Includes 18-23
  • 20
    5440767 Lock
    Lock
  • 21
    41012 Pin
    Pin
  • 22
    41029 Hair pin
    Hair pin
  • 23
    545693 Spring
    Spring
  • 24
    605448799 Pulling Bar Decal
    Pulling Bar Decal
  • 25
    5447929 Instruction label
    Instruction label
  • 26
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 27
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 28
    40009 Hex. screw M8 x 50
    Hex. screw M8 x 50
  • 29
    605351510 Spacer
    Spacer
