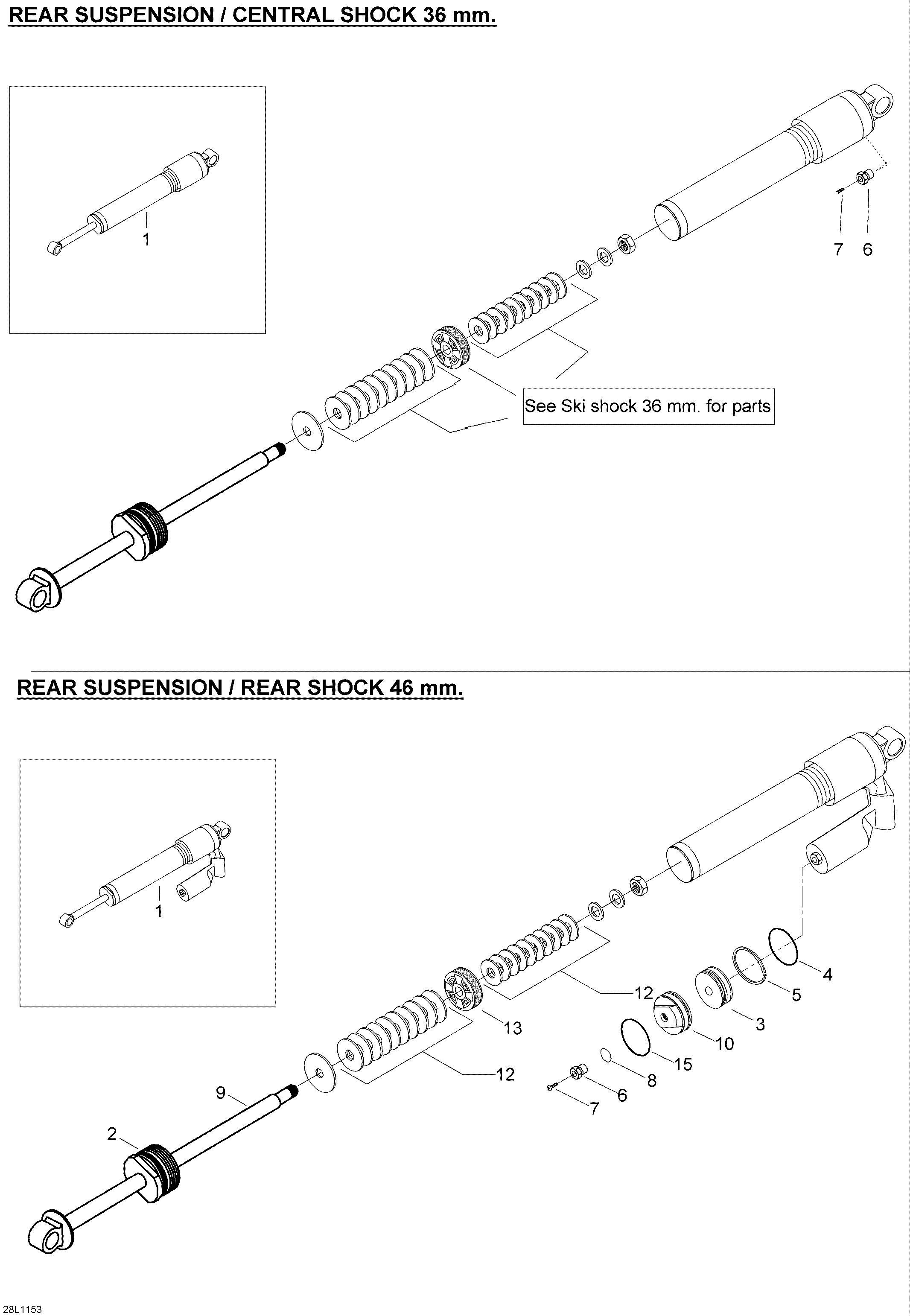

07- Take Apart Shock rear для BRP Lynx Xtrim BoonDocker 800R E-TEC - 2011

  • №
    Артикул
    Название
  • 1
    619330003 Shock, front arm (503192200)
    Shock, front arm (503192200)
  • 1
    619330005 Shock, rear arm (503192303)
    Shock, rear arm (503192303)
  • 2
    230060 Seal carrier assy 40 mm.
    Seal carrier assy 40 mm.
  • 4
    415093807 O-Ring
    O-Ring
  • 5
    503189006 Piston Ring
    Piston Ring
  • 6
    505070398 Air Valve Ring
    Air Valve Ring
  • 7
    505070399 Screw
    Screw
  • 8
    505070400 O-Ring
    O-Ring
  • 9
    619300021 Rod ass'y, rear arm
    Rod ass'y, rear arm
  • 10
    619300009 Seal carrier assy
    Seal carrier assy
  • 12
    619300060 Shim 40 mm. Shim 40 mm. 17 X 0,114
    Shim 40 mm. Shim 40 mm. 17 X 0,114
  • 12
    619300069 Shim 40 mm. Shim 40 mm. 17 X 0,203
    Shim 40 mm. Shim 40 mm. 17 X 0,203
  • 12
    619300068 Shim 40 mm. Shim 40 mm. 18 X 0,114
    Shim 40 mm. Shim 40 mm. 18 X 0,114
  • 12
    619300067 Shim 40 mm. Shim 40 mm. 18 X 0,152
    Shim 40 mm. Shim 40 mm. 18 X 0,152
  • 12
    230029 Shim 40 mm. Shim 40 mm. 20 X 0,114
    Shim 40 mm. Shim 40 mm. 20 X 0,114
  • 12
    230030 Shim 40 mm. Shim 40 mm. 20 X 0,152
    Shim 40 mm. Shim 40 mm. 20 X 0,152
  • 12
    230031 Shim 40 mm. Shim 40 mm. 20 X 0,203
    Shim 40 mm. Shim 40 mm. 20 X 0,203
  • 12
    230032 Shim 40 mm. Shim 40 mm. 20 X 0,254
    Shim 40 mm. Shim 40 mm. 20 X 0,254
  • 12
    619300097 Shim 40 mm. Shim 40 mm. 20 X 0,305
    Shim 40 mm. Shim 40 mm. 20 X 0,305
  • 12
    503189011 Leaf Valve O22 X 0.114 (C46)
    Leaf Valve O22 X 0.114 (C46)
  • 12
    619300140 Shim 40 mm. Shim 40 mm. 22 X 0,152
    Shim 40 mm. Shim 40 mm. 22 X 0,152
  • 12
    619300098 Shim 40 mm. Shim 40 mm. 22 X 0,203
    Shim 40 mm. Shim 40 mm. 22 X 0,203
  • 12
    503189014 Leaf Valve O22 X 0.254 (C46)
    Leaf Valve O22 X 0.254 (C46)
  • 12
    503189015 Leaf Valve O22 X 0.305 (C46)
    Leaf Valve O22 X 0.305 (C46)
  • 12
    503189016 Leaf Valve O24 X 0.114 (C46)
    Leaf Valve O24 X 0.114 (C46)
  • 12
    503189017 Leaf Valve O24 X 0.152 (C46)
    Leaf Valve O24 X 0.152 (C46)
  • 12
    503189018 Leaf Valve O24 X 0.203 (C46)
    Leaf Valve O24 X 0.203 (C46)
  • 12
    503189019 Leaf Valve O24 X 0.254 (C46)
    Leaf Valve O24 X 0.254 (C46)
  • 12
    503189020 Leaf Valve O24 X 0.305 (C46)
    Leaf Valve O24 X 0.305 (C46)
  • 12
    503189021 Leaf Valve O26 X 0.114 (C46)
    Leaf Valve O26 X 0.114 (C46)
  • 12
    619300141 Shim 40 mm. Shim 40 mm. 26 X 0,152
    Shim 40 mm. Shim 40 mm. 26 X 0,152
  • 12
    503189023 Leaf Valve O26 X 0.203 (C46)
    Leaf Valve O26 X 0.203 (C46)
  • 12
    619300099 Shim 40 mm. Shim 40 mm. 26 X 0,254
    Shim 40 mm. Shim 40 mm. 26 X 0,254
  • 12
    619300100 Shim 40 mm. Shim 40 mm. 26 X 0,305
    Shim 40 mm. Shim 40 mm. 26 X 0,305
  • 12
    619300101 Shim 40 mm. Shim 40 mm. 28 X 0,114
    Shim 40 mm. Shim 40 mm. 28 X 0,114
  • 12
    503189027 Leaf Valve O28 X 0.152 (C46)
    Leaf Valve O28 X 0.152 (C46)
  • 12
    619300102 Shim 40 mm. Shim 40 mm. 28 X 0,203
    Shim 40 mm. Shim 40 mm. 28 X 0,203
  • 12
    619300103 Shim 40 mm. Shim 40 mm. 28 X 0,254
    Shim 40 mm. Shim 40 mm. 28 X 0,254
  • 12
    503189030 Leaf Valve O28 X 0.305 (C46)
    Leaf Valve O28 X 0.305 (C46)
  • 12
    503189031 Leaf Valve O30 X 0.114 (C46)
    Leaf Valve O30 X 0.114 (C46)
  • 12
    619300104 Shim 40 mm. Shim 40 mm. 30 X 0,152
    Shim 40 mm. Shim 40 mm. 30 X 0,152
  • 12
    503189033 Leaf Valve O30 X 0.203 (C46)
    Leaf Valve O30 X 0.203 (C46)
  • 12
    619300113 Shim 40 mm. Shim 40 mm. 30 X 0,254
    Shim 40 mm. Shim 40 mm. 30 X 0,254
  • 12
    503189035 Leaf Valve O30 X 0.305 (C46)
    Leaf Valve O30 X 0.305 (C46)
  • 12
    230082 Shim 40 mm. Shim 40 mm. 32 X 0,114
    Shim 40 mm. Shim 40 mm. 32 X 0,114
  • 12
    619300059 Shim 40 mm. Shim 40 mm. 32 X 0,254
    Shim 40 mm. Shim 40 mm. 32 X 0,254
  • 12
    230033 Shim 40 mm. Shim 40 mm. 34 X 0,114
    Shim 40 mm. Shim 40 mm. 34 X 0,114
  • 12
    230034 Shim 40 mm. Shim 40 mm. 34 X 0,152
    Shim 40 mm. Shim 40 mm. 34 X 0,152
  • 12
    230035 Shim 40 mm. Shim 40 mm. 34 X 0,203
    Shim 40 mm. Shim 40 mm. 34 X 0,203
  • 12
    230036 Shim 40 mm. Shim 40 mm. 34 X 0,254
    Shim 40 mm. Shim 40 mm. 34 X 0,254
  • 12
    619300070 Shim 40 mm. Shim 40 mm. 34 X 0,305
    Shim 40 mm. Shim 40 mm. 34 X 0,305
  • 12
    230037 Shim 40 mm. Shim 40 mm. 36 X 0,114
    Shim 40 mm. Shim 40 mm. 36 X 0,114
  • 12
    503189036 Leaf Valve O36 X 0.152 (C46)
    Leaf Valve O36 X 0.152 (C46)
  • 12
    619300142 Shim 40 mm. Shim 40 mm. 36 X 0,203
    Shim 40 mm. Shim 40 mm. 36 X 0,203
  • 12
    503189038 Leaf Valve O36 X 0.254 (C46)
    Leaf Valve O36 X 0.254 (C46)
  • 12
    619300105 Shim 40 mm. Shim 40 mm. 36 X 0,305
    Shim 40 mm. Shim 40 mm. 36 X 0,305
  • 12
    230040 Shim 40 mm. Shim 40 mm. 38 X 0,152
    Shim 40 mm. Shim 40 mm. 38 X 0,152
  • 12
    230041 Shim 40 mm. Shim 40 mm. 38 X 0,203
    Shim 40 mm. Shim 40 mm. 38 X 0,203
  • 12
    230042 Shim 40 mm. Shim 40 mm. 38 X 0,254
    Shim 40 mm. Shim 40 mm. 38 X 0,254
  • 12
    619300106 Shim 40 mm. Shim 40 mm. 38 X 0,305
    Shim 40 mm. Shim 40 mm. 38 X 0,305
  • 12
    503189039 Leaf Valve O40 X 0.152 (C46)
    Leaf Valve O40 X 0.152 (C46)
  • 12
    503189040 Leaf Valve O40 X 0.203 (C46)
    Leaf Valve O40 X 0.203 (C46)
  • 12
    503189041 Leaf Valve O40 X 0.254 (C46)
    Leaf Valve O40 X 0.254 (C46)
  • 12
    619300107 Shim 40 mm. Shim 40 mm. 40 X 0,305
    Shim 40 mm. Shim 40 mm. 40 X 0,305
  • 13
    503189003 Piston, O1.2 (C46)
    Piston, O1.2 (C46)
  • 13
    503189002 Piston, O1.7 (C46)
    Piston, O1.7 (C46)
  • 13
    230039 Piston 40 mm. 2.0 mm
    Piston 40 mm. 2.0 mm
  • 13
    230043 Piston 40 mm. 0 mm.
    Piston 40 mm. 0 mm.
