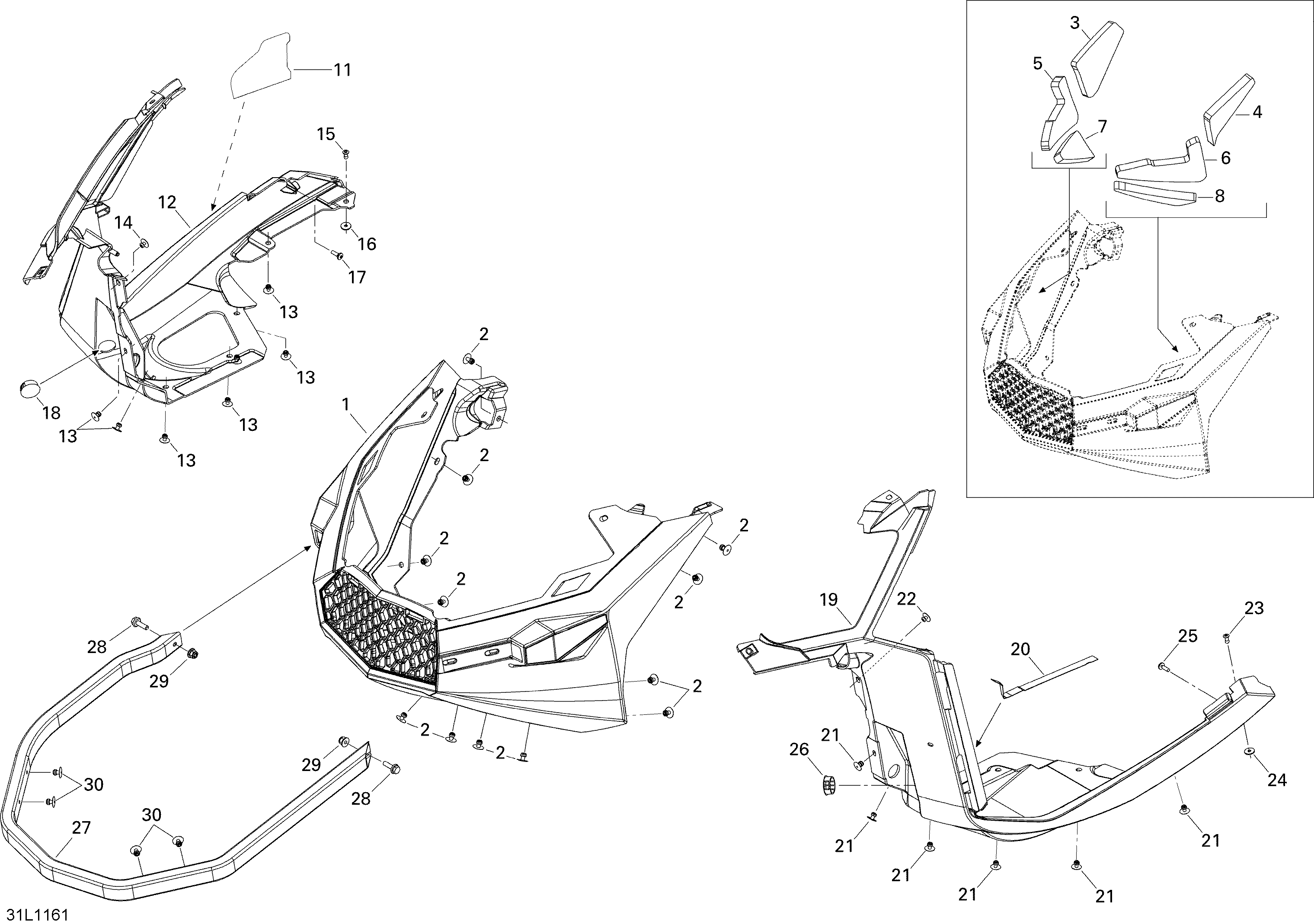

09- Bottom Pan для BRP Lynx Xtrim 550 - 2011

  • №
    Артикул
    Название
  • 1
    502006971 Front Bottom Pan, Depp Black
    Front Bottom Pan, Depp Black
  • 2
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3
    502007210 RH Foam Upper
    RH Foam Upper
  • 4
    502007211 LH Foam Upper
    LH Foam Upper
  • 5
    502007212 RH Middle Foam
    RH Middle Foam
  • 6
    502007213 LH Middle Foam
    LH Middle Foam
  • 7
    502007214 RH Lower Foam
    RH Lower Foam
  • 8
    502007215 LH Lower Foam
    LH Lower Foam
  • 11
    508000686 Heat shield
    Heat shield
  • 12
    502006914 RH Bottom Pan
    RH Bottom Pan
  • 13
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 14
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 15
    293150104 Pop Rivet 3/16''. Black-Black Model
    Pop Rivet 3/16''. Black-Black Model
  • 15
    390402300 Pop Rivet 3/16''. White-White Model
    Pop Rivet 3/16''. White-White Model
  • 16
    517124300 Washer
    Washer
  • 17
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 18
    414916600 Nylon Cap
    Nylon Cap
  • 19
    502007051 LH Bottom Pan
    LH Bottom Pan
  • 20
    293250087 Gasket, Neoprene
    Gasket, Neoprene
  • 21
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 22
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 23
    619300134 Pop Rivet 3/16''. Black-Black Model
    Pop Rivet 3/16''. Black-Black Model
  • 23
    390402300 Pop Rivet 3/16''. White-White Model
    Pop Rivet 3/16''. White-White Model
  • 24
    517124300 Washer
    Washer
  • 25
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 26
    414916600 Nylon Cap
    Nylon Cap
  • 27
    502006944 Front Bumper
    Front Bumper
  • 28
    619300095 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 29
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 30
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
