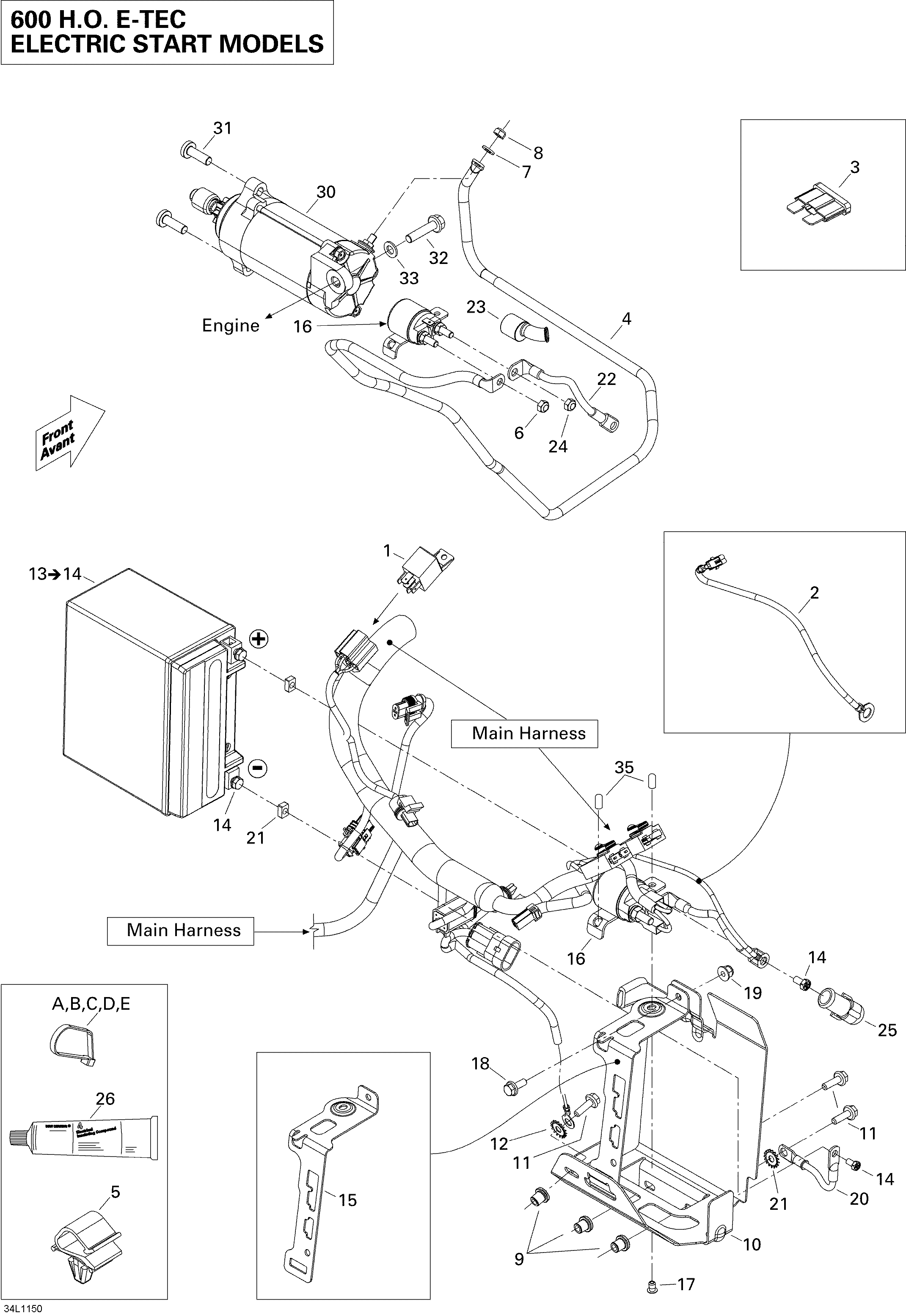

10- Battery And Starter 600 HO ETEC для BRP Lynx 49 Ranger 600 E-TEC - 2011

  • №
    Артикул
    Название
  • 1
    410113200 Relay
    Relay
  • 2
    515176744 Fuse Battery Wire
    Fuse Battery Wire
  • 3
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 4
    515176785 Battery Wire
    Battery Wire
  • 5
    515176795 Clip
    Clip
  • 6
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 7
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 8
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 9
    293450275 Insert
    Insert
  • 10
    515176886 Battery Support Ass'y
    Battery Support Ass'y
  • 11
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 12
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 13
    410301203 Battery, 18 Amperes. Includes 13 to 14
    Battery, 18 Amperes. Includes 13 to 14
  • 14
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 15
    515176368 Battery Strip
    Battery Strip
  • 16
    515176501 Starter Relay
    Starter Relay
  • 17
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 18
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 19
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 20
    515176358 Ground Wire
    Ground Wire
  • 21
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 22
    515176556 Battery Wire
    Battery Wire
  • 23
    515175919 Protector Cap
    Protector Cap
  • 24
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 25
    710000495 Protector Cap
    Protector Cap
  • 26
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 30
    515176858 Starter Ass'y
    Starter Ass'y
  • 31
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 32
    207583544 Hex Flanged Screw M8 X 35, Scotch Grip
    Hex Flanged Screw M8 X 35, Scotch Grip
  • 33
    250200008 Flat Washer 8 mm
    Flat Washer 8 mm
  • 35
    515176141 Cap
    Cap
  • A
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • B
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • C
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • D
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • E
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
