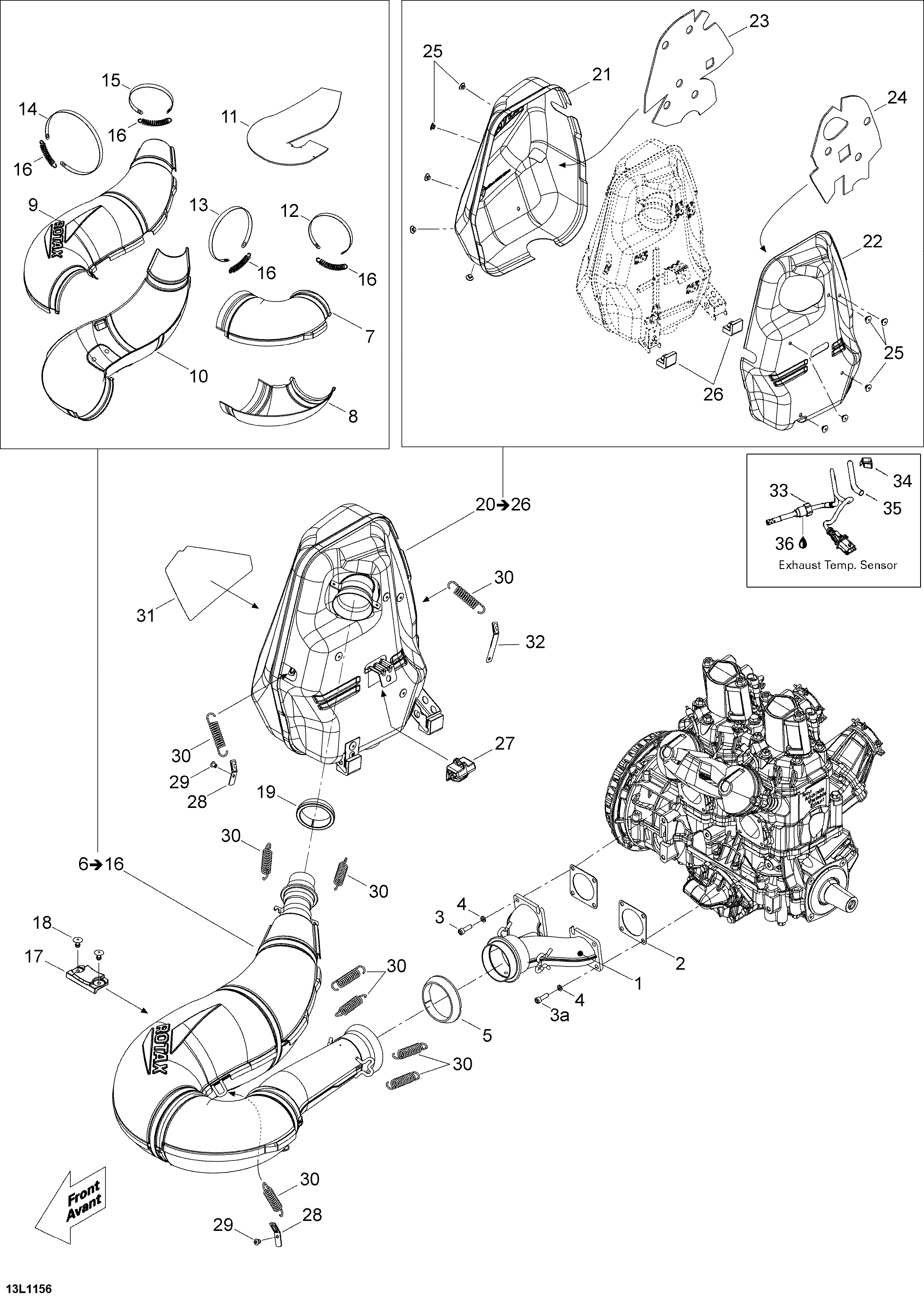

01- Exhaust System для BRP Lynx Adventure GT 600 E-TEC - 2011

  • №
    Артикул
    Название
  • 1
    420673420 Exhaust Manifold
    Exhaust Manifold
  • 2
    420850552 Gasket
    Gasket
  • 3
    514054626 Socket Screw M6 X 22, Scotch Grip
    Socket Screw M6 X 22, Scotch Grip
  • 4
    514053953 Washer
    Washer
  • 5
    514053487 Exhaust Gasket
    Exhaust Gasket
  • 6
    514054727 Tuned Pipe Ass'y. Includes 6 to 16. Inclus 6 a 16
    Tuned Pipe Ass'y. Includes 6 to 16. Inclus 6 a 16
  • 7
    514054485 Front Upper Enveloppe
    Front Upper Enveloppe
  • 8
    514054486 Front Lower Enveloppe
    Front Lower Enveloppe
  • 9
    514054590 Rear Upper Half Enveloppe
    Rear Upper Half Enveloppe
  • 10
    514054279 Rear Lower Half Enveloppe
    Rear Lower Half Enveloppe
  • 11
    514054487 Insulating Wool
    Insulating Wool
  • 12
    514054408 Retaining Strap
    Retaining Strap
  • 13
    514054409 Retaining Strap
    Retaining Strap
  • 14
    514054410 Retaining Strap
    Retaining Strap
  • 15
    514053499 Retaining Strap
    Retaining Strap
  • 16
    514053643 Spring
    Spring
  • 17
    514054275 Bumper
    Bumper
  • 18
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 19
    514053812 Exhaust Gasket
    Exhaust Gasket
  • 20
    514054527 Silencer Ass'y. Includes 20 to 26. Inclus 20 a 26
    Silencer Ass'y. Includes 20 to 26. Inclus 20 a 26
  • 21
    514054434 RH Deflector
    RH Deflector
  • 22
    514054528 LH Deflector
    LH Deflector
  • 23
    514054298 RH Insulating Wool
    RH Insulating Wool
  • 24
    514054299 LH Insulating Wool
    LH Insulating Wool
  • 25
    390910000 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 26
    514054529 Lower Stopper
    Lower Stopper
  • 27
    514054606 Upper Stopper
    Upper Stopper
  • 28
    514054391 Spring Bracket
    Spring Bracket
  • 29
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 30
    514054226 Spring
    Spring
  • 31
    514054488 Reflective Sheet
    Reflective Sheet
  • 32
    514054616 Spring Bracket
    Spring Bracket
  • 33
    514054856 Exhaust Temperature Sensor
    Exhaust Temperature Sensor
  • 34
    414227300 Clip
    Clip
  • 35
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 36
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
