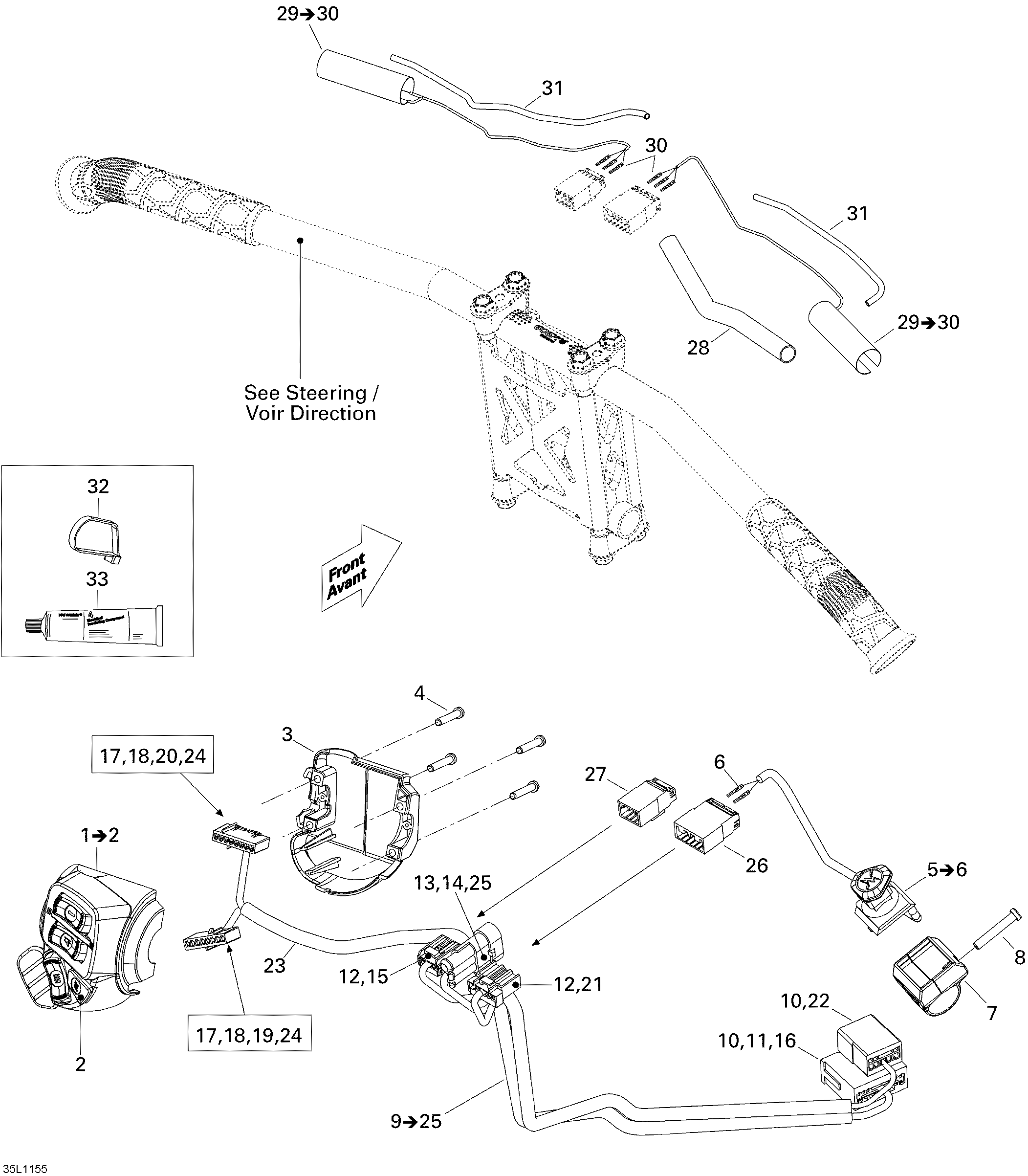

10- Steering Wiring Harness для BRP Lynx Adventure GT 1200 4-TEC - 2011

  • №
    Артикул
    Название
  • 1
    515177020 LH Housing
    LH Housing
  • 2
    515176088 Start/RER Button
    Start/RER Button
  • 3
    515175926 Housing Switch Plate
    Housing Switch Plate
  • 4
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 5
    515177061 Kill Switch
    Kill Switch
  • 6
    515175232 Male Terminal
    Male Terminal
  • 7
    515176825 Kill Switch Support
    Kill Switch Support
  • 8
    250000263 Torx Screw #8-18
    Torx Screw #8-18
  • 9
    515176868 Steering Wiring Harness Ass'y
    Steering Wiring Harness Ass'y
  • 10
    515175232 Male Terminal
    Male Terminal
  • 11
    515175273 Male Terminal
    Male Terminal
  • 12
    515175231 Female Terminal
    Female Terminal
  • 13
    710000568 Housing
    Housing
  • 14
    278001013 Wire Seal
    Wire Seal
  • 16
    515175720 Male Terminal Housing, 11 Circuits
    Male Terminal Housing, 11 Circuits
  • 17
    515175808 Female Terminal
    Female Terminal
  • 18
    515175809 Femelle Lock, 8 Circuits
    Femelle Lock, 8 Circuits
  • 19
    515175807 Female Terminal Housing 8 Circuits Black
    Female Terminal Housing 8 Circuits Black
  • 20
    515175810 Female Terminal Housing, 8 Circuits
    Female Terminal Housing, 8 Circuits
  • 21
    515175543 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 22
    515175817 Male Terminal Housing, 8 Circuits
    Male Terminal Housing, 8 Circuits
  • 23
    515175830 Low Temperature Tubing 1/2”
    Low Temperature Tubing 1/2”
  • 24
    515175941 Female Terminal
    Female Terminal
  • 25
    515176164 Male Terminal
    Male Terminal
  • 26
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 27
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 28
    515175830 Low Temperature Tubing 1/2”
    Low Temperature Tubing 1/2”
  • 29
    506152428 Heated Film, 25W
    Heated Film, 25W
  • 30
    515175232 Male Terminal
    Male Terminal
  • 31
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 32
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 32
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 33
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
