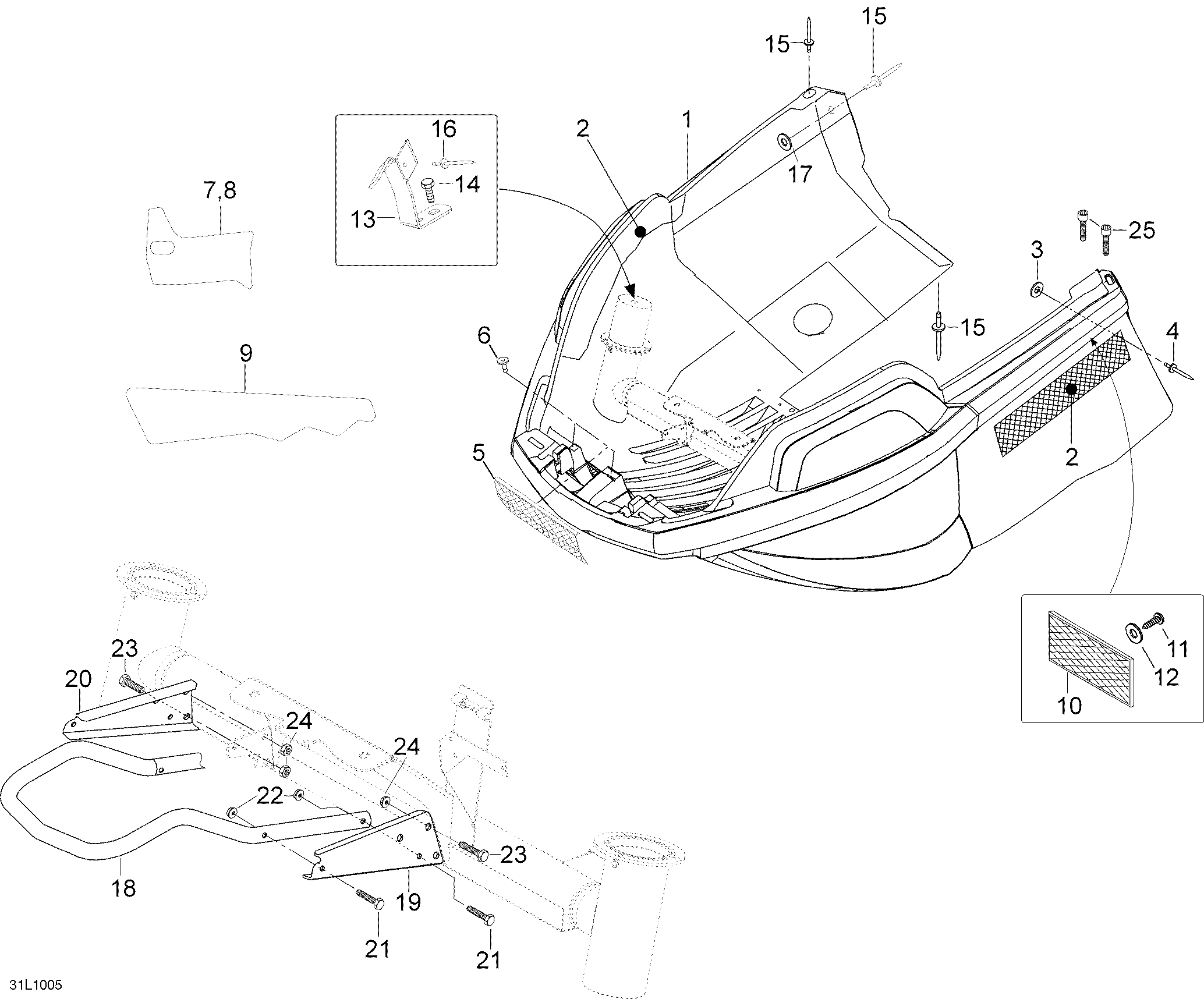

09- Bottom Pan для BRP Lynx YETI Pro 550 - 2010

  • №
    Артикул
    Название
  • 1
    605155742 Bottom Pan Ass'y. Includes 1 to 9
    Bottom Pan Ass'y. Includes 1 to 9
  • 2
    605354969 LH Side Grill
    LH Side Grill
  • 3
    20008 Washer 5,3 mm
    Washer 5,3 mm
  • 4
    36009 Rivet
    Rivet
  • 5
    605255513 Front Grill
    Front Grill
  • 6
    40847 Wronic-ruuvi MUP 4,2x13
    Wronic-ruuvi MUP 4,2x13
  • 7
    605255744 Bottom Pan Isolation RH
    Bottom Pan Isolation RH
  • 8
    605255746 Bottom Pan Isolation LH
    Bottom Pan Isolation LH
  • 9
    605255745 Bottom Pan Isolation RH
    Bottom Pan Isolation RH
  • 10
    414510200 Reflector, Amber
    Reflector, Amber
  • 11
    40063 Screw M5 x 12
    Screw M5 x 12
  • 12
    20018 Serrated lock washer A5,3
    Serrated lock washer A5,3
  • 13
    605354709 LH Bracket
    LH Bracket
  • 13
    605354710 RH Bracket
    RH Bracket
  • 14
    40401 Screw M6 x 10
    Screw M6 x 10
  • 15
    36037 Rivet
    Rivet
  • 16
    36087 Rivet
    Rivet
  • 17
    20008 Washer 5,3 mm
    Washer 5,3 mm
  • 18
    605255112 Bumper
    Bumper
  • 19
    605355113 LH Bumper Plate
    LH Bumper Plate
  • 20
    605355114 RH Bumper Plate
    RH Bumper Plate
  • 21
    40002 Hex. screw M6 x 40
    Hex. screw M6 x 40
  • 22
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 23
    40036 Hex. screw M8 x 20
    Hex. screw M8 x 20
  • 24
    33201 Elastic flanged nut M8
    Elastic flanged nut M8
  • 25
    40332 Screw M6 x 16
    Screw M6 x 16
