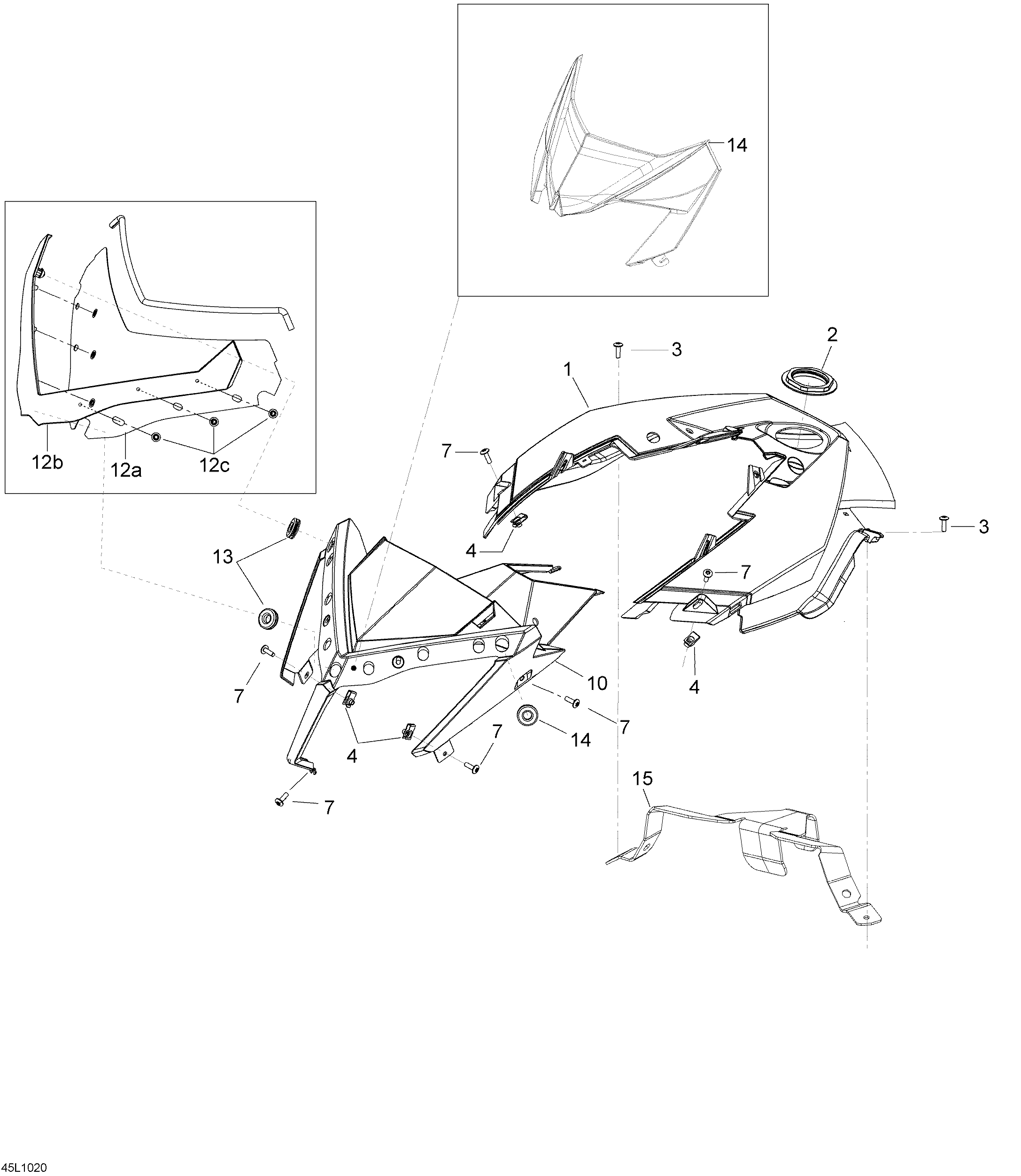

09- Windshield And Console для BRP Lynx Rave 600 - 2010
-
№АртикулНазвание
-
1517304523 ConsoleConsole
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9224061201 Flat WasherFlat Washer
-
10517303603 Indicator SupportIndicator Support
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12a517304292 WindshieldWindshield
-
12b860200089 Windshield SupportWindshield Support
-
12c732610072 Push NutPush Nut
-
13517303756 GrommetGrommet
-
14517303979 Headlamp coverHeadlamp cover
-
15517304230 Support plate for consoleSupport plate for console
