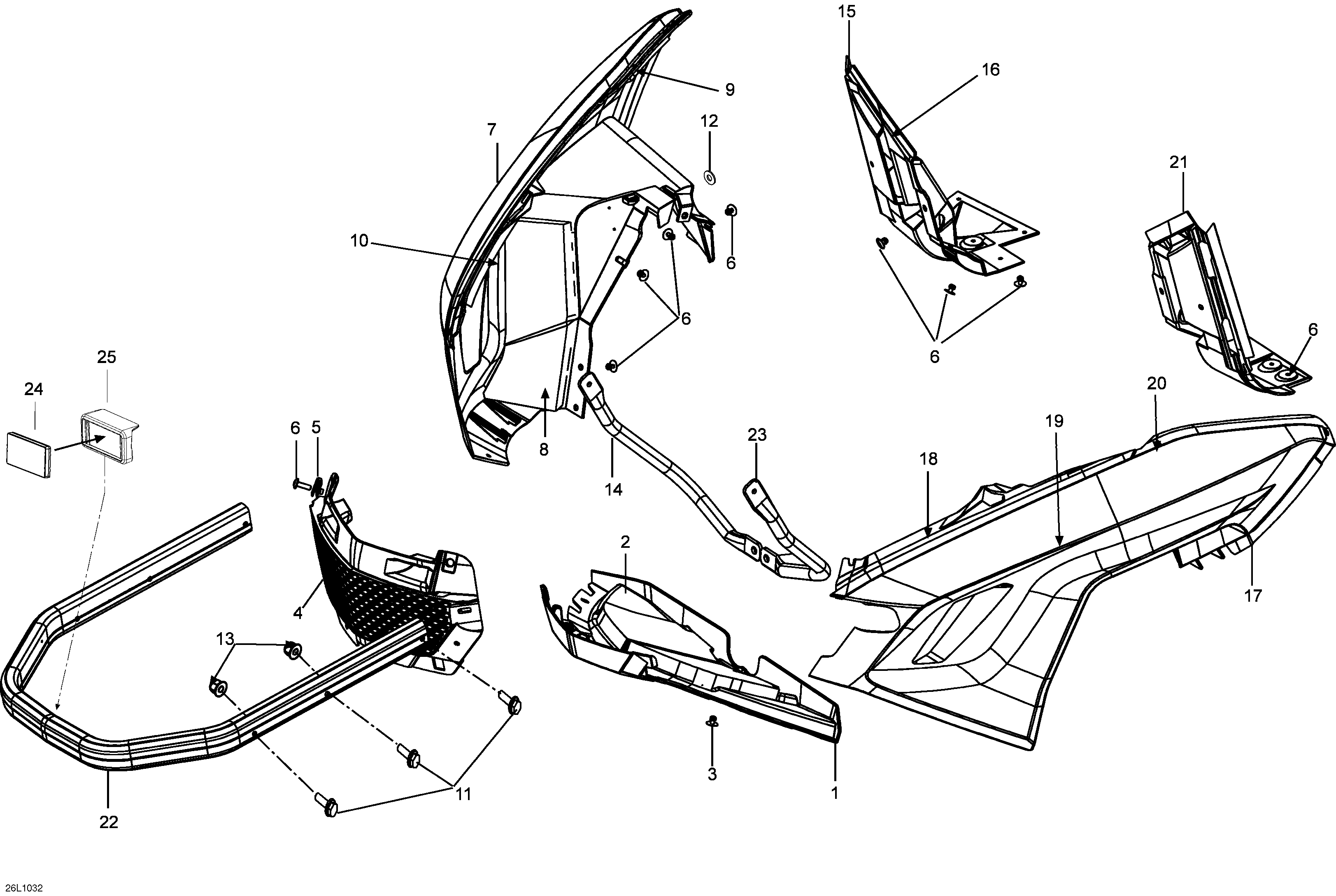

09- Bottom Pan для BRP Lynx Adventure GT 1200 4-TEC - 2010
-
№АртикулНазвание
-
1502007082 Bottom Pan FrontBottom Pan Front
-
2502007002 InsulatorInsulator
-
3293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502006913 Front GrillFront Grill
-
5417223164 Lever AxleLever Axle
-
6250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
7502007048 Bottom Pan, RH Ass'yBottom Pan, RH Ass'y
-
8502007006 InsulatorInsulator
-
9502007008 InsulatorInsulator
-
10502007009 InsulatorInsulator
-
11207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
12234052490 Washer M5Washer M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14502007015 RH Bumper SupportRH Bumper Support
-
15502007125 Bottom Pan Rear, RHBottom Pan Rear, RH
-
16502007038 Aluminium FoilAluminium Foil
-
17502007049 Bottom Pan, LH Ass'yBottom Pan, LH Ass'y
-
18502007003 InsulatorInsulator
-
19502007004 InsulatorInsulator
-
20502007005 InsulatorInsulator
-
21502007124 Bottom Pan Rear, LHBottom Pan Rear, LH
-
22502007083 BumberBumber
-
23502007014 LH Bumper SupportLH Bumper Support
-
2421118 Reflector (Bright)Reflector (Bright)
-
25520000871 Reflector SupportReflector Support
