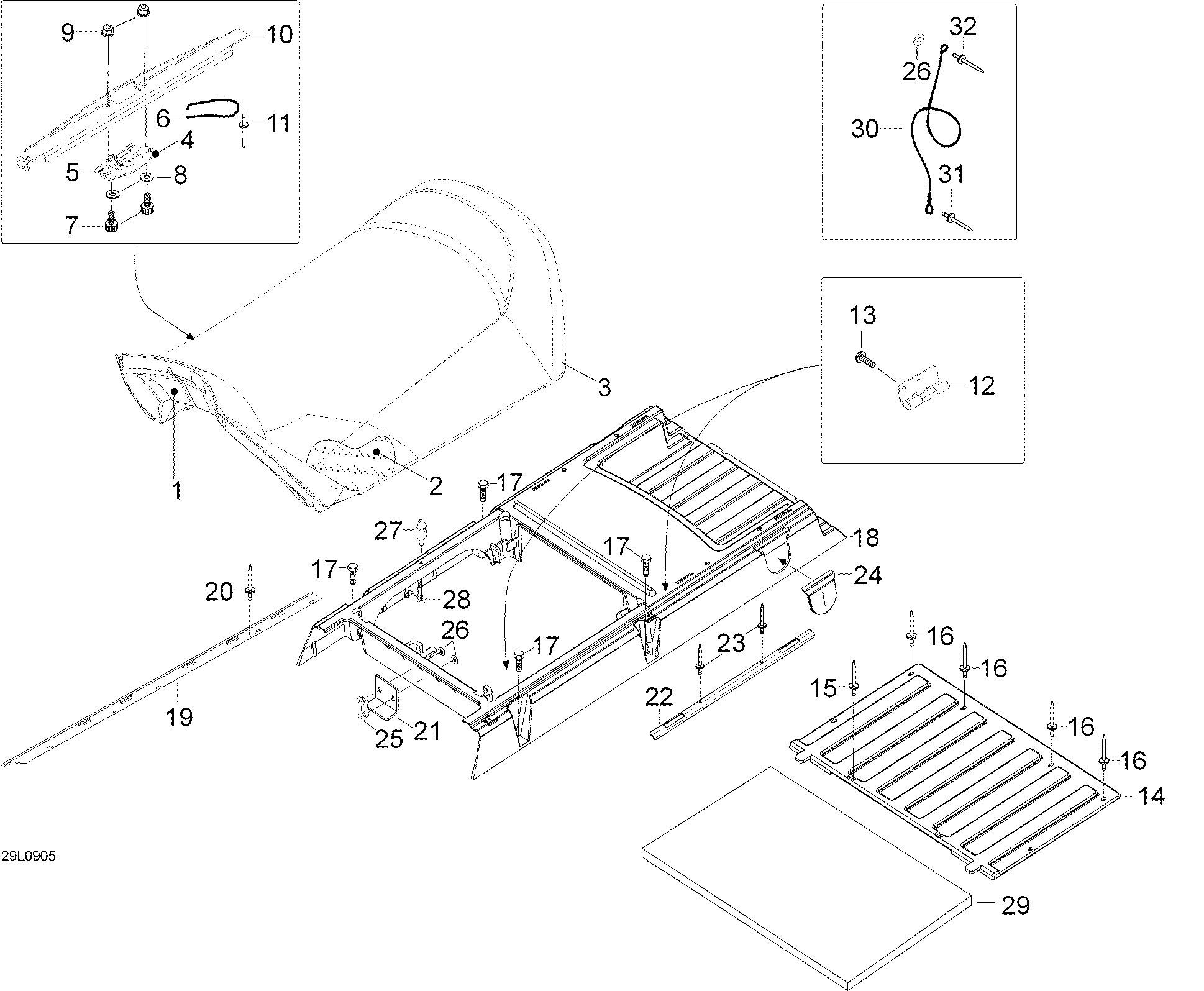

09- Seat для BRP Lynx YETI Pro 550 - 2009

-
№АртикулНазвание
-
1605251388 Seat base, frontSeat base, front
-
2605255689 Foam, frontFoam, front
-
3605255216 Cover, frontCover, front
-
4269700076 CoverCover
-
5269700077 HandleHandle
-
6269700017 SpringSpring
-
740276 Socket head screw M6 x 25Socket head screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10605352483 Support plateSupport plate
-
1136088 RivetRivet
-
12605351798 HingeHinge
-
1340890 Wronic-screw 4,2 x 16Wronic-screw 4,2 x 16
-
14605255587 CoverCover
-
1536036 RivetRivet
-
1636037 RivetRivet
-
17605640022 Elastic flanged screw M6 x 16Elastic flanged screw M6 x 16
-
18605155585 Seat baseSeat base
-
19605255761 Seat box tieSeat box tie
-
19605255762 Seat box tieSeat box tie
-
2036108 RivetRivet
-
21605455789 BracketBracket
-
22605355816 Support of the backseatSupport of the backseat
-
2336097 RivetRivet
-
24605355589 GrommetGrommet
-
2536009 RivetRivet
-
2620008 Washer A5,3Washer A5,3
-
27605452035 Lock pinLock pin
-
2833200 Elastic stop nut M6Elastic stop nut M6
-
29605355635 FoamFoam
-
30546777 Retainer cableRetainer cable
-
3136037 RivetRivet
-
3236009 RivetRivet
