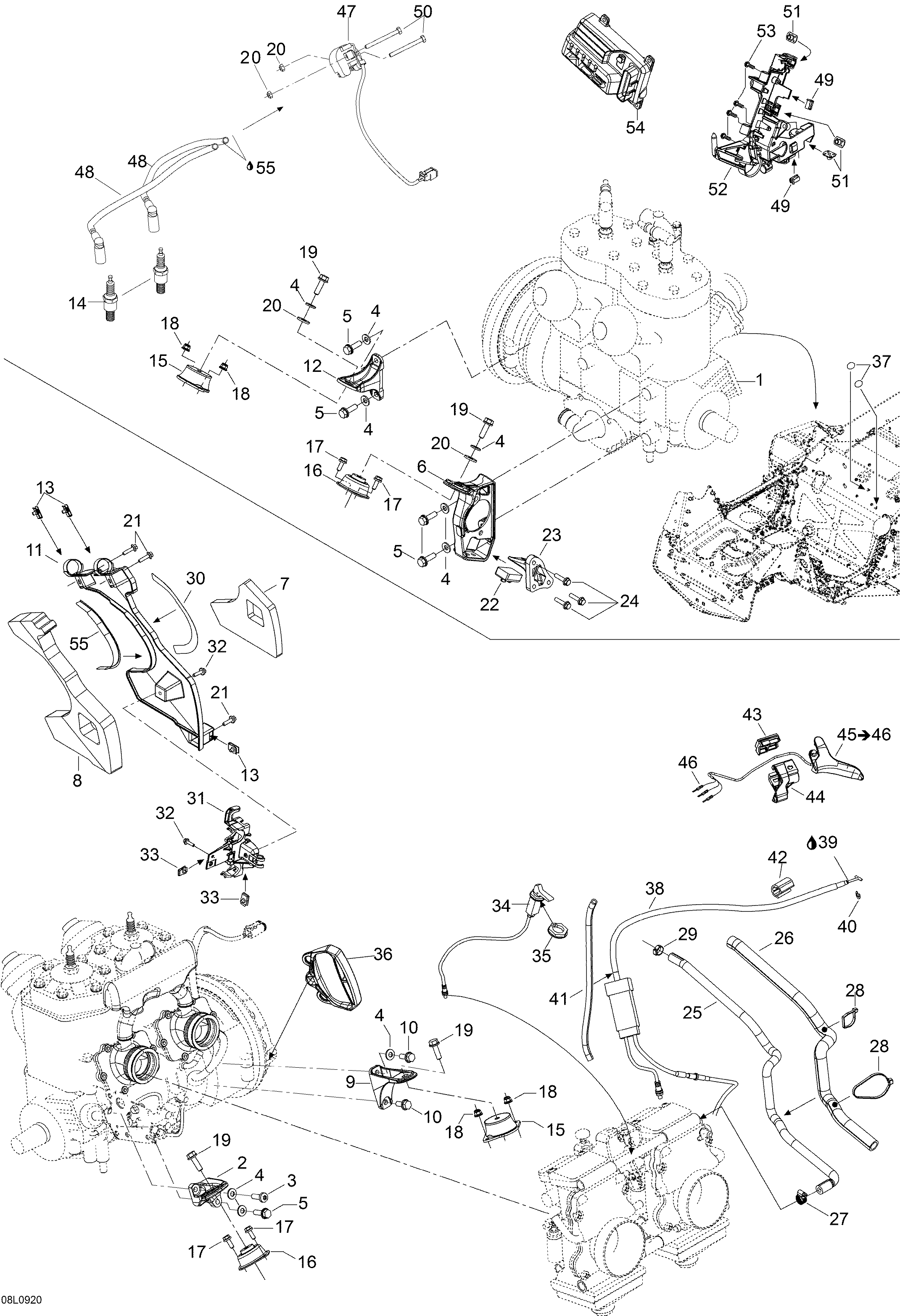

01- Engine And Engine Support для BRP Lynx Rave 600 - 2009

  • №
    Артикул
    Название
  • 1
    400509784 Engine 593 HOE
    Engine 593 HOE
  • 2
    512060478 Rear PTO Support
    Rear PTO Support
  • 3
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 4
    234281474 Conical Spring Washer M8
    Conical Spring Washer M8
  • 5
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 6
    512060406 Front PTO Support
    Front PTO Support
  • 7
    512060342 Upper Exterior Noise Foam
    Upper Exterior Noise Foam
  • 8
    512060343 Interior Noise Foam
    Interior Noise Foam
  • 9
    512060470 Rear MAG Support
    Rear MAG Support
  • 10
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 11
    512060338 Noise Shield
    Noise Shield
  • 12
    512060469 Front MAG Support
    Front MAG Support
  • 13
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 14
    512060354 Spark Plug
    Spark Plug
  • 15
    512060457 Rubber Mount
    Rubber Mount
  • 16
    512060387 Rubber Mount
    Rubber Mount
  • 17
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 18
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 19
    207583086 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 20
    503183200 Washer, Yellow
    Washer, Yellow
  • 21
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 22
    512060488 Stopper
    Stopper
  • 23
    512060489 Stopper Support
    Stopper Support
  • 24
    207562544 Hex. Flanged Screw M6 X 25, Scotch Grip
    Hex. Flanged Screw M6 X 25, Scotch Grip
  • 25
    512060347 Formed Hose Output TB
    Formed Hose Output TB
  • 26
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 27
    293650170 Hose Clamp
    Hose Clamp
  • 28
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 29
    293650025 Oetiker Clamp
    Oetiker Clamp
  • 30
    512060371 Reflective Sheet
    Reflective Sheet
  • 31
    512060298 Solenoid Support
    Solenoid Support
  • 32
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 33
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 34
    512060153 Choke
    Choke
  • 35
    512060016 Screw
    Screw
  • 36
    512060136 Starter Grip
    Starter Grip
  • 37
    518325560 Adhesive Patch
    Adhesive Patch
  • 38
    512060411 Throttle Cable
    Throttle Cable
  • 39
    293550006 Dielectric Grease, 150 G
    Dielectric Grease, 150 G
  • 40
    414274500 Circlip
    Circlip
  • 41
    513033288 Protector tube
    Protector tube
  • 42
    512060313 Protector
    Protector
  • 43
    512060198 Upper Housing
    Upper Housing
  • 44
    512060430 Lower Housing
    Lower Housing
  • 45
    512060466 Throttle Handle Ass'y. Includes 45 to 46
    Throttle Handle Ass'y. Includes 45 to 46
  • 46
    515175232 Male Terminal
    Male Terminal
  • 47
    512059968 Ignition Coil. Includes 47 to 48
    Ignition Coil. Includes 47 to 48
  • 48
    512060291 Ignition Cable, 200 mm
    Ignition Cable, 200 mm
  • 49
    410914600 Clip
    Clip
  • 50
    207663044 Hex. Flange Screw
    Hex. Flange Screw
  • 51
    233261414 Nut
    Nut
  • 52
    512060278 Support Coils
    Support Coils
  • 53
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 54
    512060433 Calibrated Module
    Calibrated Module
  • 55
    512060358 Reflective Sheet
    Reflective Sheet
