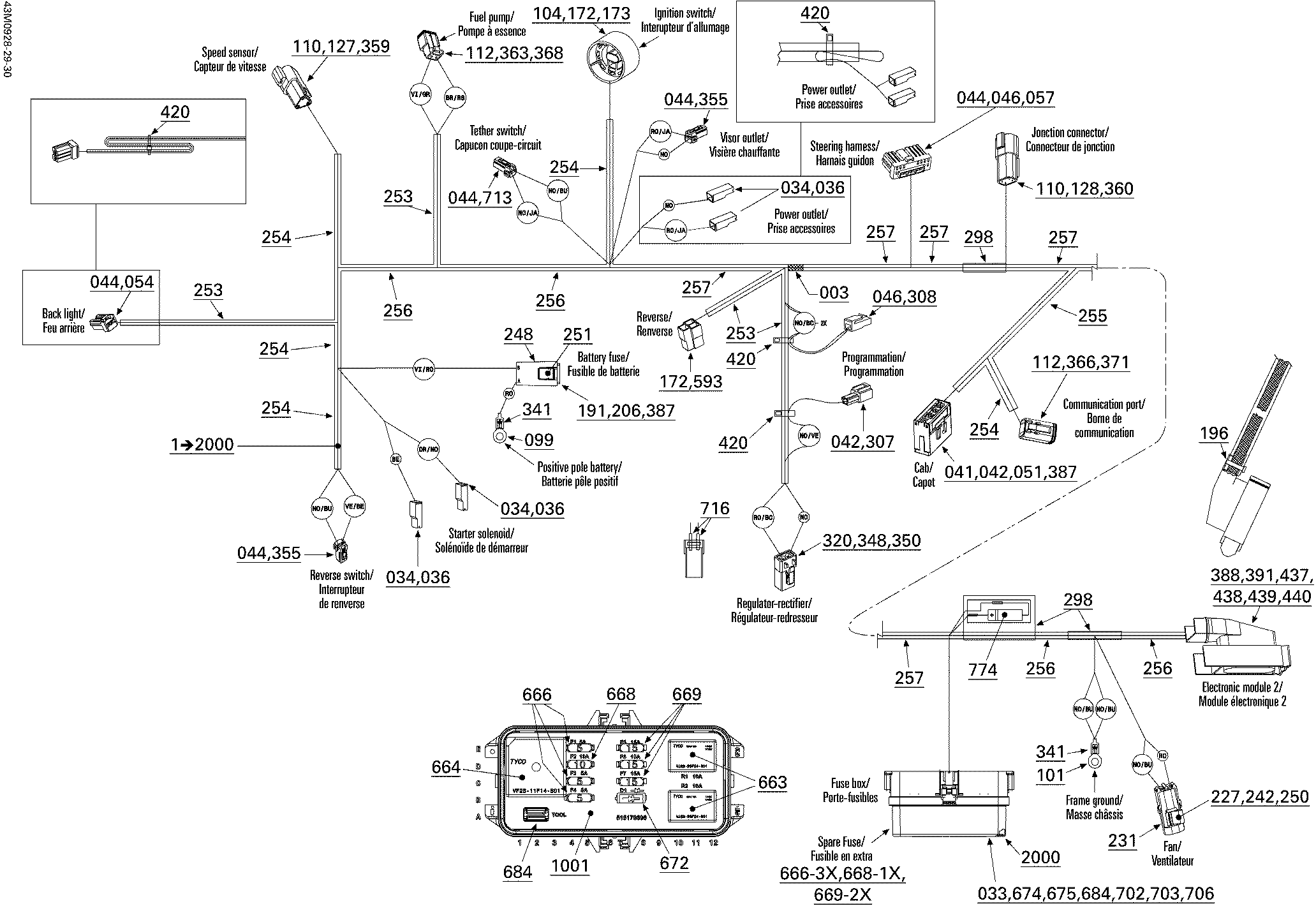

10- Electrical Harness для BRP Lynx Adventure V-800 - 2009

  • №
    Артикул
    Название
  • 1
    515176596 Frame Wiring Harness. Includes 1 to 2000
    Frame Wiring Harness. Includes 1 to 2000
  • 33
    278000999 Wire Seal
    Wire Seal
  • 34
    409010100 Female Terminal
    Female Terminal
  • 36
    409010400 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 41
    515175232 Male Terminal
    Male Terminal
  • 42
    515175273 Male Terminal
    Male Terminal
  • 44
    515175231 Female Terminal
    Female Terminal
  • 46
    515175282 Female Terminal
    Female Terminal
  • 51
    515175352 Male Terminal Housing, 13 Circuits
    Male Terminal Housing, 13 Circuits
  • 54
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 57
    515175350 Female Terminal Housing, 13 Circuits
    Female Terminal Housing, 13 Circuits
  • 99
    278000992 Open Barrel
    Open Barrel
  • 101
    278001392 Open Barrel
    Open Barrel
  • 104
    572150700 Female Terminal Housing, 9 Circuits
    Female Terminal Housing, 9 Circuits
  • 110
    278000631 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 127
    409207600 Male Lock, 3 Circuits
    Male Lock, 3 Circuits
  • 128
    278000636 Female Wedge, 4 Circuits
    Female Wedge, 4 Circuits
  • 172
    561503100 Female Terminal
    Female Terminal
  • 173
    561503100 Female Terminal
    Female Terminal
  • 191
    410917200 Fuse, 30 Amperes
    Fuse, 30 Amperes
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 206
    409004200 Female Terminal
    Female Terminal
  • 227
    409004300 Male Terminal
    Male Terminal
  • 231
    278000217 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 242
    278000218 Wire Seal
    Wire Seal
  • 248
    409004000 Fuse Holder
    Fuse Holder
  • 250
    409205600 Clip
    Clip
  • 251
    409014200 Clip
    Clip
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 257
    409901600 Tubing, 19 mm
    Tubing, 19 mm
  • 307
    515175509 Male Terminal Housing, 1 Circuit
    Male Terminal Housing, 1 Circuit
  • 308
    515175510 Female Terminal Housing, 1 Circuit
    Female Terminal Housing, 1 Circuit
  • 320
    515175567 Female Terminal
    Female Terminal
  • 348
    278001673 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 350
    278001671 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 359
    515175666 Male Housing
    Male Housing
  • 363
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 366
    515175673 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 368
    515175675 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 371
    515175678 Male Wedge, 6 Circuits
    Male Wedge, 6 Circuits
  • 387
    293550004 Dielectric Grease, 150 G
    Dielectric Grease, 150 G
  • 388
    278001750 Female Terminal
    Female Terminal
  • 391
    278001751 Male Housing, 41 Circuits
    Male Housing, 41 Circuits
  • 420
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 437
    515175886 Seal
    Seal
  • 438
    515175883 Latch
    Latch
  • 439
    515175884 Lock
    Lock
  • 440
    515175885 Cover
    Cover
  • 593
    515176069 Male Terminal Housing, 3 Circuits
    Male Terminal Housing, 3 Circuits
  • 663
    710000739 Relay, 10 Amperes
    Relay, 10 Amperes
  • 664
    710000740 Relay, 30 Amperes
    Relay, 30 Amperes
  • 666
    710000742 Little Fuse, 5 Amperes
    Little Fuse, 5 Amperes
  • 668
    710000744 Little Fuse
    Little Fuse
  • 669
    710000745 Little Fuse, 15 Amperes
    Little Fuse, 15 Amperes
  • 672
    710000748 Diode
    Diode
  • 674
    710000659 Fuse Cover
    Fuse Cover
  • 675
    710000660 Fuse Box Ass'y
    Fuse Box Ass'y
  • 684
    710000781 Fuse Puller
    Fuse Puller
  • 702
    710000836 Female Terminal
    Female Terminal
  • 703
    710000837 Female Terminal
    Female Terminal
  • 706
    710000840 Cap
    Cap
  • 713
    515176296 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 774
    515176483 Capacitor
    Capacitor
  • 1001
    515176606 Fuse Box Decal
    Fuse Box Decal
  • 2000
    278002172 Foam
    Foam
