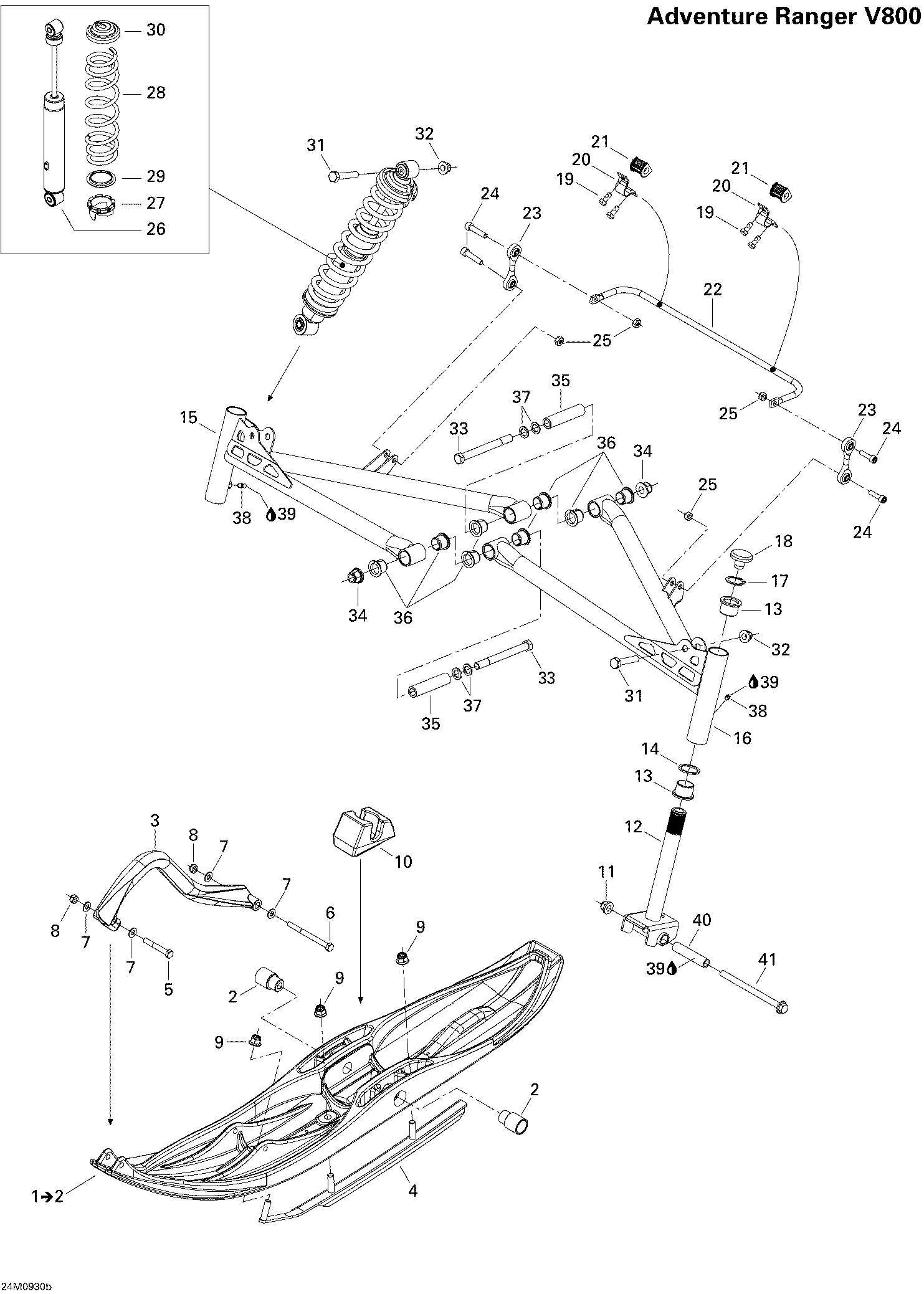

07- Front Suspension And Ski Ranger для BRP Lynx Adventure Ranger V-800 - 2009

№

Артикул

Название
1

605153775 Plastic Ski Ass'y. Includes 1 to 2

Plastic Ski Ass'y. Includes 1 to 2
2

605348392 Bushing

Bushing
3

505070963 Handle, Black

Handle, Black
4

619400005 Runner Carbide Kit

Runner Carbide Kit
5

207085044 Hex. Screw M8 X 50

Hex. Screw M8 X 50
6

207089044 Hex. Screw M8 X 90

Hex. Screw M8 X 90
7

234081410 Flat Washer 8 mm

Flat Washer 8 mm
8

232581414 Hex. Elastic Nut M8

Hex. Elastic Nut M8
9

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10
10

605348458 Ski Stopper

Ski Stopper
11

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10
12

505072001 Ski Leg

Ski Leg
13

505070003 Cushion

Cushion
14

505070004 Washer

Washer
15

505072193 RH Lower Arm

RH Lower Arm
16

505072194 LH Lower Arm

LH Lower Arm
17

371910400 Circlip

Circlip
18

572091300 Cap

Cap
19

250000281 Hexagonal Cap Screw

Hexagonal Cap Screw
20

506095800 Clamp

Clamp
21

505072225 Torsion Bushing

Torsion Bushing
22

505072226 Stabilisator

Stabilisator
23

505071479 Ball Joint

Ball Joint
24

205083544 Socket Head Screw M8 X 35

Socket Head Screw M8 X 35
25

232581414 Hex. Elastic Nut M8

Hex. Elastic Nut M8
26

505072190 Front Shock

Front Shock
27

503184400 Washer

Washer
28

505071838 Spring

Spring
29

505071954 Spring Guide

Spring Guide
30

706200881 Spring Stopper

Spring Stopper
31

207005544 Hex. Screw M10 X 55

Hex. Screw M10 X 55
32

233201414 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10
33

230022044 Hex. Screw M12 X 120

Hex. Screw M12 X 120
34

233221414 Hex. Flanged Elastic Nut M12

Hex. Flanged Elastic Nut M12
35

505071366 Bushing

Bushing
36

505072094 Bushing

Bushing
37

503189276 Washer

Washer
38

408200700 Grease Fitting

Grease Fitting
39

219700417 Synthetic Grease, 400 g

Synthetic Grease, 400 g
40

506133300 Spacer

Spacer
41

230604046 Hex. Flanged Screw M10 x 140

Hex. Flanged Screw M10 x 140
