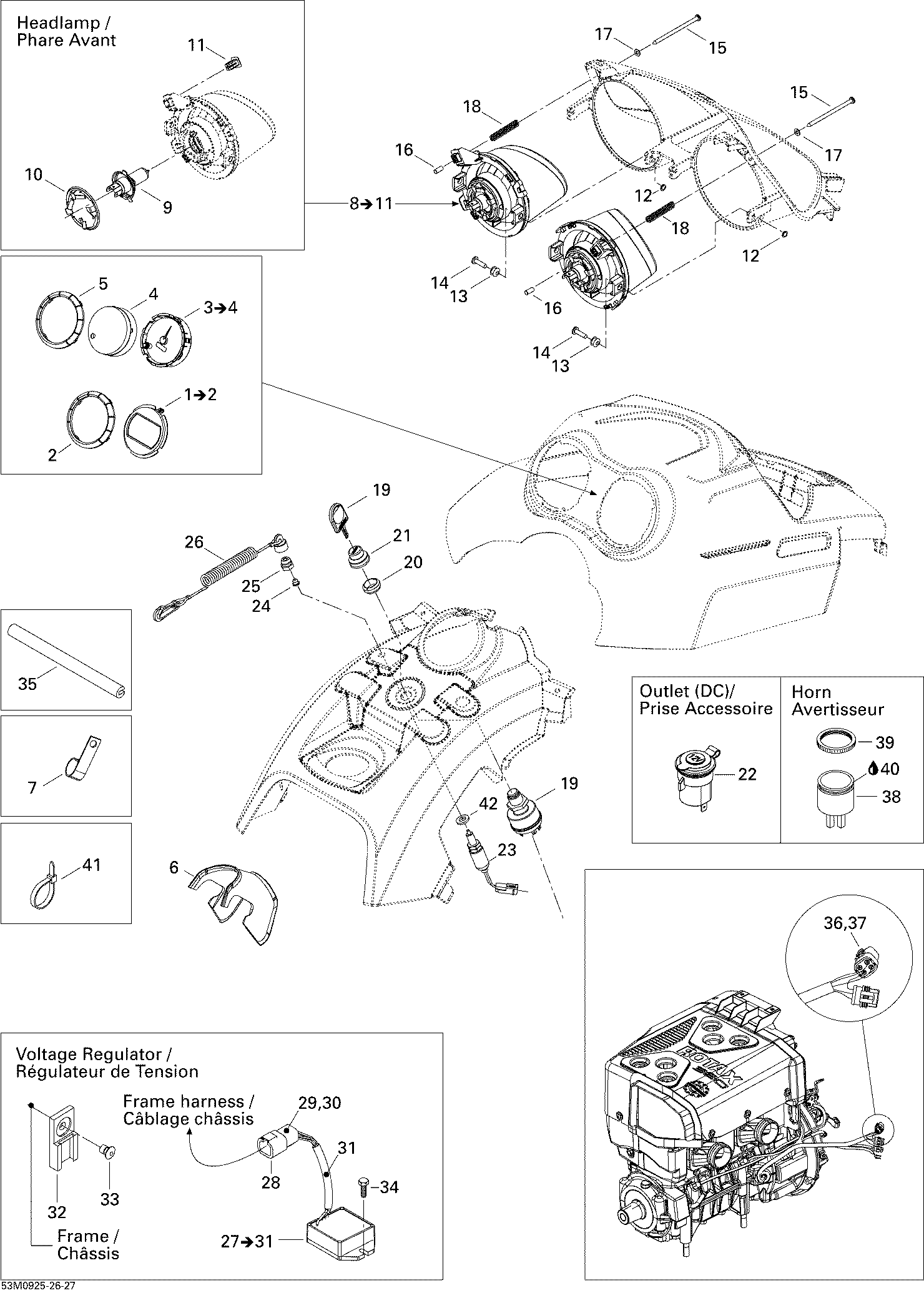

10- Electrical Accessories для BRP Lynx Adventure Ranger 550 RF - 2009
-
№АртикулНазвание
-
1515176373 Gauge Bottom Ring Ass'y. Includes 1 to 2Gauge Bottom Ring Ass'y. Includes 1 to 2
-
2515176242 Gauge RingGauge Ring
-
3515176476 Speedometer. Includes 3 to 4Speedometer. Includes 3 to 4
-
4415129319 LensLens
-
5515176242 Gauge RingGauge Ring
-
6515176321 ProtectorProtector
-
7515176457 ClampClamp
-
8515176168 RH Headlamp Ass'y. Includes 8 to 11RH Headlamp Ass'y. Includes 8 to 11
-
8515176169 LH Headlamp Ass'y. Includes 8 to 11LH Headlamp Ass'y. Includes 8 to 11
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515176385 Bulb HolderBulb Holder
-
11515176339 Plastic InsertPlastic Insert
-
12389804300 Push NutPush Nut
-
13515176289 Headlamp BushingHeadlamp Bushing
-
14390906200 Flat Head Steel RivetFlat Head Steel Rivet
-
15250000244 Phillips Screw #8 X 3''Phillips Screw #8 X 3''
-
16515176370 CapCap
-
17234051600 Flat Washer M5Flat Washer M5
-
18515176353 SpringSpring
-
19515176548 Ignition SwitchIgnition Switch
-
20410112100 Face NutFace Nut
-
21570013700 Switch BootSwitch Boot
-
22710001248 Outlet DCOutlet DC
-
23515175653 Brake SwitchBrake Switch
-
24570151100 Plunger CapPlunger Cap
-
42503183500 WasherWasher
-
25515145900 Switch NutSwitch Nut
-
26515176463 Cap Ass'yCap Ass'y
-
27515176189 Voltage Regulator. Includes 27 to 31Voltage Regulator. Includes 27 to 31
-
28278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
29515175568 Male TerminalMale Terminal
-
30278001478 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
31710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
32515175917 ClipClip
-
33293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
34210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
35509000263 TrimTrim
-
35271000110 Protection TrimProtection Trim
-
36278001473 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
37278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
38515176035 HornHorn
-
39414805101 Plastic NutPlastic Nut
-
40293800086 Silicone Sealant 5150, 300 mlSilicone Sealant 5150, 300 ml
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41293750009 Tie-Rap 173 mmTie-Rap 173 mm
