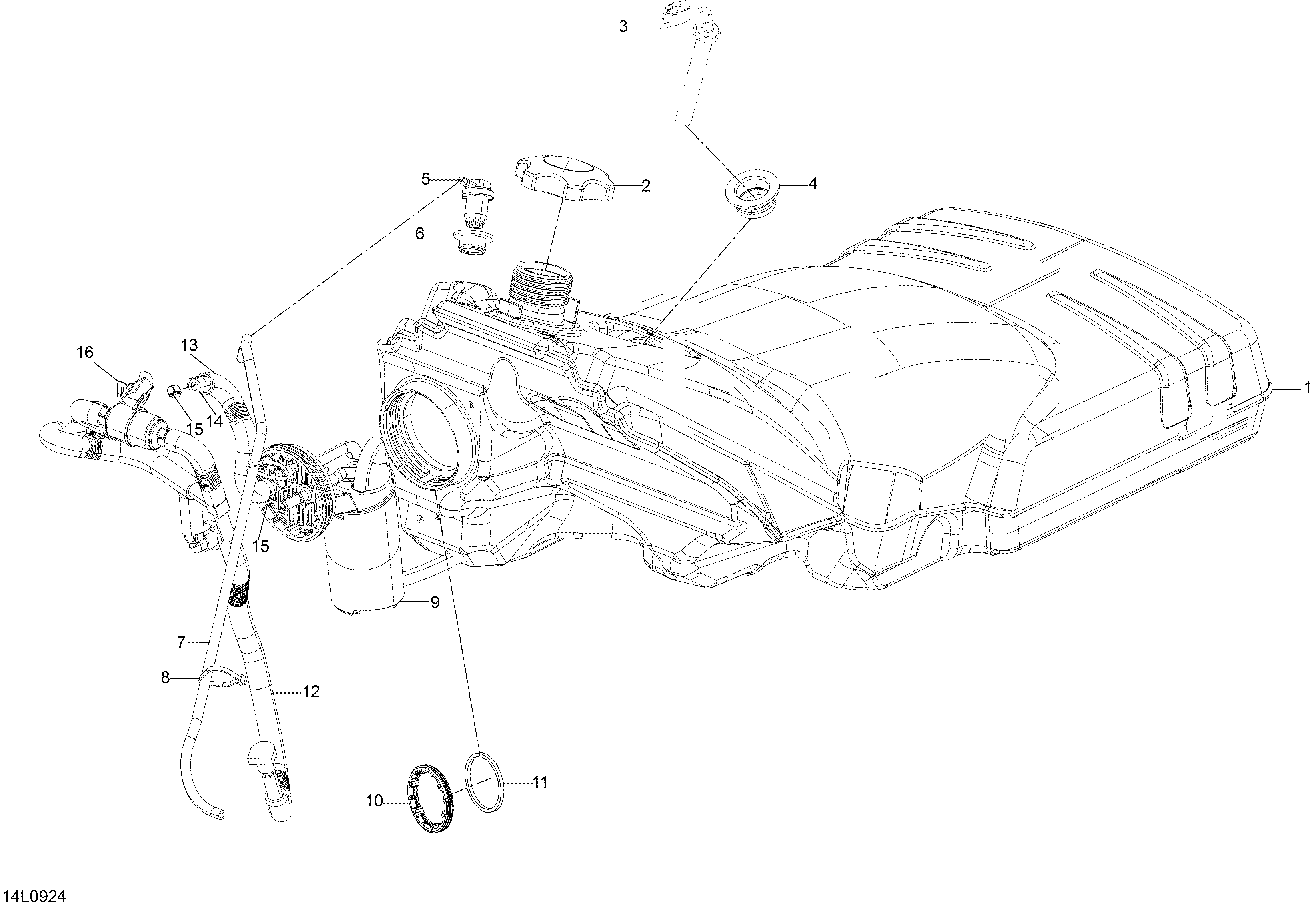

02- Fuel System для BRP Lynx Adventure GT 600 SDI - 2009
-
№АртикулНазвание
-
1513033386 Fuel tankFuel tank
-
2513033025 CapCap
-
3513033538 Fuel sensorFuel sensor
-
4293720058 GrommetGrommet
-
5513033188 Check valveCheck valve
-
6513033189 GrommetGrommet
-
7415080200 HOSEHOSE
-
8414115200 Tie rapTie rap
-
9513033508 Fuel pump ass'yFuel pump ass'y
-
10513033180 RingRing
-
11513033334 GasketGasket
-
12513033430 Hose ass'yHose ass'y
-
13415080000 Protector tubeProtector tube
-
14513033544 HoseHose
-
15293650047 ClampClamp
-
16513033336 Filter clipFilter clip
