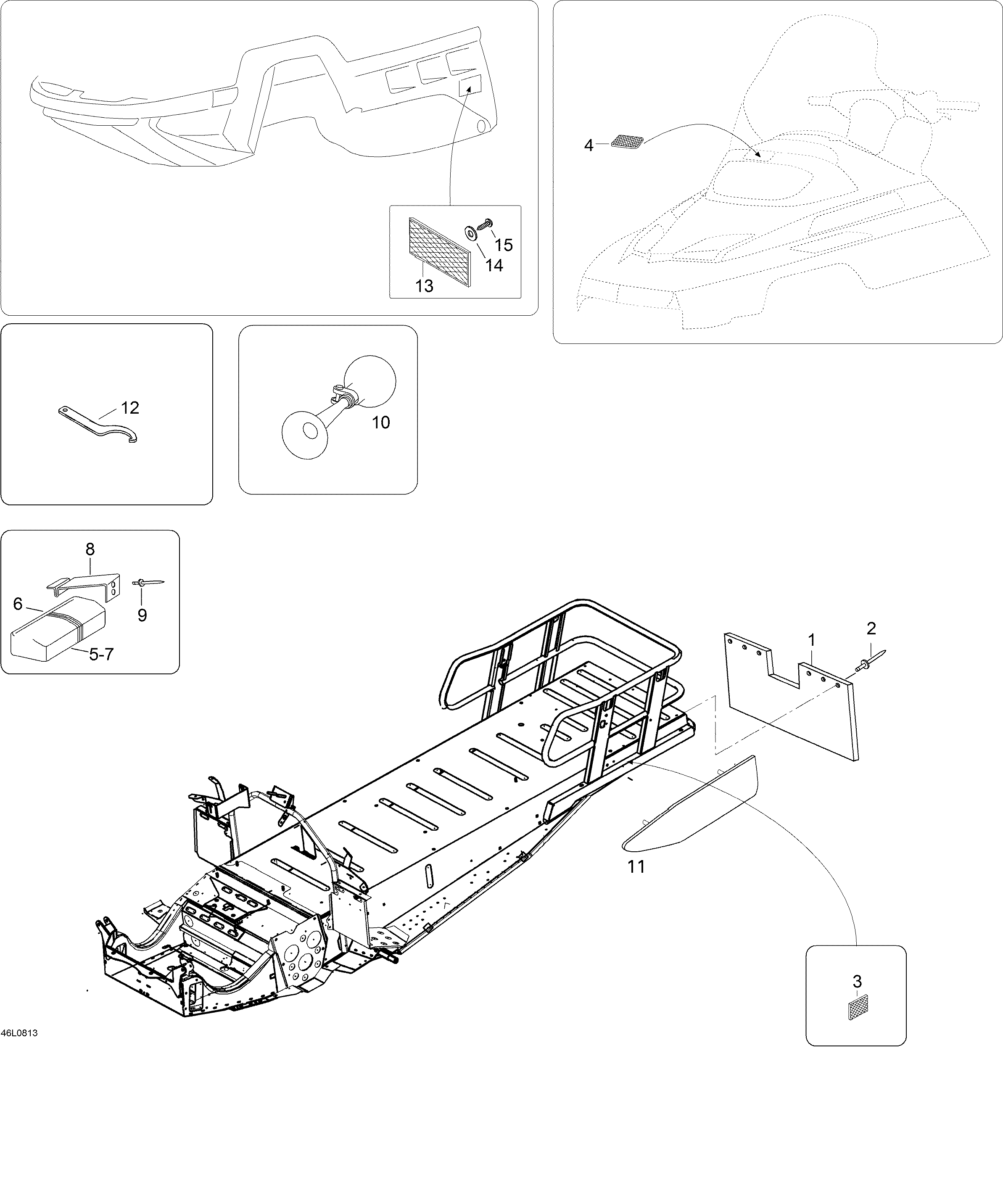

09- Utilities для BRP Lynx YETI V-800 - 2008

  • №
    Артикул
    Название
  • 1
    535437 Snowquard
    Snowquard
  • 2
    36036 Rivet
    Rivet
  • 3
    21121 Reflector, yellow
    Reflector, yellow
  • 4
    21118 Reflector, vit
    Reflector, vit
  • 5
    605352219 Toolset. Includes 5-7
    Toolset. Includes 5-7
  • 6
    708200041 Tool box
    Tool box
  • 7
    572036310 Cover, tool box
    Cover, tool box
  • 8
    5346728 Spring plate
    Spring plate
  • 9
    36108 Rivet
    Rivet
  • 10
    21003 Horn
    Horn
  • 11
    605354746 Side snowquard LH
    Side snowquard LH
  • 11
    605354747 Side snowquard RH
    Side snowquard RH
  • 12
    529035582 Tool
    Tool
  • 13
    414510200 Reflector, Amber
    Reflector, Amber
  • 14
    20018 Rerrated lock washer A5,3
    Rerrated lock washer A5,3
  • 15
    40070 Screw M5 x 10
    Screw M5 x 10
