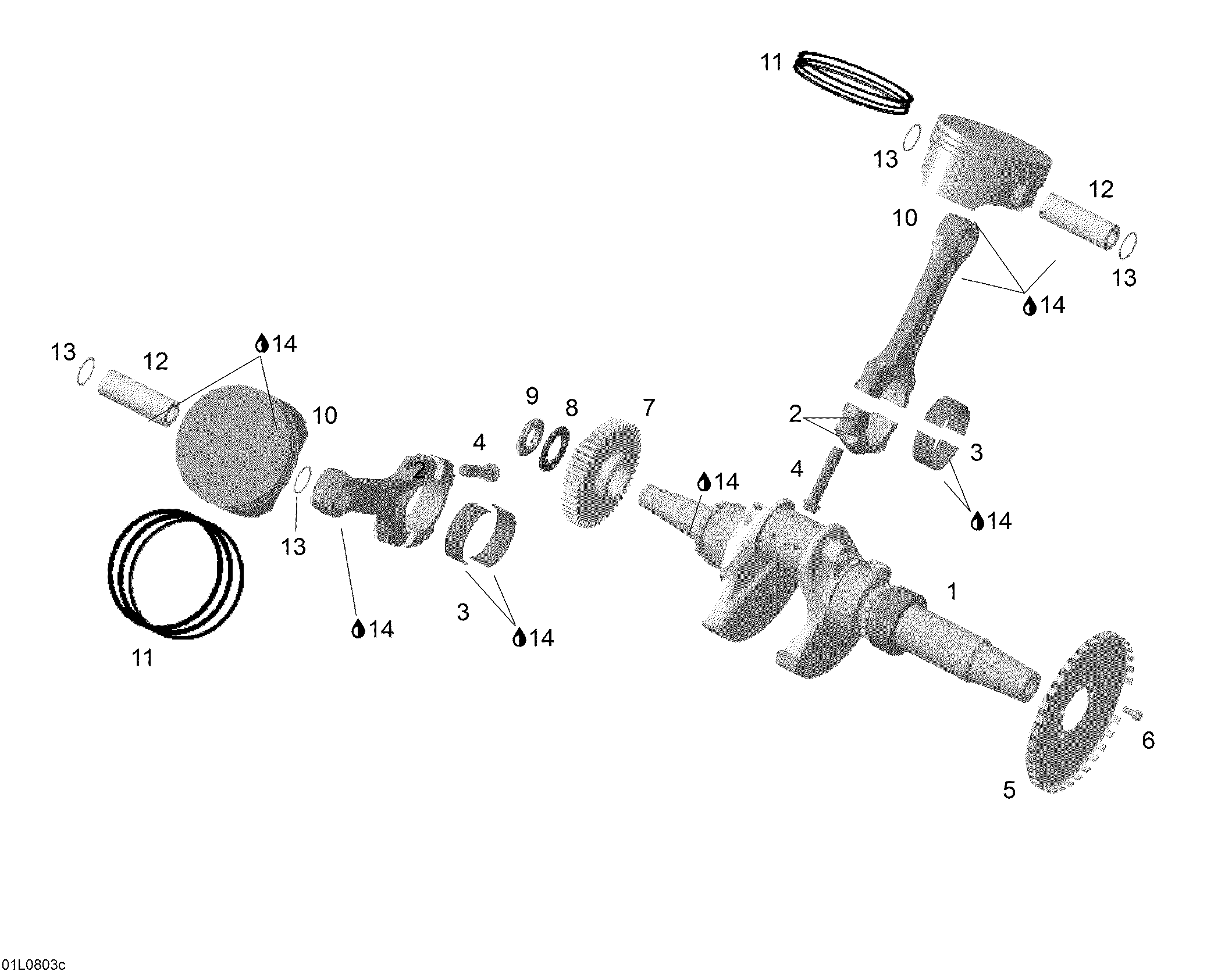

01- Crankshaft and piston для BRP Lynx YETI V-1300 - 2008
-
№АртикулНазвание
-
-420892110 Crankshaft ass’y. Includes 1 to 4Crankshaft ass’y. Includes 1 to 4
-
1420819087 CrankshaftCrankshaft
-
2420917525 Connecting rod ass’yConnecting rod ass’y
-
3420933520 Plain bearingPlain bearing
-
4420640990 Screw M10 x 1Screw M10 x 1
-
5420966850 Trigger wheelTrigger wheel
-
6420640541 Screw M5 x 12Screw M5 x 12
-
7420834446 Drive gear (45 teeth)Drive gear (45 teeth)
-
8420245860 Spring washerSpring washer
-
9420242871 Nut M22Nut M22
-
10420890087 Piston assy 99.96 mmPiston assy 99.96 mm
-
11420891124 Piston set ring (standard)Piston set ring (standard)
-
12420216250 Piston pinPiston pin
-
13420845580 Monohook circlipMonohook circlip
-
14293600054 Engine oil, 0W40, 12 x 1 literEngine oil, 0W40, 12 x 1 liter
