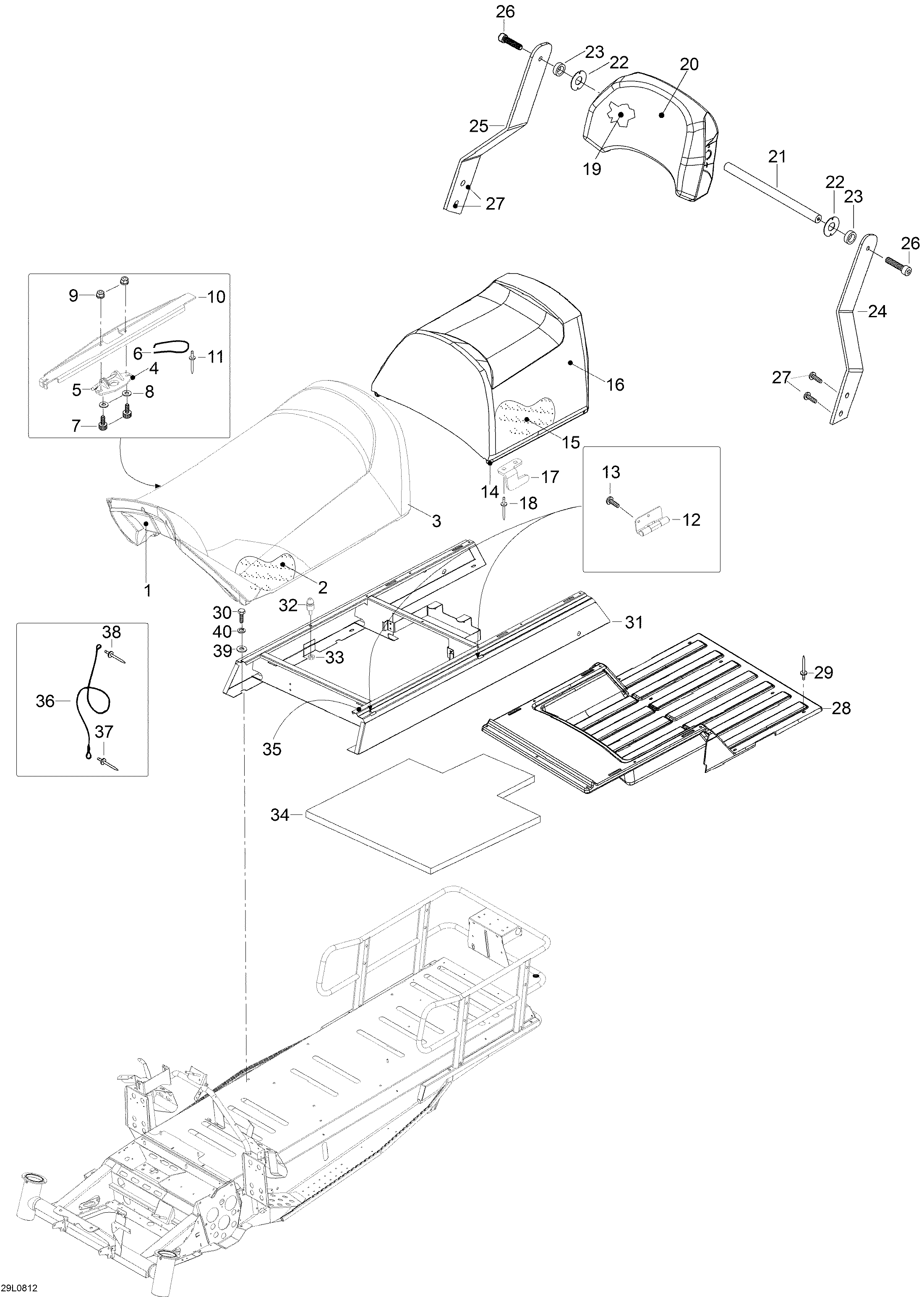

09- Seat для BRP Lynx YETI Pro V-800 - 2008

  • №
    Артикул
    Название
  • 1
    605251388 Seat base, front
    Seat base, front
  • 2
    605254497 Foam, front
    Foam, front
  • 3
    605254494 Cover, front
    Cover, front
  • 4
    269700076 Cover
    Cover
  • 5
    269700077 Handle
    Handle
  • 6
    269700017 Spring
    Spring
  • 7
    40276 Socket head screw M6 x 25
    Socket head screw M6 x 25
  • 8
    20003 Washer A6,4
    Washer A6,4
  • 9
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 10
    605352483 Support plate
    Support plate
  • 11
    36088 Rivet
    Rivet
  • 12
    605351798 Hinge
    Hinge
  • 13
    40890 Wronic-screw 4,2 x 16
    Wronic-screw 4,2 x 16
  • 14
    605251390 Seat base, rear. Only available as kit P/N 605155187
    Seat base, rear. Only available as kit P/N 605155187
  • 15
    605254498 Foam, rear. Only available as kit P/N 605155187
    Foam, rear. Only available as kit P/N 605155187
  • 16
    605254496 Cover, rear. Only available as kit P/N 605155187
    Cover, rear. Only available as kit P/N 605155187
  • 17
    605351808 L.H. Locking hook. Only available as kit P/N 605155187
    L.H. Locking hook. Only available as kit P/N 605155187
  • 17
    605352007 R.H. Locking hook. Only available as kit P/N 605155187
    R.H. Locking hook. Only available as kit P/N 605155187
  • 18
    36087 Rivet. Only available as kit P/N 605155187
    Rivet. Only available as kit P/N 605155187
  • 19
    605254497 Foam. Only available as kit P/N 605155187
    Foam. Only available as kit P/N 605155187
  • 20
    605353881 Cover. Only available as kit P/N 605155187
    Cover. Only available as kit P/N 605155187
  • 21
    510004377 Upper backrest axle. Only available as kit P/N 605155187
    Upper backrest axle. Only available as kit P/N 605155187
  • 22
    510004379 Washer. Only available as kit P/N 605155187
    Washer. Only available as kit P/N 605155187
  • 23
    510004378 Rubber shim. Only available as kit P/N 605155187
    Rubber shim. Only available as kit P/N 605155187
  • 24
    605354797 L.H. Arm. Only available as kit P/N 605155187
    L.H. Arm. Only available as kit P/N 605155187
  • 25
    605354796 R.H. Arm. Only available as kit P/N 605155187
    R.H. Arm. Only available as kit P/N 605155187
  • 26
    205982586 Socket head screw M8 x 25. Only available as kit P/N 605155187
    Socket head screw M8 x 25. Only available as kit P/N 605155187
  • 27
    40316 Screw M8 x 20. Only available as kit P/N 605155187
    Screw M8 x 20. Only available as kit P/N 605155187
  • 28
    605154593 Cover
    Cover
  • 29
    36036 Rivet
    Rivet
  • 30
    40316 Hex. screw M6 x 16
    Hex. screw M6 x 16
  • 31
    605254706 Seat base
    Seat base
  • 32
    605452035 Lock pin
    Lock pin
  • 33
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 34
    605352460 Foam
    Foam
  • 35
    28413 Gasket
    Gasket
  • 36
    546777 Retainer cable
    Retainer cable
  • 37
    36037 Rivet
    Rivet
  • 38
    36489 Rivet
    Rivet
  • 39
    20009 Washer
    Washer
  • 40
    20052 Lock washer
    Lock washer
