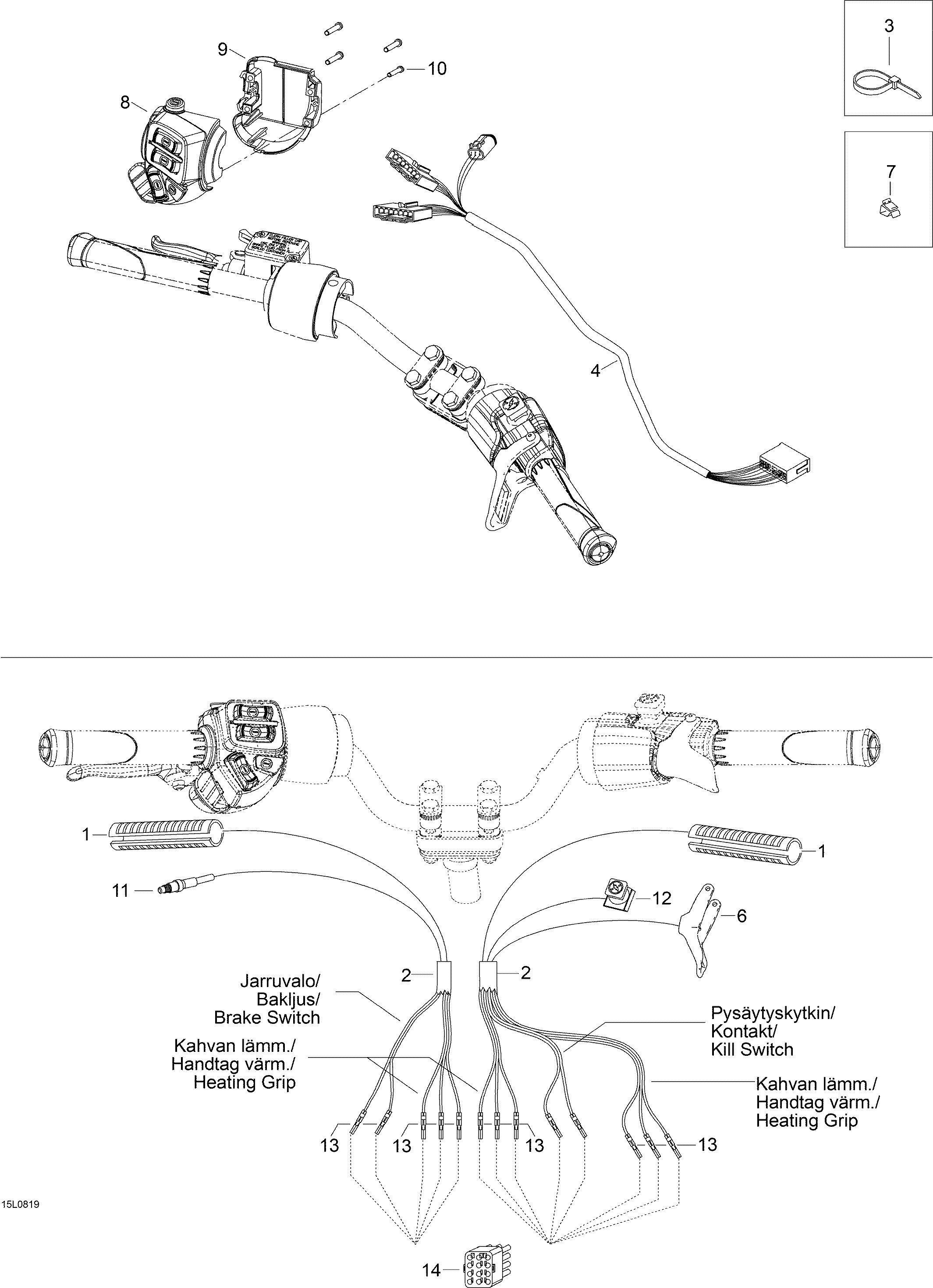

10- Steering Harness для BRP Lynx YETI 600 - 2008
-
№АртикулНазвание
-
1515175657 Heater grip elementHeater grip element
-
239023 TubingTubing
-
327100 Tie-rap 363 mmTie-rap 363 mm
-
4605353266 Steering harnessSteering harness
-
5605354749 Main harnessMain harness
-
6512059107 Throttle handleThrottle handle
-
7414227300 ClipClip
-
8515176015 Switch housingSwitch housing
-
9515175926 Switch housing plateSwitch housing plate
-
1040903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
11507032366 MicroswitchMicroswitch
-
12515175410 Kill switchKill switch
-
1342603 Male connectorMale connector
-
1442617 Male connector housing (15-circuit)Male connector housing (15-circuit)
