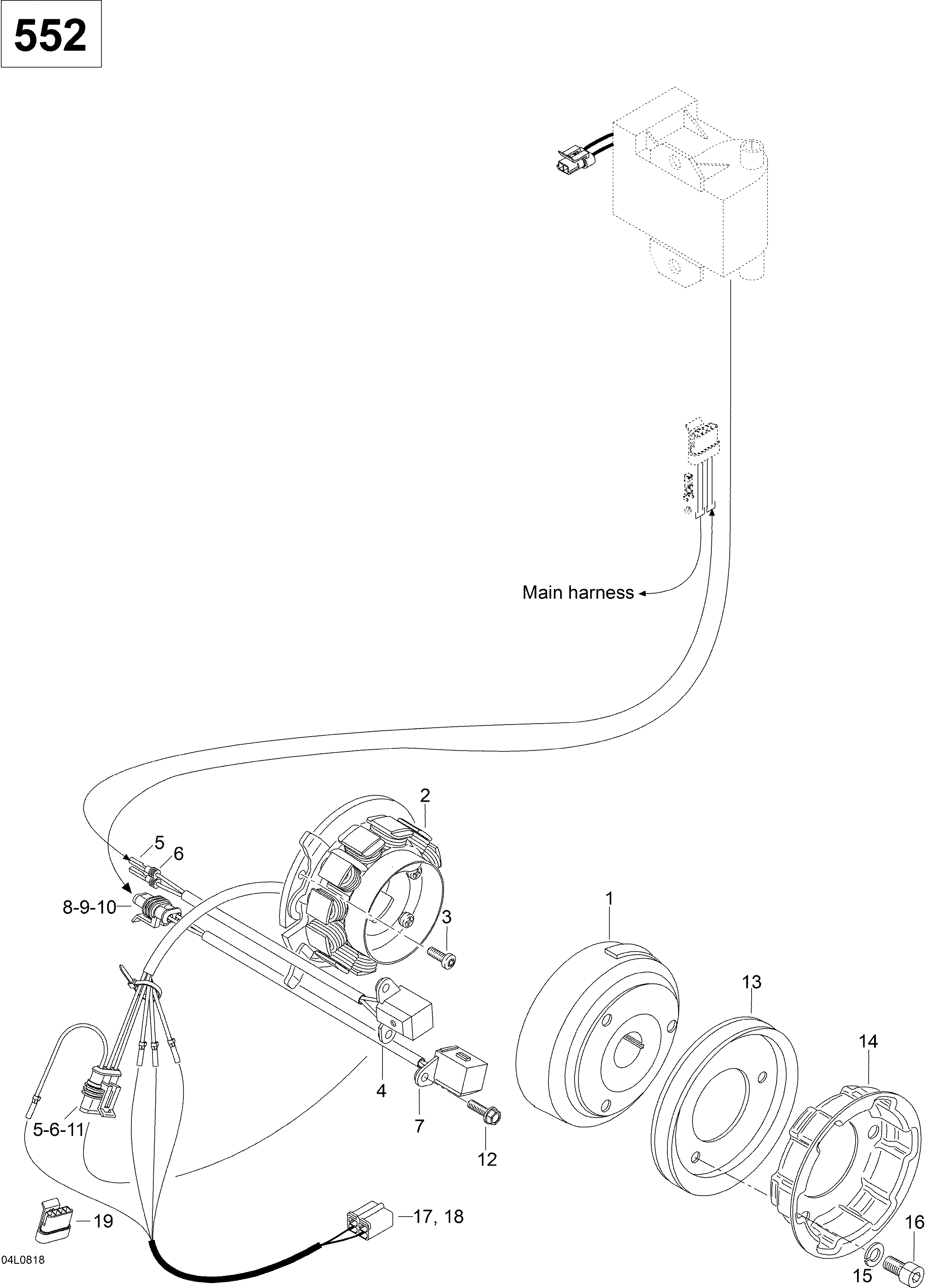

01- Magneto 552 для BRP Lynx YETI 550 - 2008

  • №
    Артикул
    Название
  • -
    420888970 Magneto ass'y 12V/340W. Includes 1 to 2
    Magneto ass'y 12V/340W. Includes 1 to 2
  • 1
    420889376 Magneto flywheel
    Magneto flywheel
  • 2
    420889369 Stator plate ass'y
    Stator plate ass'y
  • 3
    420641521 Torx, allen screw M5 x 16
    Torx, allen screw M5 x 16
  • 4
    420966548 Pick up ass'y for reverse. Includes 4 to 6
    Pick up ass'y for reverse. Includes 4 to 6
  • 5
    278001014 Female terminal
    Female terminal
  • 6
    278001013 Seal
    Seal
  • 7
    420966546 Pick up assy. Includes 7 to 10
    Pick up assy. Includes 7 to 10
  • 8
    409209500 Female terminal housing
    Female terminal housing
  • 9
    278001014 Female terminal
    Female terminal
  • 10
    278001013 Seal
    Seal
  • 11
    409209600 Female terminal housing
    Female terminal housing
  • 12
    420941925 Taptite Screw M5 x 16
    Taptite Screw M5 x 16
  • 13
    420980486 V-belt pulley
    V-belt pulley
  • 14
    420852414 Starting pulley
    Starting pulley
  • 15
    420845311 Lock washer 8 mm
    Lock washer 8 mm
  • 16
    420440852 Torx flange screw M8 x 16
    Torx flange screw M8 x 16
  • 17
    278001473 Male connector housing
    Male connector housing
  • 18
    278001474 Male lock
    Male lock
  • 19
    42618 Male connector housing (4 circuit)
    Male connector housing (4 circuit)
