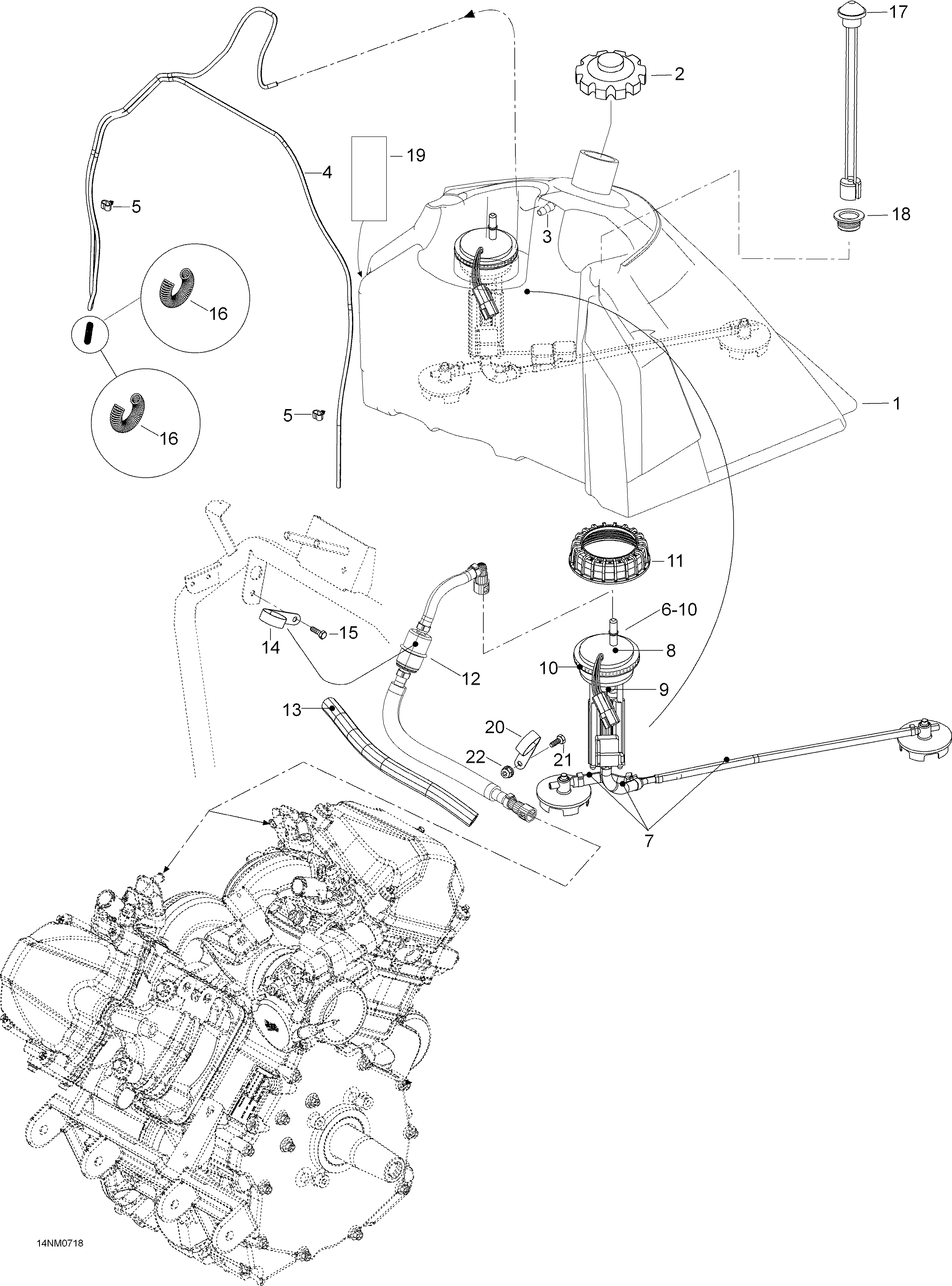

02- Fuel Tank And Fuel Pump для BRP Lynx YETI TUV V-1300 - 2007

-
№АртикулНазвание
-
1605153637 Fuel tankFuel tank
-
2580259400 CapCap
-
319051 Straight fittingStraight fitting
-
439035 HoseHose
-
5513032923 Tube clampTube clamp
-
6605351840 Fuel pump ass'y. Sisaltaa osat 6-10Fuel pump ass'y. Sisaltaa osat 6-10
-
719183 Fuel hose kitFuel hose kit
-
8861302600 Pump kitPump kit
-
9861302100 Regulator kitRegulator kit
-
1019186 GasketGasket
-
11513033040 CoverCover
-
12605353233 Fuel filter + lineFuel filter + line
-
1327127 TubingTubing
-
14513033047 BracketBracket
-
1540327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1625003 SpringSpring
-
17605351982 Fuel gaugeFuel gauge
-
18293720058 GrommetGrommet
-
1944001 Al-protector (1000mm x 1000mm)Al-protector (1000mm x 1000mm)
-
2027092 ClampClamp
-
2140029 Screw M6 x 16Screw M6 x 16
-
2233200 Elastic flanged nut M6Elastic flanged nut M6
