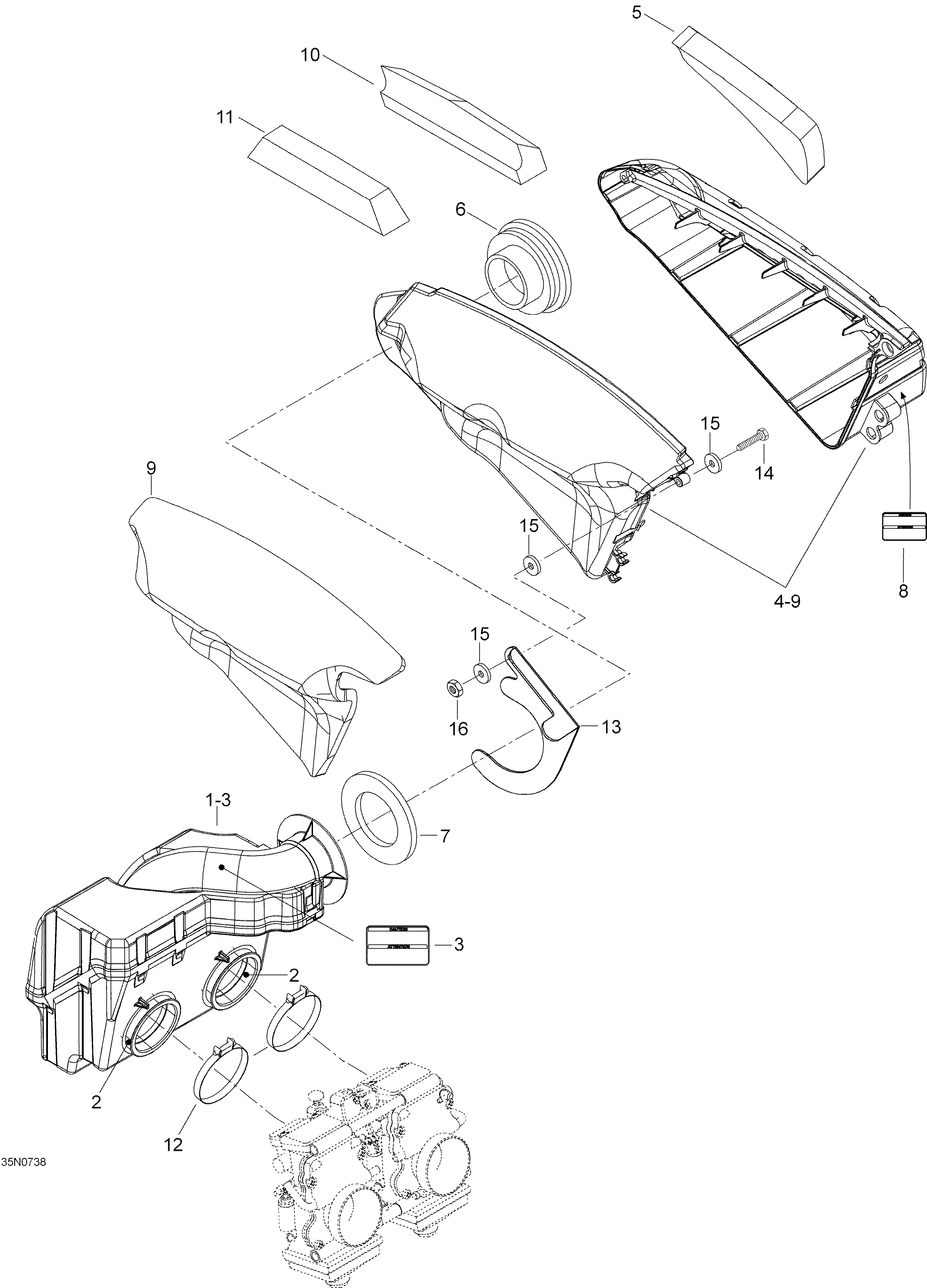

02- Air Silencer для BRP Lynx Rave RE 600HO - 2007
-
№АртикулНазвание
-
1508000379 Primary chamber ass'y. Includes 1 to 3Primary chamber ass'y. Includes 1 to 3
-
2508000132 Air intake adaptorAir intake adaptor
-
3516002715 Caution labelCaution label
-
4508000431 Secondary chamber ass'y. Includes 4 to 9Secondary chamber ass'y. Includes 4 to 9
-
5508000145 Inner foamInner foam
-
6508000240 GuideGuide
-
7508000199 Outer foamOuter foam
-
8516001191 Caution labelCaution label
-
9508000310 Outer foamOuter foam
-
10508000394 Air filterAir filter
-
11605354029 Air filterAir filter
-
12508000346 ClampClamp
-
13605351817 BracketBracket
-
1440083 Hex. screw M6 x 30Hex. screw M6 x 30
-
1520003 Washer A6,4Washer A6,4
-
1633010 Elastic stop nut M6Elastic stop nut M6
