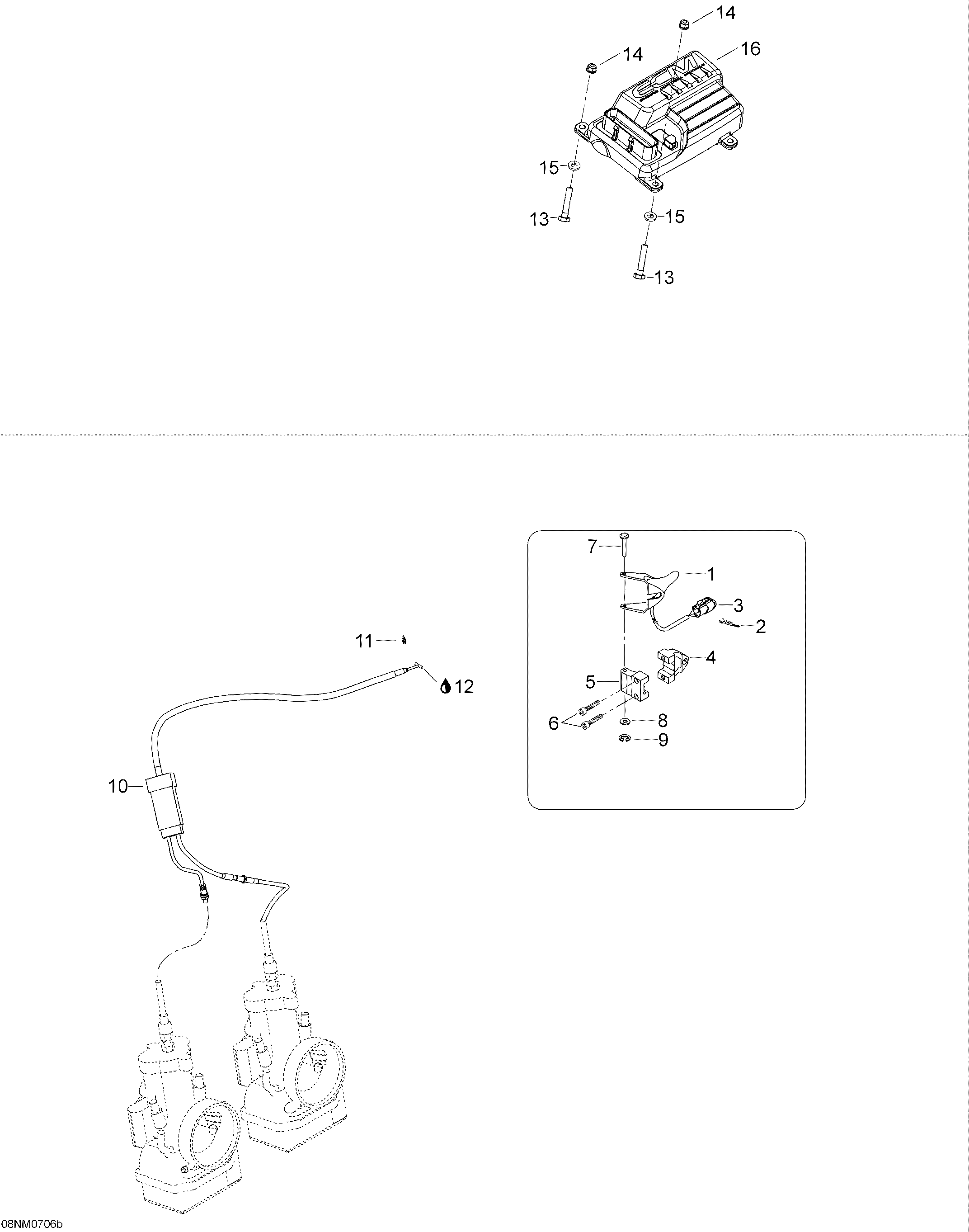

01- Throttle Handle для BRP Lynx Rave RC 440 - 2007

  • №
    Артикул
    Название
  • 1
    512059767 Handle ass'y
    Handle ass'y
  • 2
    42603 Connector
    Connector
  • 3
    42271 Male connector housing
    Male connector housing
  • 4
    512059537 Lower housing
    Lower housing
  • 5
    512059538 Upper housing
    Upper housing
  • 6
    40220 Socket head screw M5 x 25
    Socket head screw M5 x 25
  • 7
    414438700 Pin
    Pin
  • 8
    234051600 Washer
    Washer
  • 9
    414439000 Circlip
    Circlip
  • 10
    512059742 Throttle cable
    Throttle cable
  • 11
    31038 Circlip
    Circlip
  • 12
    293550004 Dielectric grease, 150g
    Dielectric grease, 150g
  • 13
    40381 Socket head screw M6 x 20
    Socket head screw M6 x 20
  • 14
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 15
    20017 Serrated lock washer M6
    Serrated lock washer M6
  • 16
    512060117 Module calib.
    Module calib.
