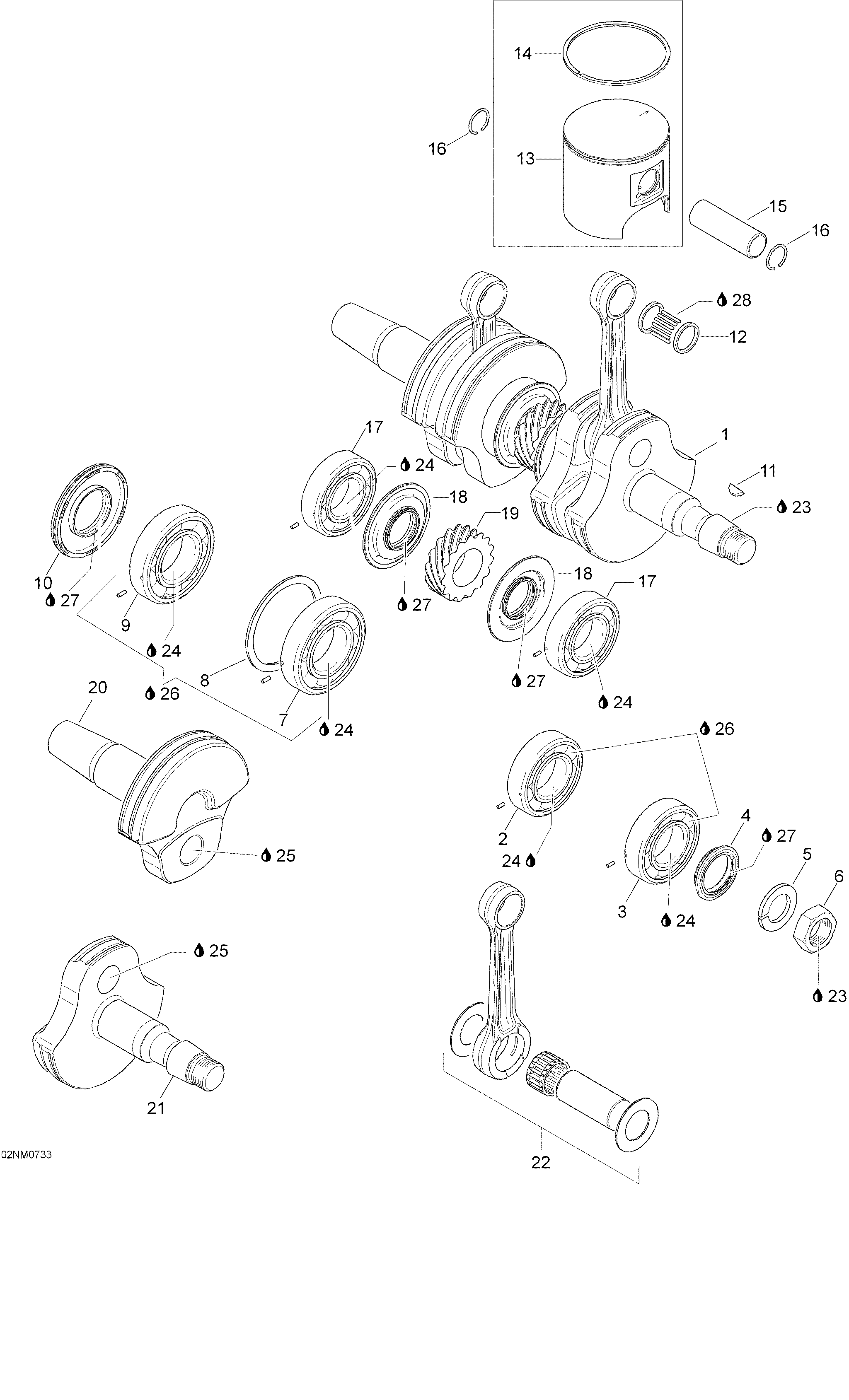

01- Crankshaft для BRP Lynx Adventure GT 600HO SDI - 2007

  • №
    Артикул
    Название
  • 1
    420890950 Crankshaft ass'y. Includes 1 to 10
    Crankshaft ass'y. Includes 1 to 10
  • 2
    420832638 Ball bearing 6207
    Ball bearing 6207
  • 3
    420832575 Ball bearing 6207
    Ball bearing 6207
  • 4
    420931792 Oil seal
    Oil seal
  • 5
    420945759 Lock washer 22 mm
    Lock washer 22 mm
  • 6
    420842230 Hex. nut M22
    Hex. nut M22
  • 7
    420832608 Ball bearing 6207
    Ball bearing 6207
  • 8
    420926190 Retaining disk
    Retaining disk
  • 9
    420832700 Ball bearing 6207
    Ball bearing 6207
  • 10
    420931285 Oil seal
    Oil seal
  • 11
    420246015 Woodruff-key
    Woodruff-key
  • 12
    420832445 Needle bearing
    Needle bearing
  • 13
    420889187 Piston ass'y. Includes 13 to 14
    Piston ass'y. Includes 13 to 14
  • 14
    420815295 Semi-trapez ring 66,6 mm
    Semi-trapez ring 66,6 mm
  • 15
    420916411 Piston pin
    Piston pin
  • 16
    420845106 Piston circlip
    Piston circlip
  • 17
    420832575 Ball bearing 6206
    Ball bearing 6206
  • 18
    420931455 Oil seal
    Oil seal
  • 19
    420834355 Central gear 15 Teeth
    Central gear 15 Teeth
  • 20
    420818709 Crankshaft (PTO-side)
    Crankshaft (PTO-side)
  • 21
    420819232 Crankshaft (MAG-side)
    Crankshaft (MAG-side)
  • 22
    420684653 Rod repair kit (MAG side)
    Rod repair kit (MAG side)
  • 22
    420684654 Rod repair kit (PTO side)
    Rod repair kit (PTO side)
  • 23
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 24
    293800023 Loctite 767, Antiseize lubricant, 454 g
    Loctite 767, Antiseize lubricant, 454 g
  • 25
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 26
    413802900 Klueber Isoflex grease, 400 g
    Klueber Isoflex grease, 400 g
  • 27
    420899271 Grease Petamo Ghy 133N, 400 g
    Grease Petamo Ghy 133N, 400 g
  • 28
    413802900 Injection oil (12 x 1 Liter)
    Injection oil (12 x 1 Liter)
