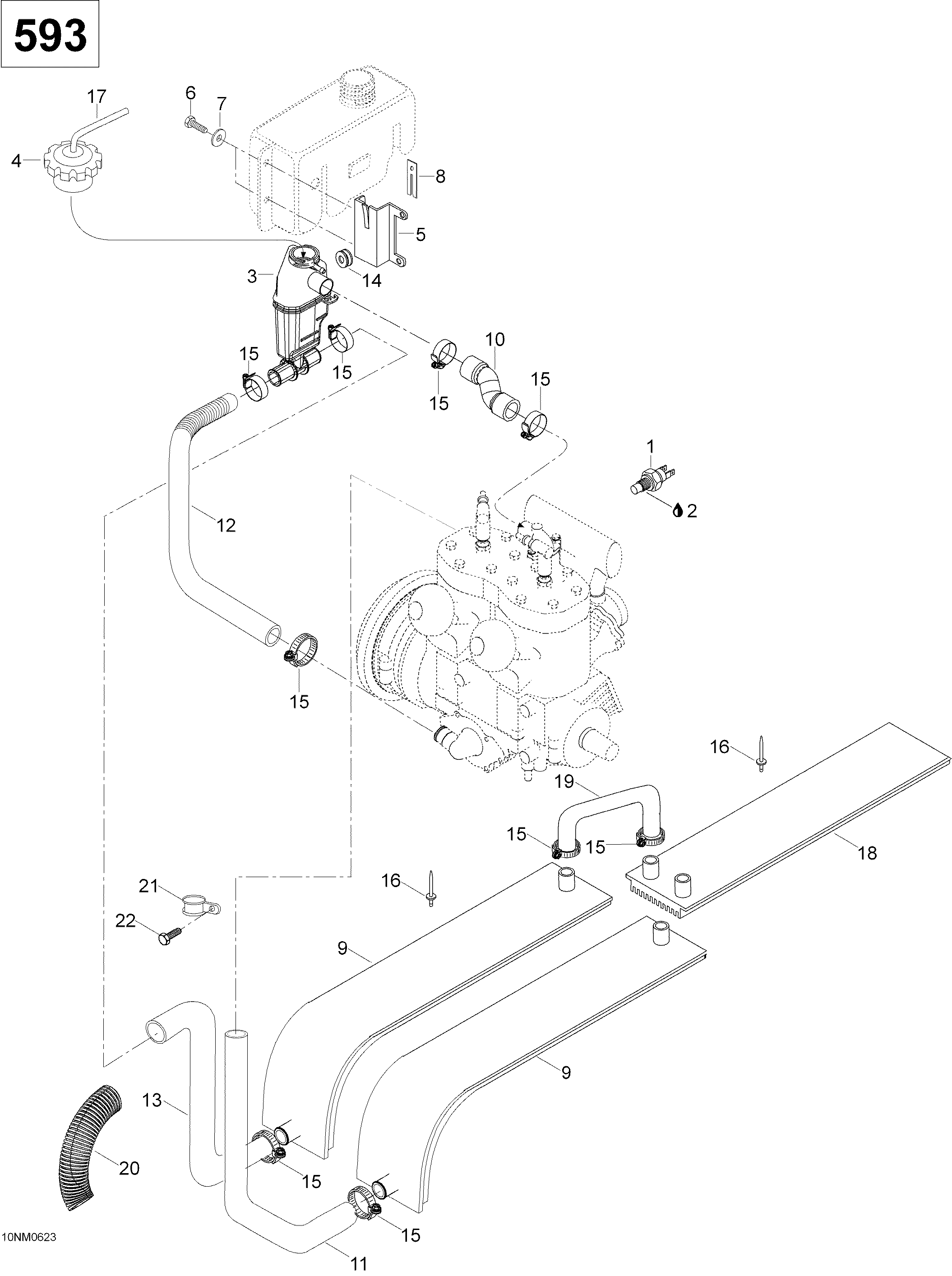

01- Cooling для BRP Lynx ST 600 - 2006

  • №
    Артикул
    Название
  • 1
    512047000 Temp sensor
    Temp sensor
  • 2
    293800018 Loctite 592, 50ml
    Loctite 592, 50ml
  • 3
    509000134 Coolant tank
    Coolant tank
  • 4
    509000187 Cap
    Cap
  • 5
    5347031 Support, coolant tank
    Support, coolant tank
  • 6
    40322 Self tapping screw M6 x 16
    Self tapping screw M6 x 16
  • 7
    20009 Washer A6.4
    Washer A6.4
  • 8
    5447032 Support plate
    Support plate
  • 9
    5146385 R.H. radiator
    R.H. radiator
  • 9
    5146386 L.H. radiator
    L.H. radiator
  • 10
    5348268 Hose, tank->engine
    Hose, tank->engine
  • 11
    5346201 Hose, engine->radiator
    Hose, engine->radiator
  • 12
    5343357 Hose, engine->tank
    Hose, engine->tank
  • 13
    605349198 Hose, tank->radiator
    Hose, tank->radiator
  • 14
    28022 Grommet
    Grommet
  • 15
    27003 Clamp
    Clamp
  • 16
    36108 Rivet
    Rivet
  • 17
    39038 Overflow hose
    Overflow hose
  • 18
    5345916 Back radiator
    Back radiator
  • 19
    5445970 Hose
    Hose
  • 20
    390003 Tubing 1000 mm
    Tubing 1000 mm
  • 21
    27011 Clamp
    Clamp
  • 22
    40327 Hex. screw M6 x 12
    Hex. screw M6 x 12
