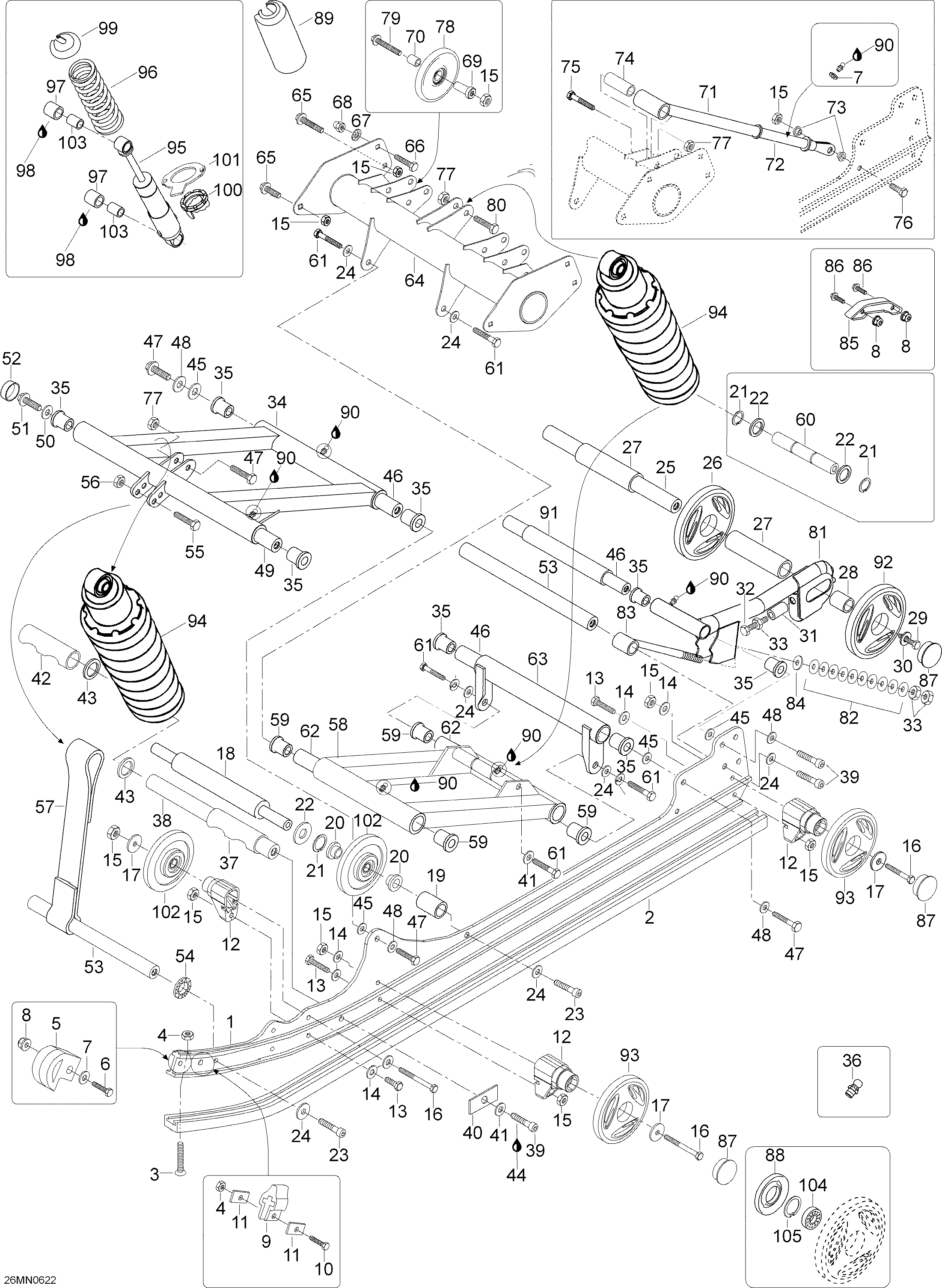

08- Rear Suspension для BRP Lynx ST 550 - 2006

  • №
    Артикул
    Название
  • 1
    5247224 Runner
    Runner
  • 2
    5347724 Shoe runner
    Shoe runner
  • 3
    40059 Socket head screw M6 x 60
    Socket head screw M6 x 60
  • 4
    33010 Elastic stop nut M6
    Elastic stop nut M6
  • 5
    605348954 Runner protector
    Runner protector
  • 6
    40031 Hex. screw M6 x 25
    Hex. screw M6 x 25
  • 7
    20003 Washer A6,4
    Washer A6,4
  • 8
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 9
    5448216 Rubber stopper
    Rubber stopper
  • 10
    40032 Hex. screw M6 x 30
    Hex. screw M6 x 30
  • 11
    548470 Support plate
    Support plate
  • 12
    605450182 Support
    Support
  • 13
    40037 Hex. screw M8 x 25
    Hex. screw M8 x 25
  • 14
    20104 Washer, hardened 8mm
    Washer, hardened 8mm
  • 15
    33011 Elastic stop nuut. M8
    Elastic stop nuut. M8
  • 16
    40089 Hex. screw M8 x 75
    Hex. screw M8 x 75
  • 17
    503183100 Washer 8mm, hardened
    Washer 8mm, hardened
  • 18
    5347950 Axle
    Axle
  • 19
    5447951 Sleeve
    Sleeve
  • 20
    503189534 Insert
    Insert
  • 21
    31007 Circlip
    Circlip
  • 22
    31091 Shim
    Shim
  • 23
    40134 Socket head screw M10 x 45
    Socket head screw M10 x 45
  • 24
    20105 Washer, hardened 10mm
    Washer, hardened 10mm
  • 25
    5343284 Axle
    Axle
  • 26
    503189478 Support wheel 165mm
    Support wheel 165mm
  • 27
    5444096 Sleeve
    Sleeve
  • 28
    5444098 Sleeve
    Sleeve
  • 29
    40050 Hex. screw M10 x 35
    Hex. screw M10 x 35
  • 30
    503183300 Washer, hardened 10mm
    Washer, hardened 10mm
  • 31
    605452332 Sleeve
    Sleeve
  • 32
    40239 Hex. screw M10 x 100
    Hex. screw M10 x 100
  • 33
    33004 Nut M10
    Nut M10
  • 34
    5147672 Front arm
    Front arm
  • 35
    31024 Cushion
    Cushion
  • 36
    34011 Grease nipple
    Grease nipple
  • 37
    5347718 Limiter
    Limiter
  • 38
    5347726 Axle
    Axle
  • 39
    40536 Socket head screw M10 x 45
    Socket head screw M10 x 45
  • 40
    5447940 Support plate
    Support plate
  • 41
    20068 Lock washer
    Lock washer
  • 42
    5346649 Limiter
    Limiter
  • 43
    31013 Shim
    Shim
  • 44
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 45
    20116 Washer
    Washer
  • 46
    5347713 Axle
    Axle
  • 47
    40016 Hex. screw M10 x 45
    Hex. screw M10 x 45
  • 48
    512056700 Lock washer
    Lock washer
  • 49
    605348606 Axle
    Axle
  • 50
    20090 Washer
    Washer
  • 51
    40243 Hex. screw M12 x 60
    Hex. screw M12 x 60
  • 52
    5448025 Cap
    Cap
  • 53
    5347717 Axle
    Axle
  • 54
    4181158 Snap ring
    Snap ring
  • 55
    40008 Hex. screw M8 x 45
    Hex. screw M8 x 45
  • 56
    33011 Elastic stop nut M8
    Elastic stop nut M8
  • 57
    5447961 Stopper strap
    Stopper strap
  • 58
    605349313 Rear arm
    Rear arm
  • 59
    31027 Cushion
    Cushion
  • 60
    605451897 Axle
    Axle
  • 61
    40014 Hex. screw M10 x 40
    Hex. screw M10 x 40
  • 62
    5346865 Axle
    Axle
  • 63
    5347668 Rear arm
    Rear arm
  • 64
    605249988 Upper arm
    Upper arm
  • 65
    40058 Locking screw M8 x 20
    Locking screw M8 x 20
  • 66
    40056 Locking screw M8 x 16
    Locking screw M8 x 16
  • 67
    20072 Lock washer
    Lock washer
  • 68
    33044 Nut M8
    Nut M8
  • 69
    605450372 Sleeve
    Sleeve
  • 70
    605450373 Sleeve
    Sleeve
  • 71
    5347851 Poker shaft
    Poker shaft
  • 72
    5347852 Poker tube
    Poker tube
  • 73
    5447853 Sleeve
    Sleeve
  • 74
    5447848 Cushion
    Cushion
  • 75
    40011 Hex. screw M8 x 60
    Hex. screw M8 x 60
  • 76
    207103544 Hex. screw M10 x 35
    Hex. screw M10 x 35
  • 77
    33012 Elastic stop nut M10
    Elastic stop nut M10
  • 78
    46027 Idler wheel
    Idler wheel
  • 79
    40088 Hex. screw M8 x 70
    Hex. screw M8 x 70
  • 80
    40017 Hex. screw M10 x 50
    Hex. screw M10 x 50
  • 81
    605251780 R.H. Extension
    R.H. Extension
  • 81
    605251779 L.H. Extension
    L.H. Extension
  • 82
    25004 Spring plate
    Spring plate
  • 83
    5447373 Eye bolt adjuster
    Eye bolt adjuster
  • 84
    20011 Washer 10,5mm
    Washer 10,5mm
  • 85
    5343191 Protector
    Protector
  • 86
    40064 Locking screw M6 x 40
    Locking screw M6 x 40
  • 87
    570063600 Protector
    Protector
  • 88
    572089000 Labyrinth sleeve
    Labyrinth sleeve
  • 89
    5346754 Shock protector
    Shock protector
  • 90
    413711500 Synthetic grease
    Synthetic grease
  • 91
    605448429 Sleeve
    Sleeve
  • 92
    503190856 Idler wheel 165mm/Full Moon
    Idler wheel 165mm/Full Moon
  • 93
    503190797 Idler wheel 135mm/Full Moon
    Idler wheel 135mm/Full Moon
  • 94
    605348908 Shock ass'y, front arm. Includes 94 to 100
    Shock ass'y, front arm. Includes 94 to 100
  • 94
    605350647 Shock ass'y, rear arm. Includes 94 to 101
    Shock ass'y, rear arm. Includes 94 to 101
  • 95
    23161 Shock, fron arm
    Shock, fron arm
  • 95
    23152 Shock, rear arm
    Shock, rear arm
  • 96
    25059 Spring, front arm
    Spring, front arm
  • 96
    230079 Spring, rear arm
    Spring, rear arm
  • 97
    31094 Cushion
    Cushion
  • 98
    320006 Glue. Loctite
    Glue. Loctite
  • 99
    230076 Spring seat
    Spring seat
  • 100
    230078 Adjusting cam (front/rear)
    Adjusting cam (front/rear)
  • 101
    605348748 Cam adjuster
    Cam adjuster
  • 102
    503191029 Support wheel 135/black
    Support wheel 135/black
  • 103
    5446652 Sleeve
    Sleeve
  • 104
    405404500 Ball Bearing
    Ball Bearing
  • 105
    371901700 Circlip
    Circlip
