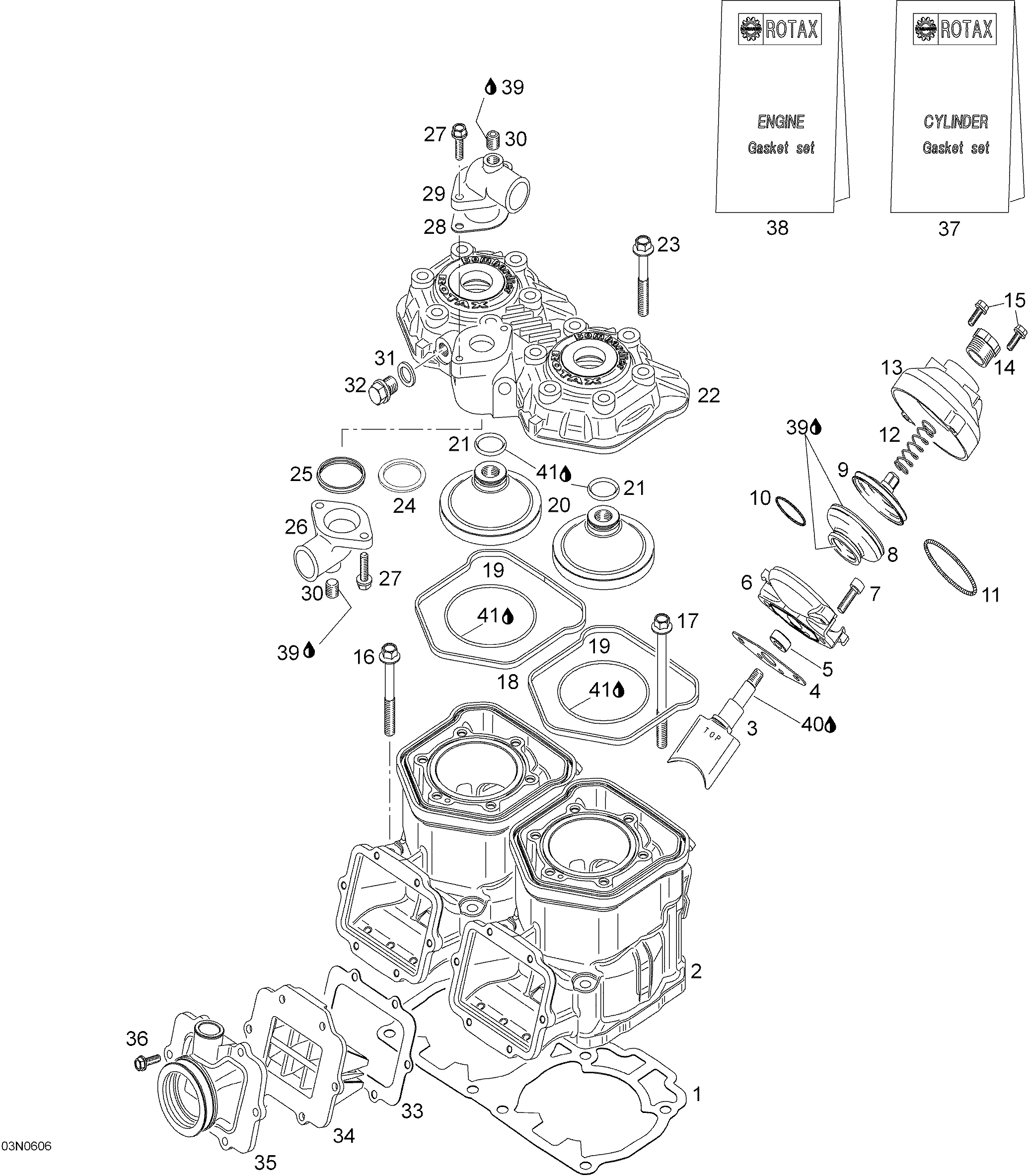

01- Cylinder And Reed Valve для BRP Lynx Rave RC 453 - 2006
-
№АртикулНазвание
-
1420931580 Gasket, double 0.3 mmGasket, double 0.3 mm
-
1420931581 Gasket, double 0.4 mmGasket, double 0.4 mm
-
1420931582 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931583 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931962 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931584 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420923720 Cylinder, nicasilCylinder, nicasil
-
3420854480 Exhaust valveExhaust valve
-
4420250238 GasketGasket
-
5420950730 Oil sealOil seal
-
6420854266 Valve rod housingValve rod housing
-
7420241930 Allen screw M6 x 20Allen screw M6 x 20
-
8420260723 BellowsBellows
-
9420854449 Exhaust valve pistonExhaust valve piston
-
10420838255 Hose springHose spring
-
11420939280 Hose springHose spring
-
12420239948 Spring, greySpring, grey
-
13420911552 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
15420841555 Screw M5 x 20Screw M5 x 20
-
16420640951 Screw M8 x 68.5Screw M8 x 68.5
-
17420940129 Screw M8 x 100Screw M8 x 100
-
18420931595 Square ringSquare ring
-
19420950490 O-ringO-ring
-
20420923877 Combustion chamberCombustion chamber
-
21420430370 O-ringO-ring
-
22420923734 Cylinderhead, redCylinderhead, red
-
23420240326 Screw M8 x 53,5Screw M8 x 53,5
-
24420927745 Retaining diskRetaining disk
-
25420931272 Thermostat gasketThermostat gasket
-
26420922061 Water outlet socketWater outlet socket
-
27420941250 Screw M6 x 20Screw M6 x 20
-
28420850338 GasketGasket
-
29420922062 Bent outlet socketBent outlet socket
-
30420240480 Plug screwPlug screw
-
31420250015 Sealing ringSealing ring
-
32420841921 Plug screwPlug screw
-
33420630810 GasketGasket
-
34420924810 Support assySupport assy
-
35420667078 Intake socketIntake socket
-
36420241270 Screw M5 x 25Screw M5 x 25
-
37420888637 Gasket set, cylinderGasket set, cylinder
-
38420888633 Gasket set, engineGasket set, engine
-
39420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
40711297433 Molykote G-N, 50 gMolykote G-N, 50 g
-
41413707000 Molykote 111Molykote 111
