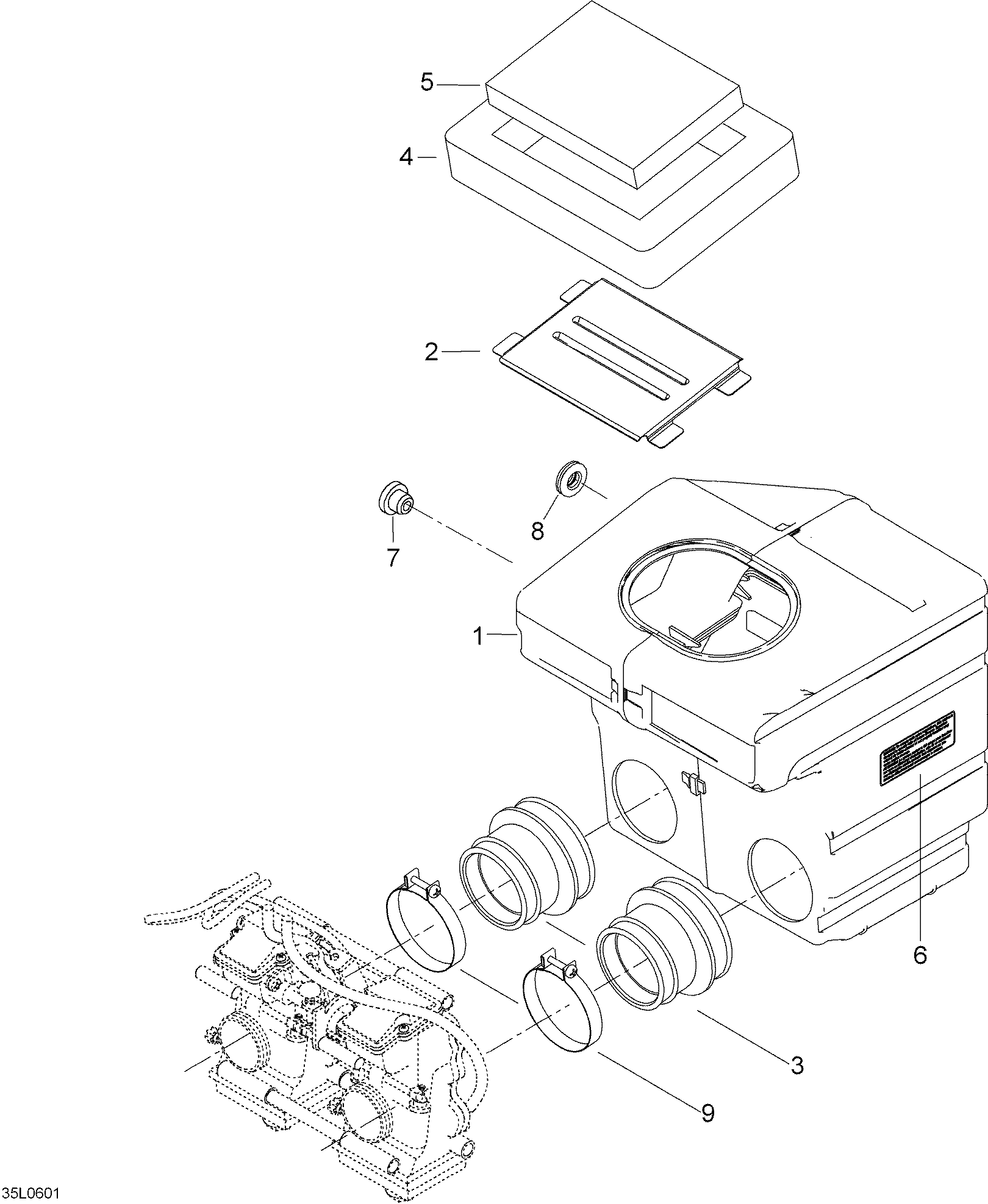

02- Air Silencer для BRP Lynx Ranger 600 - 2006
-
№АртикулНазвание
-
1508000391 Air intake ass'y. Includes 1 to 8Air intake ass'y. Includes 1 to 8
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
927046 ClampClamp
