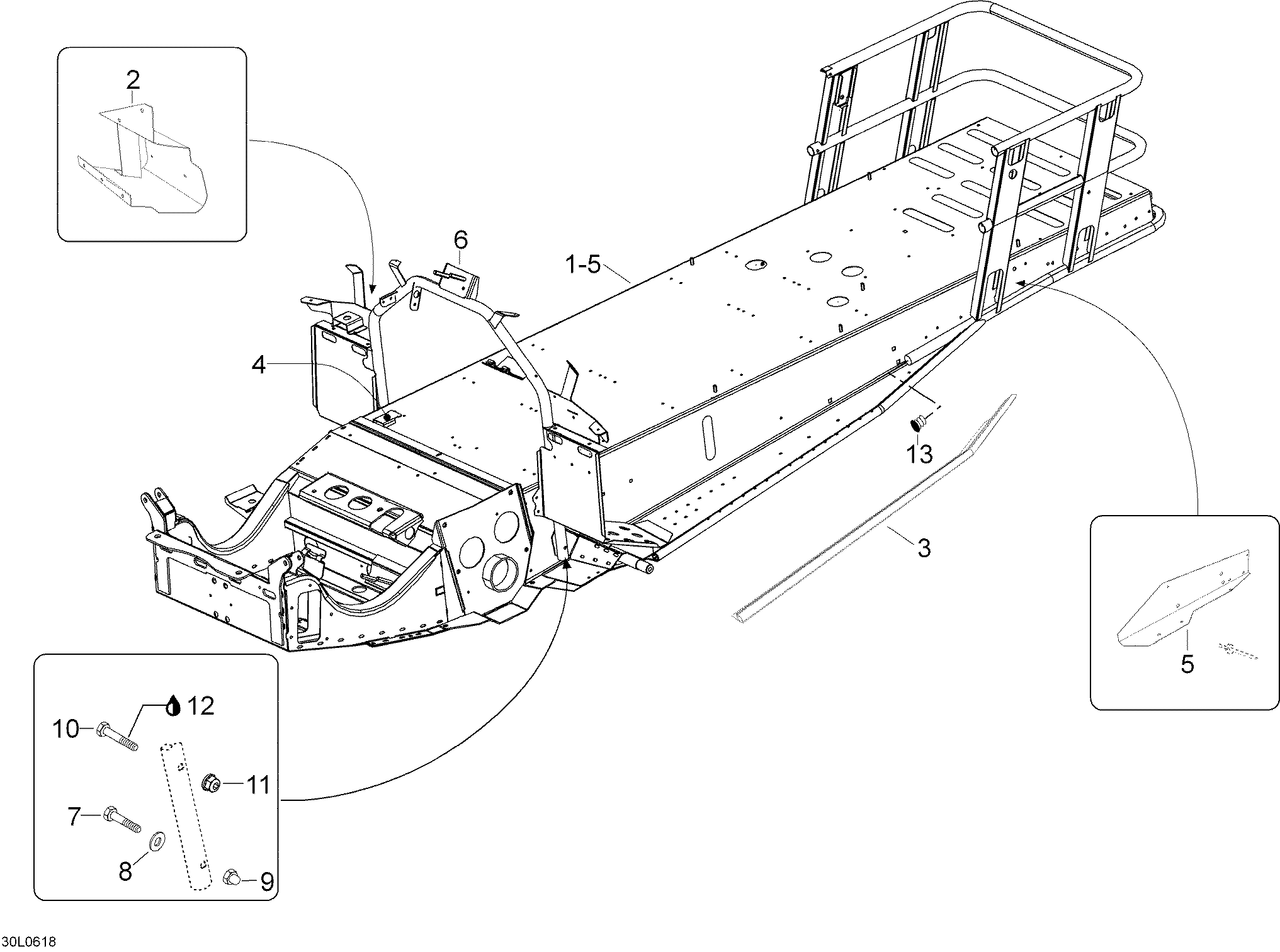

09- Frame для BRP Lynx Expedition TUV V-1300 - 2006

  • №
    Артикул
    Название
  • 1
    605154456 Frame ass'y. Includes 1 to 5
    Frame ass'y. Includes 1 to 5
  • 2
    605350839 R.H. Footrest
    R.H. Footrest
  • 2
    605350840 L.H. Footrest
    L.H. Footrest
  • 3
    605250773 L.H. Support
    L.H. Support
  • 3
    605250774 R.H. Support
    R.H. Support
  • 4
    605351505 Bracket
    Bracket
  • 5
    605350845 L.H. Bracket
    L.H. Bracket
  • 5
    605350846 R.H. Bracket
    R.H. Bracket
  • 6
    605150605 Steering support
    Steering support
  • 7
    40003 Hex. screw M6 x 35
    Hex. screw M6 x 35
  • 8
    20003 Washer A6,4
    Washer A6,4
  • 9
    33051 Nut M6
    Nut M6
  • 10
    40002 Hex. screw M6 x 40
    Hex. screw M6 x 40
  • 11
    33200 Elastic flanged nut M6
    Elastic flanged nut M6
  • 12
    293800060 Loctite 243 10ml
    Loctite 243 10ml
  • 13
    28210 Plug
    Plug
