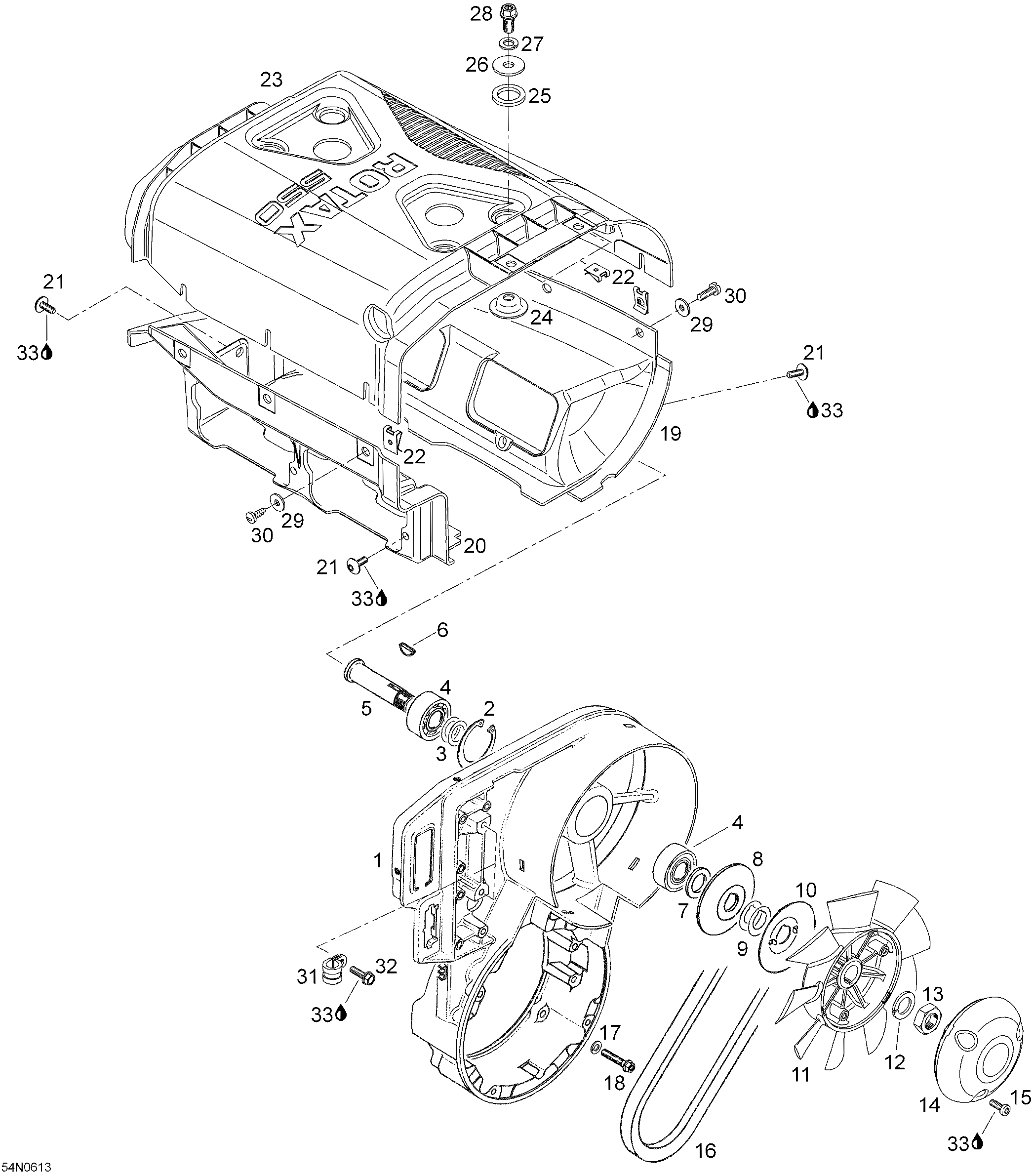

01- Fan and Fan Housing для BRP Lynx Adventure LX 550 F - 2006

№

Артикул

Название
1

420912203 Fan housing

Fan housing
2

420945880 Retaining ring

Retaining ring
3

420244585 Shim

Shim
4

420832161 Bearing

Bearing
5

420937940 Shaft

Shaft
6

420246015 Key

Key
7

420827650 Distance sleeve

Distance sleeve
8

420980496 Belt disk

Belt disk
9

420827080 Adj.washer 0.5

Adj.washer 0.5
9

420827082 Adj.washer 0.2

Adj.washer 0.2
10

420980523 Protection washer

Protection washer
11

420866294 Fan

Fan
12

420945756 Spring washer

Spring washer
13

420942285 Nut

Nut
14

420975900 Fan cover

Fan cover
15

420841971 Screw 5.5 x 16

Screw 5.5 x 16
16

420980511 V-belt

V-belt
17

420945751 Spring washer

Spring washer
18

420440642 Torx-screw M6 x 30

Torx-screw M6 x 30
19

420811392 Lower cowl (exhaust)

Lower cowl (exhaust)
20

420812600 Lower cowl, intake side

Lower cowl, intake side
21

420640321 Taptite screw M6 x 16

Taptite screw M6 x 16
22

417300005 Sping nut

Sping nut
23

420812595 Upper case

Upper case
24

420827817 Cup washer

Cup washer
25

420960865 Rubber washer

Rubber washer
26

420227935 Washer

Washer
27

420945752 Lock washer

Lock washer
28

420440852 Screw M8 x 16

Screw M8 x 16
29

420926185 Washer

Washer
30

420841490 Selftapping screw

Selftapping screw
31

420851250 Wire clamp

Wire clamp
32

420941925 Taptite screw M5 x 20

Taptite screw M5 x 20
