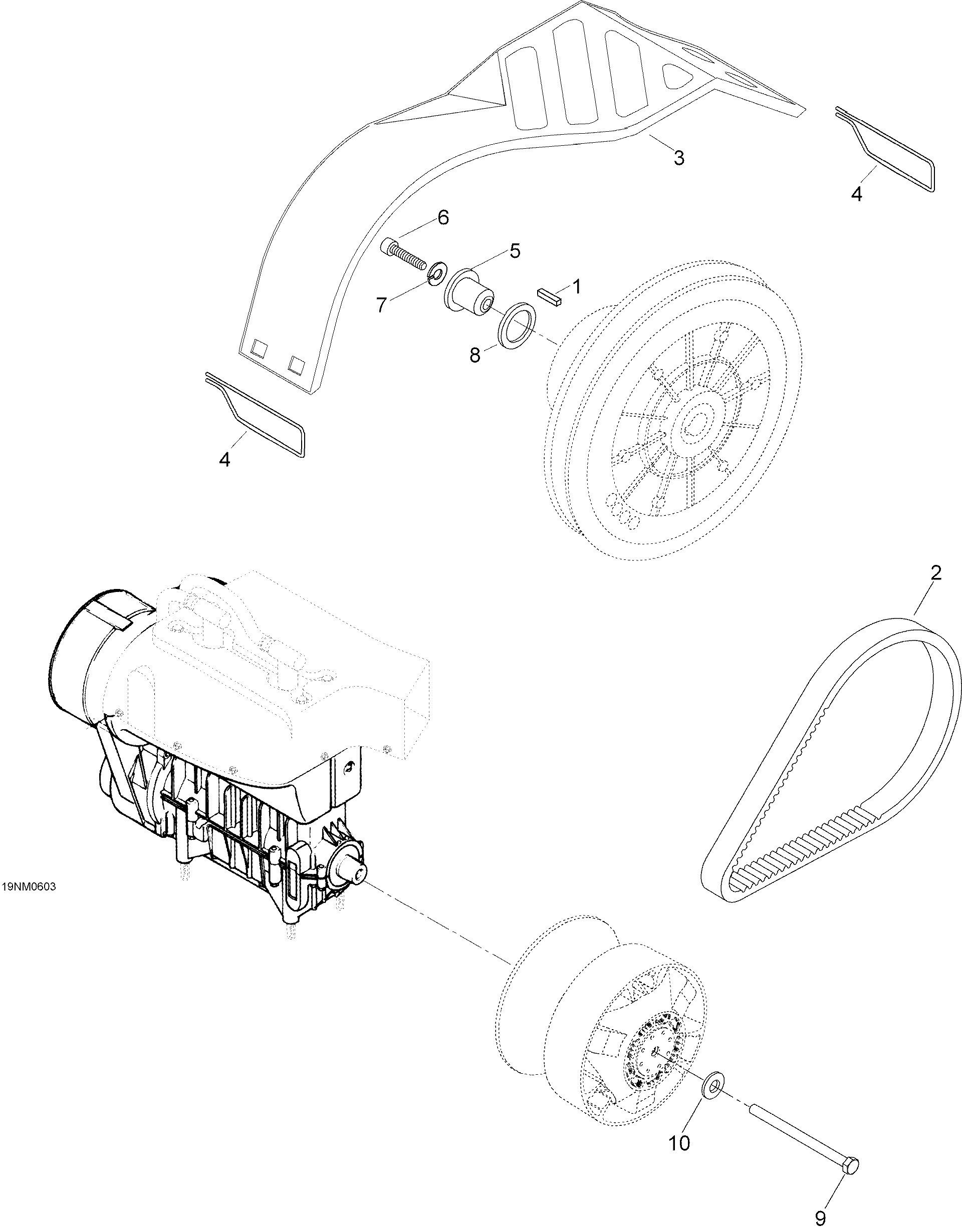

05- Pulley System для BRP Lynx GLX 6900 - 2006
-
№АртикулНазвание
-
1418763 KeyKey
-
2414633800 Drive beltDrive belt
-
35142660 Belt quardBelt quard
-
45442726 PinPin
-
55443765 SleeveSleeve
-
640290 Socket head screw M8 x 55Socket head screw M8 x 55
-
720014 Lock washer A8Lock washer A8
-
83125351 ShimShim
-
9417113800 ScrewScrew
-
1020090 Lock washerLock washer
